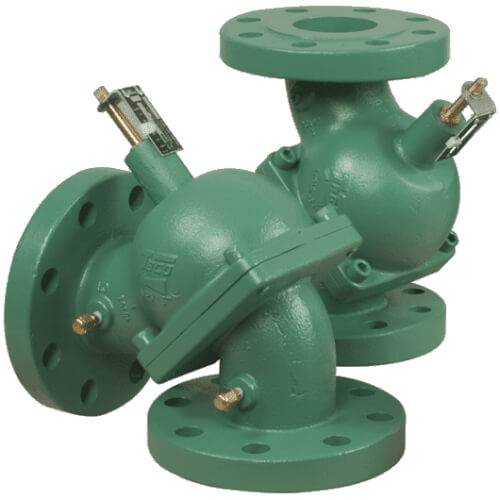

Taco MPV040-4 Multi-Purpose Valve

Product Description

The Taco MPV040-4 is a versatile multi-purpose valve designed for use in hydronic heating and cooling systems. This four-inch flanged valve combines various functions needed on the discharge side of a centrifugal pump into one unit. It operates as a shut-off valve, non-slam check valve, balancing valve, and flow metering valve. The valve can easily be converted from a straight pattern to a right angle pattern in the field.

• Horizontal or vertical installation flexibility.
• Field convertible to a right angle valve.
• Stem seal packing that can be replaced under full system pressure.

Product Highlights

Utilizing bronze fitted construction, the Taco MPV040-4 provides low pressure drops, making it competitive against other valves on the market. With additional features like a memory indicator, pointer, and scale, this valve supports precise flow measurement.

Product Information

Standard Information

• Brand: Taco
• Part Number: MPV040-4

Technical Specifications

• Size: 4 inches
• Connection Type: Flanged x Flanged
• Flow Capacity (Cv): 357
• Weight: 67 lbs
• Shipping Dimensions: 15 inches x 15 inches x 14 inches
