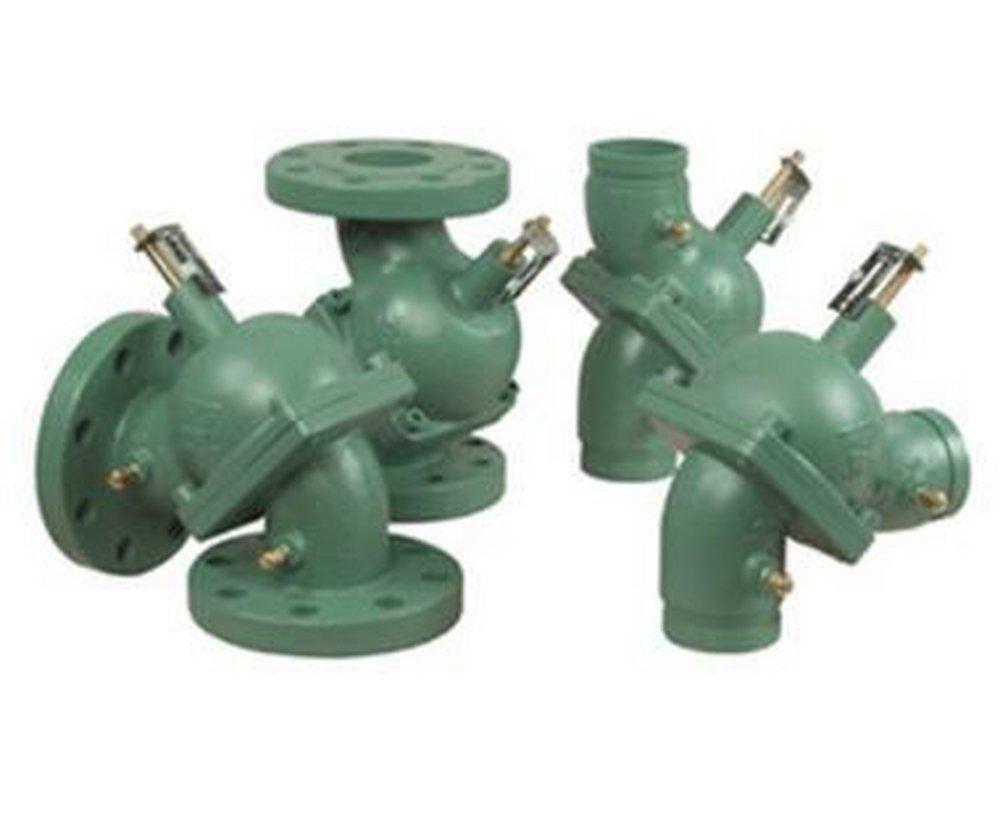

Taco MPV025-4 2-1/2 in Thread Mult-Purpose Valve

Product Description

The Taco MPV025-4 2-1/2 in Thread Mult-Purpose Valve is engineered for versatility, reliability, and performance. This valve is designed to offer superior flow control in various industrial applications.

• 2-1/2 NPT female threaded connection
• Triple duty design for multiple applications
• Brass body and stainless steel spring

Product Highlights

This valve combines the functions of a shut-off valve, non-slam check valve, balancing valve, and flow metering valve, all in one body. It features a field-convertible design and is built to ensure low pressure drops, enhancing system efficiency and reliability.

Product Information

Standard Information

• Brand: Taco
• Item Number: MPV025-4

Technical Specifications

• Size: 2-1/2 inches
• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 122
• Maximum Working Pressure: 300 psi
• Temperature Range: 32°F to 220°F
• Body Material: Brass
• Spring Material: Stainless steel
• Weight: 20.49 lbs
• Length: 8.65 inches
• Width: 12.35 inches
• Height: 9.15 inches
