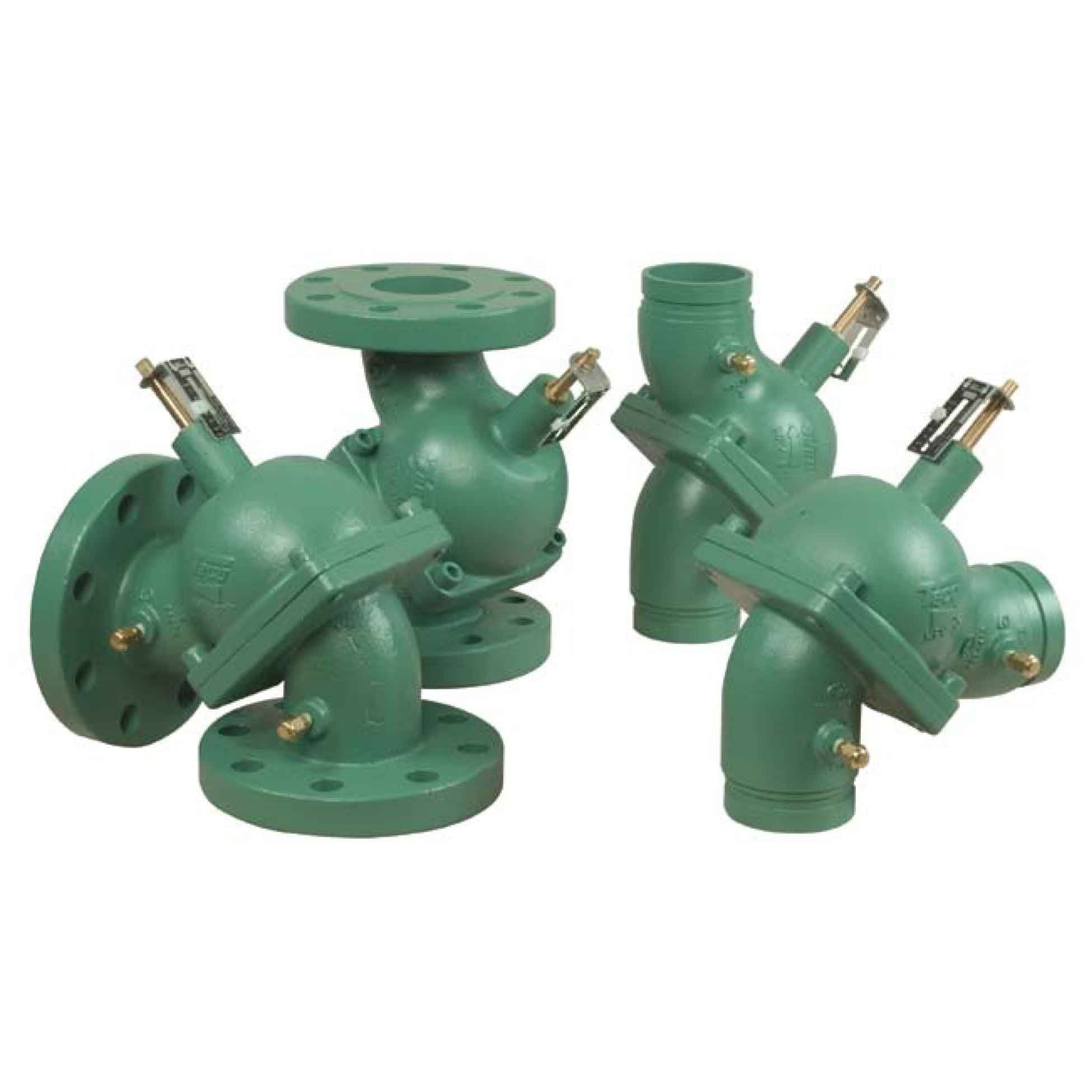

Taco MPV015-4 Triple Duty Valve 1-1/2

Product Description

The Taco MPV015-4 is a multi-purpose valve designed for use in hydronic heating and cooling applications. This valve features a one and a half inch NPT connection and can handle pressures up to one hundred twenty-five psi. It functions as a shut-off valve, a non-slam check valve, a balancing valve, and a flow metering valve.

• Multi-purpose functionality in a single unit.
• Converts from a straight pattern to a 90-degree angle.
• Suitable for hot water and water applications.

Product Highlights

This valve combines essential functions required on the discharge side of a centrifugal pump into one body, improving efficiency in hydronic systems.

Product Information

Standard Information

• Brand: Taco
• MPN: MPV015-4

Technical Specifications

• Valve Size: 1-1/2
• Valve Connection: NPT
• Piping Configuration: Horizontal, Vertical
• Body Material: Ductile Iron
• Valve Application: Hot Water, Water
• Max Pressure: 125 psi WSP
• Max Temperature: 250°F
• Weight: 12.00 lbs
