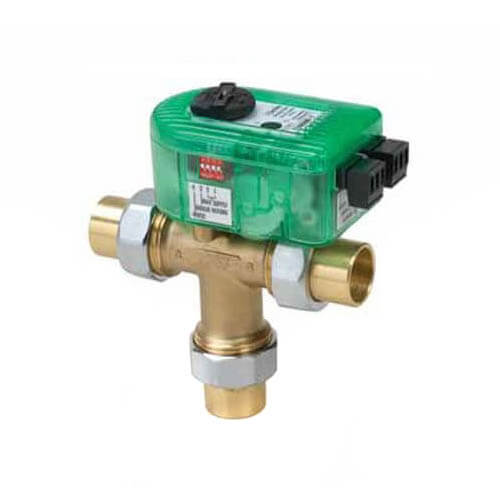

Taco i100T3S-1 i-Series Mixing Valve 3 Way - 1 Inch Threaded - Setpoint

Product Description

Taco presents the i100T3S-1 i-Series Mixing Valve. This valve is designed for heating systems that require precise temperature control. The microprocessor-based actuator effectively regulates the flow of heated water. It can modulate two-way, three-way, or four-way valve systems.

• Temperature setpoint adjustable from eighty degrees Fahrenheit to one hundred eighty degrees Fahrenheit
• Directly replaces thermostatic mixing valves for enhanced functionality
• Easy installation with plug-in wiring connections and removable actuator

Product Highlights

The Taco i100T3S-1 offers advanced temperature management and boiler protection. It is suitable for various heating scenarios.

Product Information

Standard Information

• Brand: Taco
• Product Type: Valve

Technical Specifications

• MPN: i100T3S-1
• Weight: 2.165 lbs
• Shipping Dimensions: 6.8 inches depth x 5.3 inches width x 3.1 inches height
• Temperature Range: 80 degrees Fahrenheit - 180 degrees Fahrenheit
• Max Pressure: 125 PSI
• Connection Type: FNPT x FNPT
• Body Pattern: 3-Way
