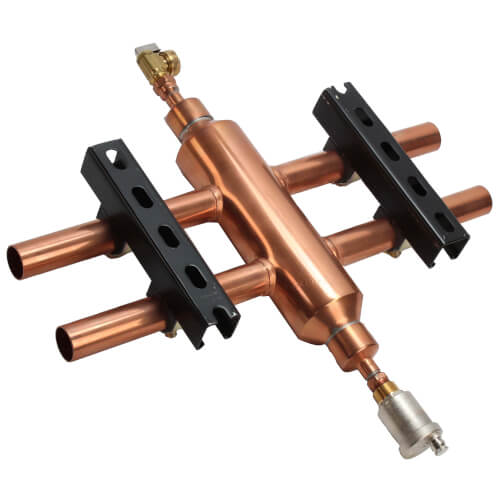

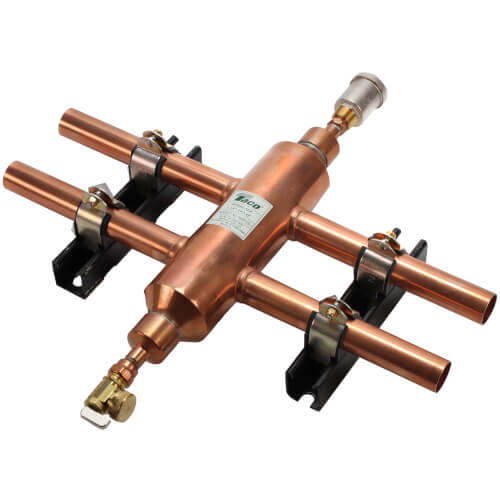

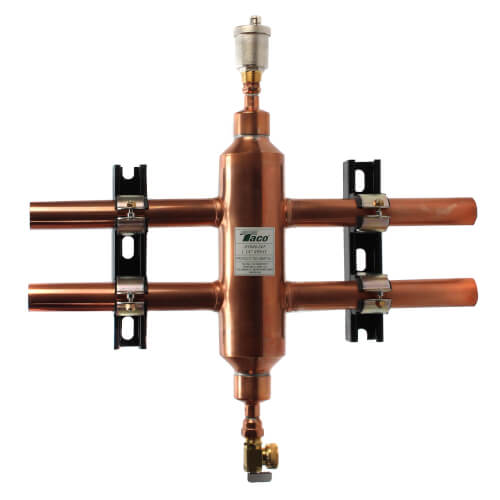

Taco HSEP125-1 Hydraulic Separator 1 1/4 Inch

Product Description

The Taco HSEP125-1 Hydraulic Separator optimizes hydronic heating system efficiency by separating air and dirt from water. Ideal for modern boilers with higher flow resistance, it supports an efficient installation of primary/secondary piping. This separator is suitable for water or glycol media up to a 50% concentration.

• Compact design maximizes space efficiency.
• Constructed with high-quality copper and brass valves for durability.
• Equipped with an automatic Taco Hy-Vent to relieve air.

Product Highlights

Noteworthy for its small footprint, the Taco HSEP125-1 supports multiple flow and temperature configurations, enhancing boiler operation and system longevity by preventing air and sediment accumulation.

Product Information

Standard Information

• Brand: Taco
• MPN: HSEP125-1

Technical Specifications

• Type: Hydraulic Separator
• Media: Water or Glycol up to 50%
• Material: Copper
• Connection Type: Sweat
• Flow Rate: 15 GPM
• Max Temp (F): 240 degrees Fahrenheit
• Max Pressure (PSI): 350
• Number of Outlets: 4
