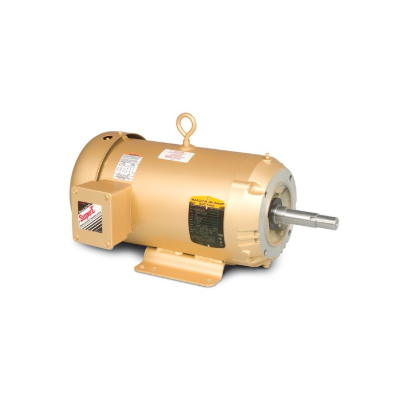

Taco C730D Motor 3 HP

Product Description

The Taco C730D is a three horsepower motor specifically designed for TACO Comfort Solutions pumps. This motor operates at either one thousand seven hundred fifty or one thousand eight hundred RPM with a three-phase configuration, making it suitable for various applications.

• Horsepower: 3 HP
• Speed: 1750 or 1800 RPM
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)

Product Highlights

The C730D motor features a robust construction and is compatible with voltages of two hundred eight to two hundred thirty or four hundred sixty volts at a frequency of sixty hertz. The TEFC enclosure is designed to operate efficiently in ambient temperatures up to forty degrees Celsius. Additional features include AEGIS shaft grounding for added protection.

Product Information

Standard Information

• Brand: Taco
• Manufacturer Part Number: C730D

Technical Specifications

• Horsepower: 3 HP
• RPM: 1750 or 1800
• Voltage: 208-230/460V
• Frequency: 60Hz
• Phase: 3-Phase
• Enclosure Type: TEFC
• Frame Size: 182JM
• Motor Type: TEFC / AEGIS
• Motor Feet: With feet
• Connection Size: 2.5 x 2 inches
• Impeller Diameter: 7.25 inches
• Material: Cast Iron
