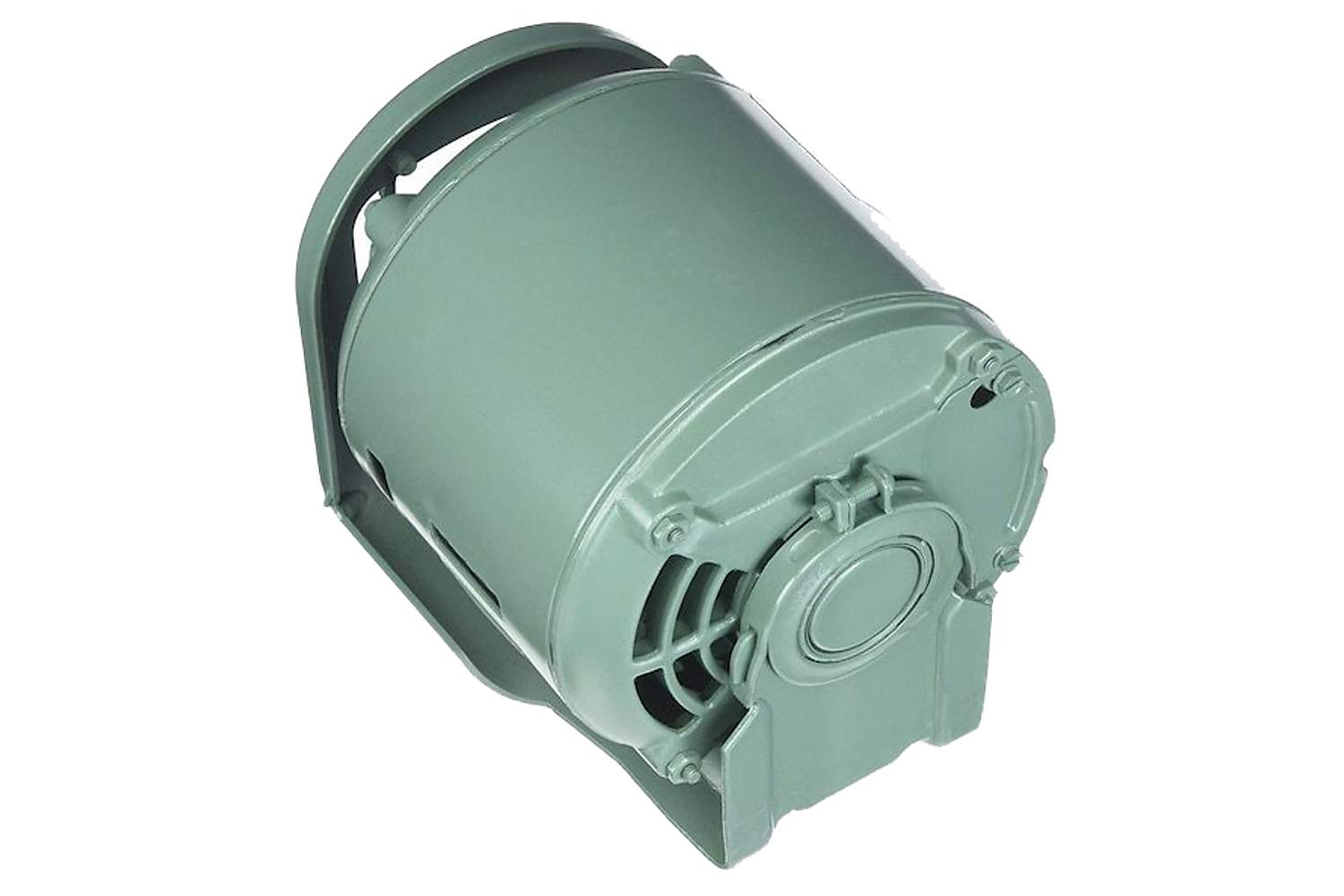

TACO C728D 1.5 HP TEFC 145JM Motor

Product Description

The TACO C728D is a 1.5 HP motor built for Taco Comfort Solutions pumps. This 3-phase motor features a Totally Enclosed Fan Cooled (TEFC) design, ensuring protection from external conditions. It operates at a voltage of 208-230/460V and a frequency of 60Hz, delivering a speed of 1750 RPM. The motor can withstand operating temperatures up to forty degrees Celsius. It also includes AEGIS shaft grounding, conforming to MG1-12.55 standards, and employs an across-the-line starting method.

• Horsepower: 1.5 HP
• Enclosure Type: TEFC
• Shaft Grounding: AEGIS compliant

Product Highlights

This motor is ideal for HVAC applications, providing reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Taco
• Part Number: E0015N1D3D2M1AD

Technical Specifications

• Model: C728D
• Horsepower: 1.5
• RPM: 1750
• Voltage: 208-230/460V
• Hertz: 60Hz
• Phase: 3-Phase
• Enclosure Type: TEFC
• UPC: 687752975895
• Motor Frame Size: 145JM
• Motor Type: TEFC / AEGIS
• Motor Efficiency: Premium
• Connection Size: 1.5 x 1.5
