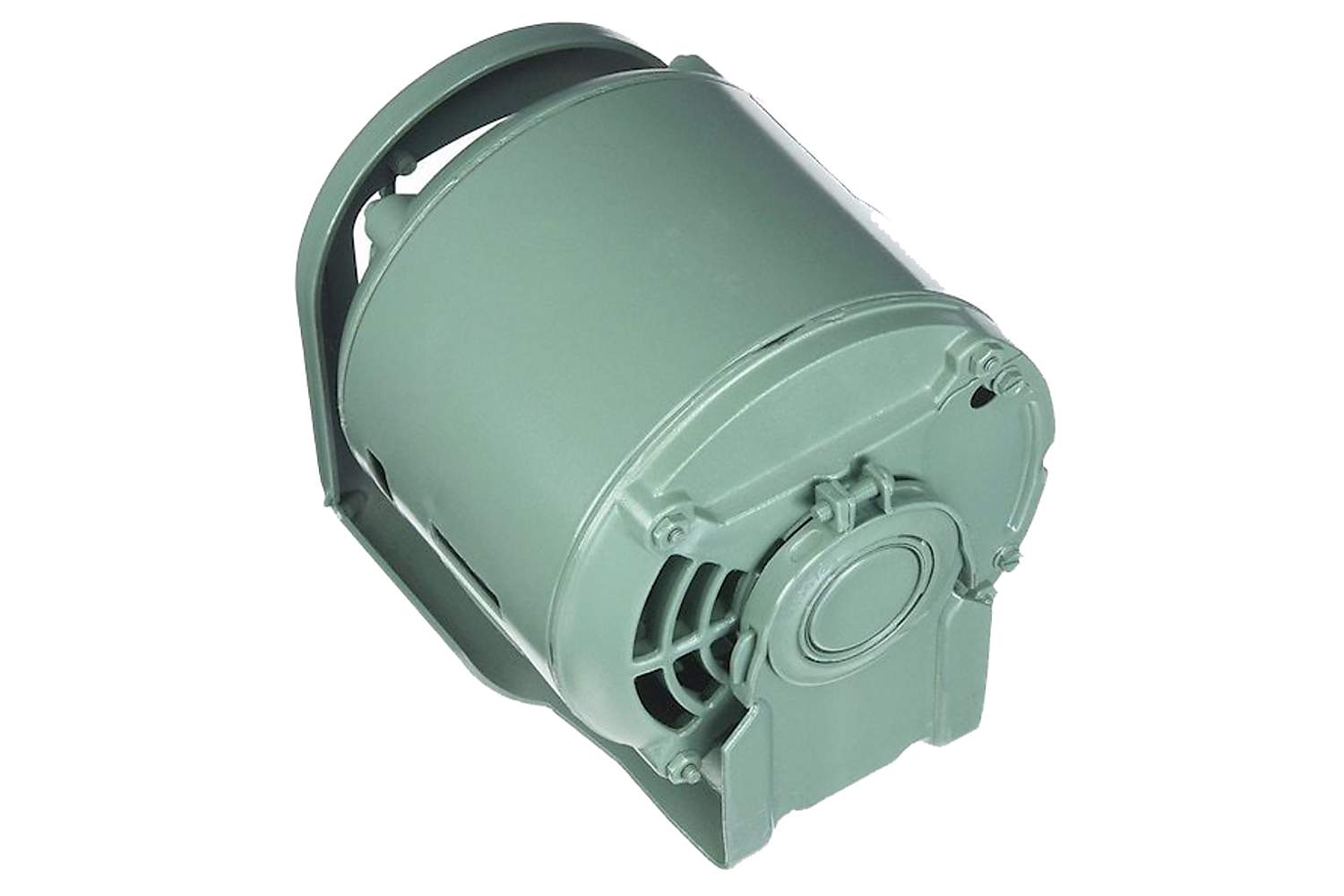

TACO B1940D 5 HP ODP Motor

Product Description

The TACO B1940D is a five horsepower motor optimized for use with Taco Comfort Solutions pumps. This motor runs at seventeen hundred fifty RPM and operates on a voltage of two hundred eight to two hundred thirty or four hundred sixty volts, with a frequency of sixty hertz. It features a three-phase design and an Open Drip Proof (ODP) enclosure which provides protection against dust and moisture.

• Horsepower: 5 HP
• Speed: 1750 RPM
• Enclosure: Open Drip Proof (ODP)

Product Highlights

The TACO B1940D motor is built reliably for various pumping applications. Its frame size is 184T and it has a service factor of 1.15. The motor rotates counterclockwise when viewed from the shaft end and includes AEGIS shaft grounding for enhanced performance. It meets MG1-12.55 standards.

Product Information

Standard Information

• Manufacturer: Taco
• Part Number: E0050N1D3F1T1AD

Technical Specifications

• Model: B1940D
• Horse Power: 5 HP
• RPM: 1750 RPM
• Voltage: 208-230/460V
• Frequency: 60Hz
• Phase: 3-Phase
• Enclosure Type: ODP
• UPC: 687752966152
