Product Description

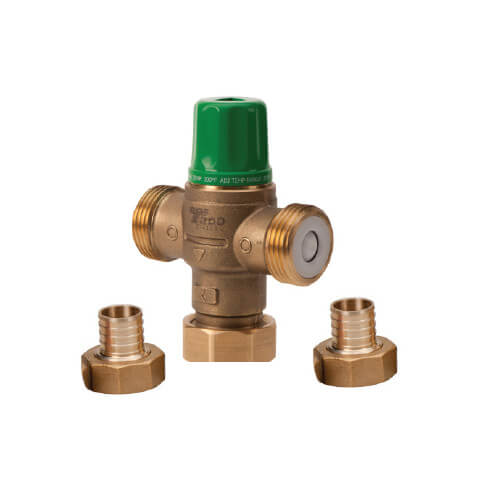

Taco 5122-P2 mixing valve features a brass body and 1/2 inch PEX union connections. This valve is suitable for a variety of domestic hot water applications. An integral thermostatic element ensures accurate water temperature regulation. Designed for potability, it handles supply temperatures up to 180 degrees Fahrenheit and is certified by ASSE 1017. The valve's temperature control can be locked to prevent fluctuations.
- Lead-Free Compliant
- Suitable for Use in Potable Water
- No Routine Maintenance Required
Product Highlights
Ideal for applications like domestic hot water and point of distribution. The 5122-P2 valve has a lockable maximum temperature setting and comes with an outlet temperature strip.
Product Information
Standard Information
-
Brand: Taco
-
Model: 5122-P2
-
Category: Heating Supplies & Parts, Mixing Valves
Technical Specifications
-
Size: 1/2 inch
-
Material: Forged Brass
-
Weight: 2.8 pounds
-
Lead Free: Yes
-
Application: Point of Source, Point of Use
-
Body Pattern: 3-Way
-
Standards Met: ASSE 1070, ASSE 1017
-
Max Flow: 14 GPM
-
Connection Type: PEX Crimp x PEX Crimp
-
Connection Method: PEX
-
Flow Capacity: 1.8 Cv
-
Max Pressure: 200 PSI
