Product Description

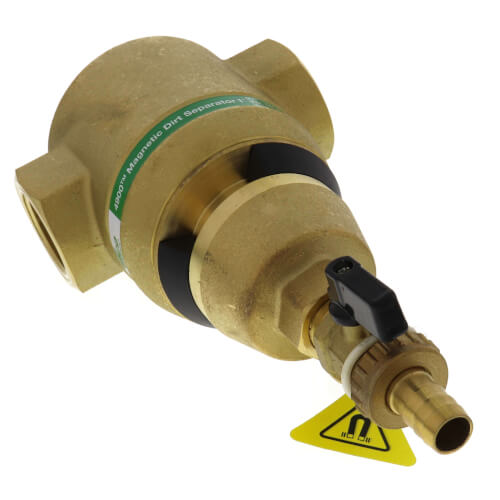

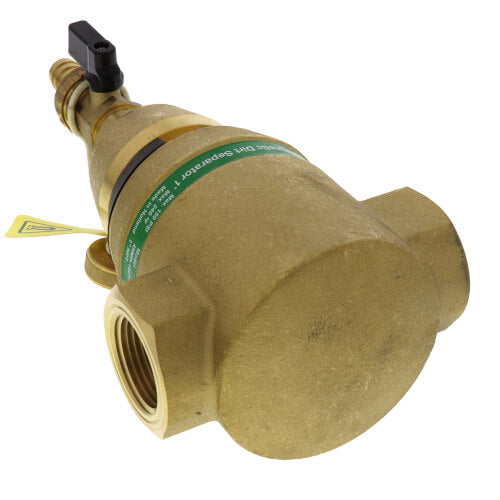

The Taco 49MD-100T-2 is a high-quality brass magnetic dirt separator designed to enhance the functionality of hydronic heating systems by removing ferrous material and other particles. It is suitable for both commercial and residential settings.
- Enhances system life and efficiency.
- Features a service-free magnetic ring and blow down valve for easy maintenance.
- Supports a maximum operating temperature of 240 degrees Fahrenheit and a pressure of 150 psi.
Product Highlights
This separator is available in sizes ranging from three-quarter inches to two inches, with FNPT x FNPT connections. It is ideal for water or water/glycol systems, accommodating up to fifty percent glycol. The Taco 49MD-100T-2 supports easy system integration and ensures system cleanliness and longevity.
Product Information
Standard Information
-
Brand: Taco
-
MPN: 49MD-100T-2
Technical Specifications
-
Material: Brass
-
Max. Operating Pressure: 150 psi
-
Max. Operating Temperature: 240F
-
Min. Operating Temperature: 35F
-
Connection Type: FNPT x FNPT
-
Flow Capacity (Cv): 17
