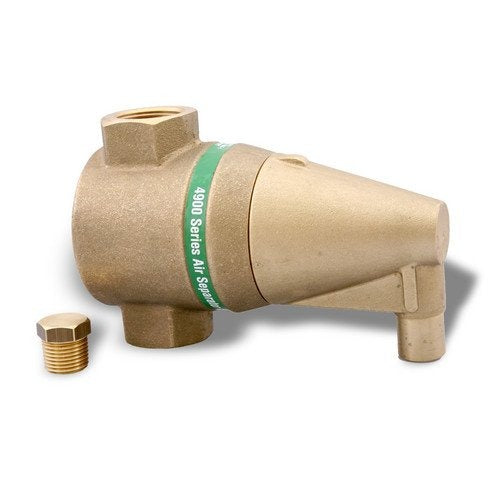

Taco 49-125T-1 Air Separator 1-1/4 Inch Ips

Product Description

The TACO 49-125T-1 is a 4900 Series air separator engineered for complete air elimination in closed loop hydronic heating and cooling systems. Using a patented PALL ring process, it removes dissolved and entrained gases from circulating water, preventing air-induced noise and system inefficiency. The unit handles operating conditions up to 240 degrees F and 150 psi. The brass housing contains a stainless steel PALL ring with a large surface contact area, promoting efficient gas separation with minimal pressure loss. Licensed plumbers and hydronic heating technicians are the primary installers of this component.

The TACO 49-125T-1 is suited for residential and light commercial closed loop hydronic systems where air accumulation causes pump noise, reduced heat transfer, or circulation problems. It connects via 1-1/4 inch IPS connections and fits inline in the supply or return piping of forced hot water heating systems and chilled water cooling loops. The closeable vent allows the installer to manage air purging during system startup and commissioning.

Key Features

• Patented PALL ring process for proven air and gas removal from hydronic water
• Eliminates air-induced system noise and circulation issues
• Operates up to 240 degrees F and 150 psi
• Minimal pressure loss across the separator
• Closeable vent for controlled air purging during startup
• Brass housing with stainless steel PALL ring for durability in wet service

Compatibility

Designed as an OEM-style replacement and standard inline component for closed loop hydronic heating and cooling systems using 1-1/4 inch IPS pipe connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified hydronic technician familiar with closed loop piping systems. Shut down and depressurize the system before cutting into supply or return lines. Follow local plumbing codes and IPC requirements for pipe joining methods on the 1-1/4 inch IPS connections. Open the vent only after the system is filled and pressurized to purge trapped air, then close it once steady water flow is confirmed.
