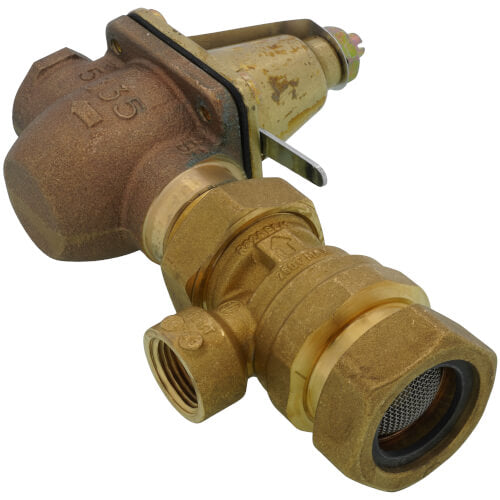

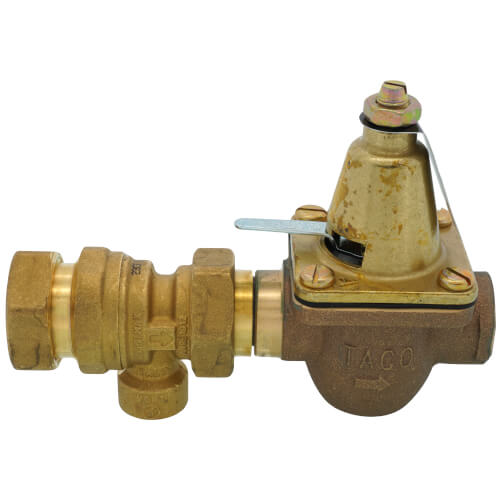

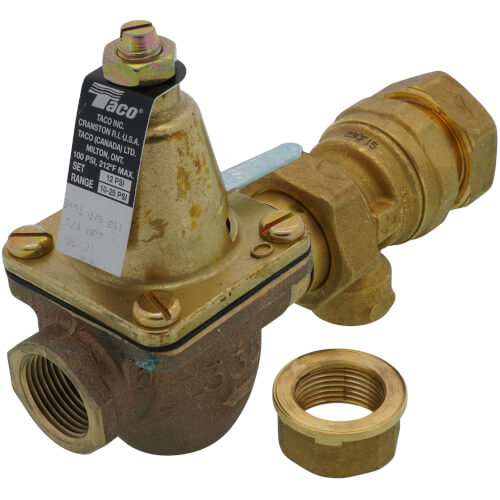

Taco 3493-075-BT1 3/4 Brass Combination Boiler Feed Valve Backflow NPT x NPT

Product Description

The Taco 3493-075-BT1 is a 3/4 inch brass combination boiler feed valve and backflow preventer. This product automatically feeds water to a system when pressure drops below the valve setting.

• Fast fill rate
• Built-in check to prevent system emptying
• Adjustable set pressure of 10 to 25 psi

Product Highlights

This valve is designed for a quick fill rate and includes an exclusive fast fill lever lock. It has a built-in check to prevent the system from emptying if there is a failure in incoming pressure. The pressure setting adjustment is separate from the fast fill lever, making it easy and fast to adjust. It is listed under ASSE 1012-2009 and SA B64.3-11 standards.

Product Information

Standard Information

• Brand: Taco
• MPN: 3493-075-BT1
• Category: Valve

Technical Specifications

• Material: Brass
• Connection Size: 3/4 inch
• Connection Type: NPT x NPT
• Max Temperature: 210°F
• Max Supply Pressure: 25 psi
• Max Working Pressure: 100 psi
• Shipping Depth: 7.85 inches
• Shipping Width: 6 inches
• Shipping Height: 2.8 inches
