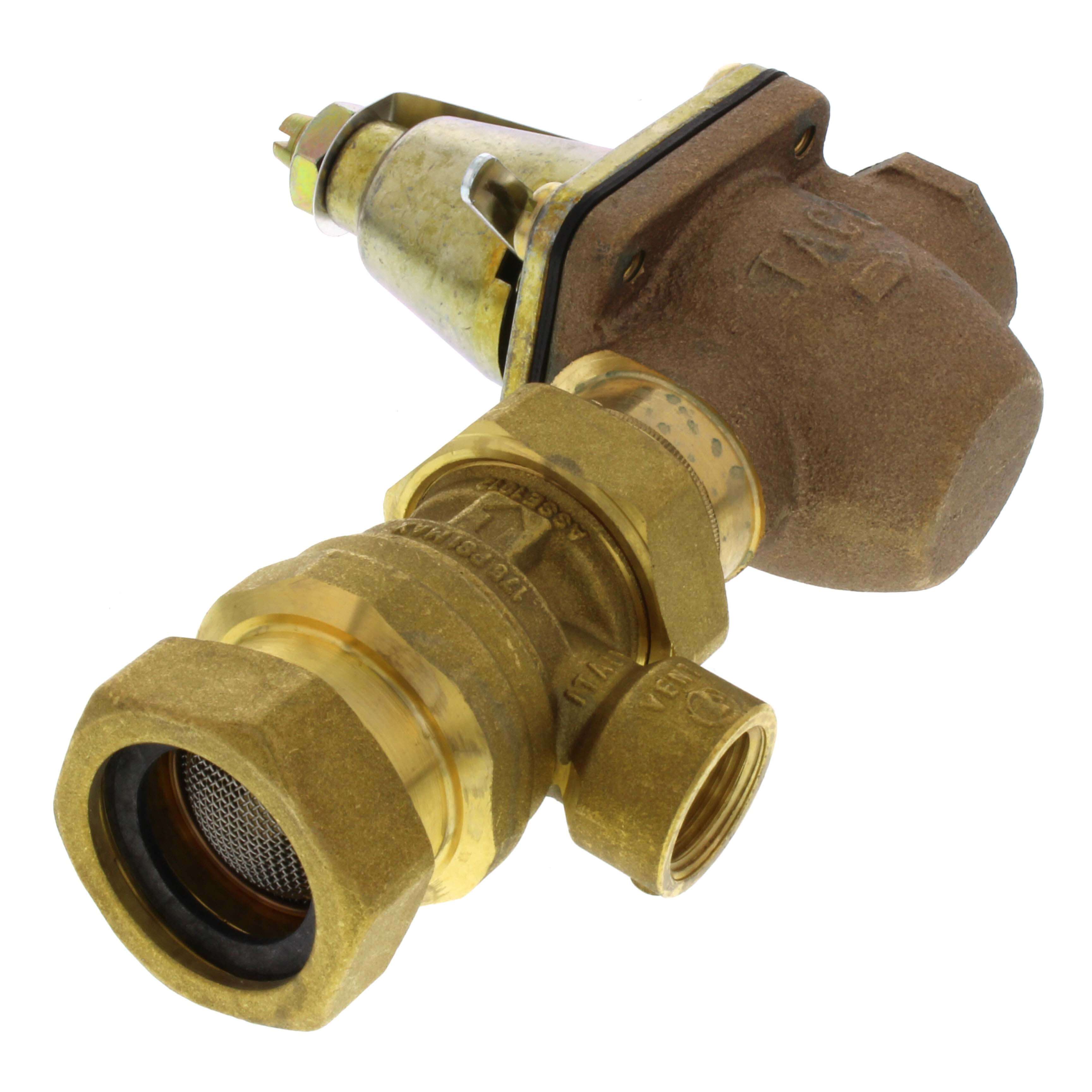

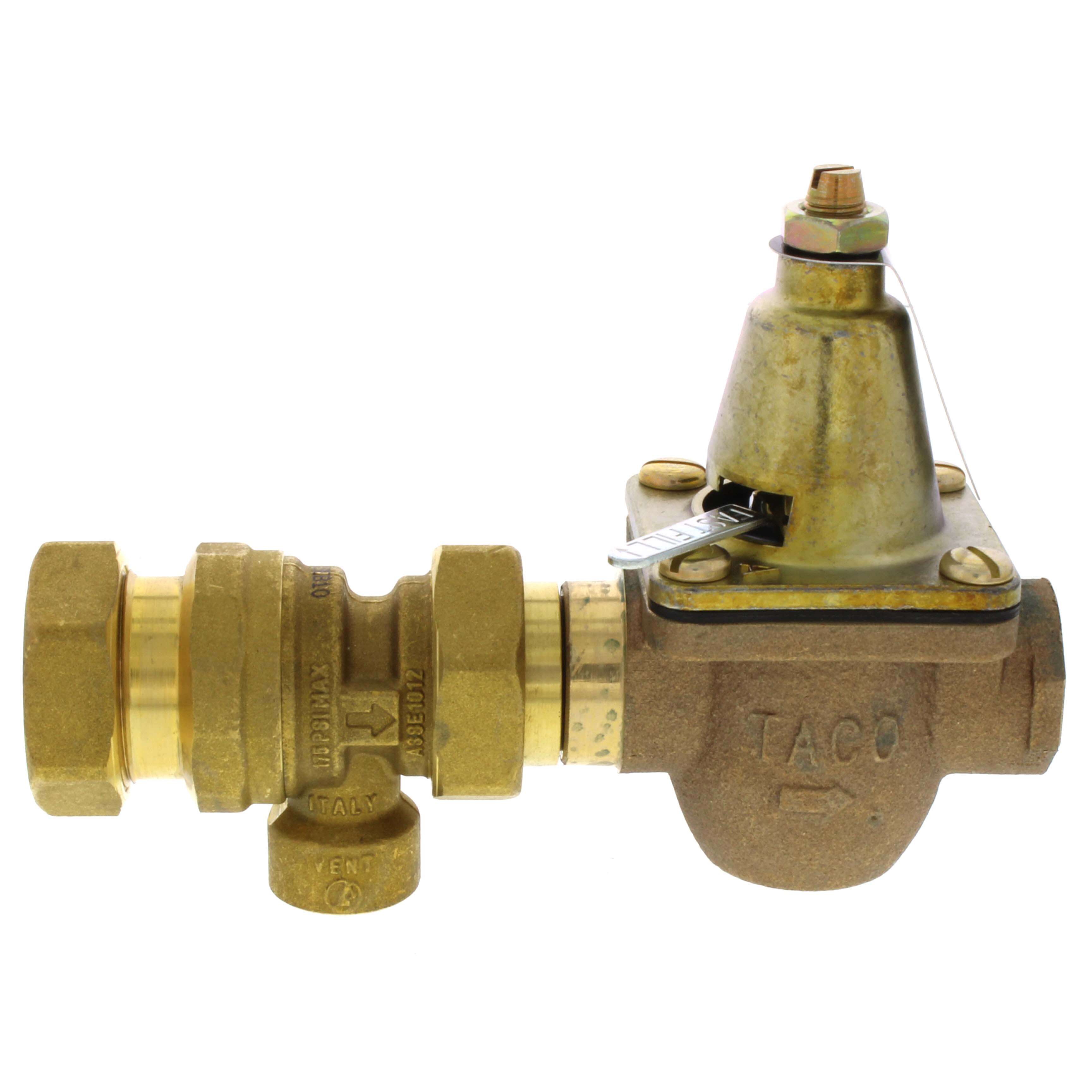

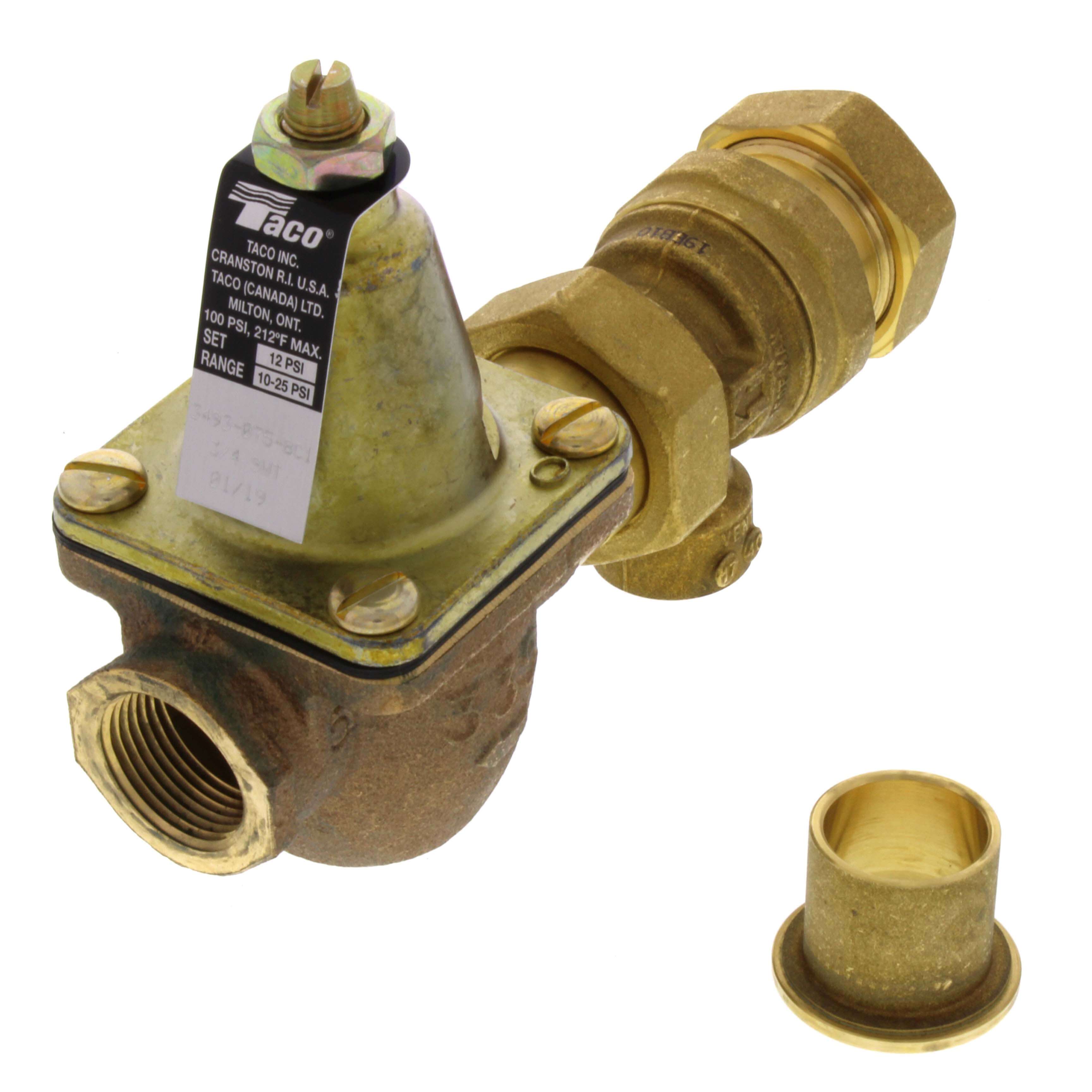

Taco 3493-075-BC1 3/4 Brass Combination Boiler Feed Valve & Backflow Sweat x NPT

Product Description

The Taco 3493-075-BC1 is a three-quarter inch brass combination boiler feed valve and backflow preventer. This product automatically replenishes water in a system when the pressure drops below the set level, ensuring consistent operation. The valve features a fast fill lever lock that allows for rapid water intake, preventing air from entering and maintaining system pressure.

• Adjustable pressure setting between ten to twenty-five psi.
• Built-in check valve to stop system drainage when incoming pressure is insufficient.
• Separation of pressure setting adjustment from the fast fill lever for quick and easy changes.

Product Highlights

Efficiently manages water levels in heating systems and prevents system drain.

Product Information

Standard Information

• Brand: Taco
• Product Type: Boiler Feed Valve & Backflow Preventer

Technical Specifications

• Material: Brass
• Connection Type: Sweat x NPT
• Size: Three-Quarter Inch
• Max Temperature: Two Hundred Ten Degrees Fahrenheit
• Max Supply Pressure: Twenty-Five psi
• Max Working Pressure: One Hundred psi
• Weight: Three Point Six Five Five lbs
• Shipping Dimensions: Seven Point Nine inches x Six Point Zero Five inches x Two Point Eight inches
