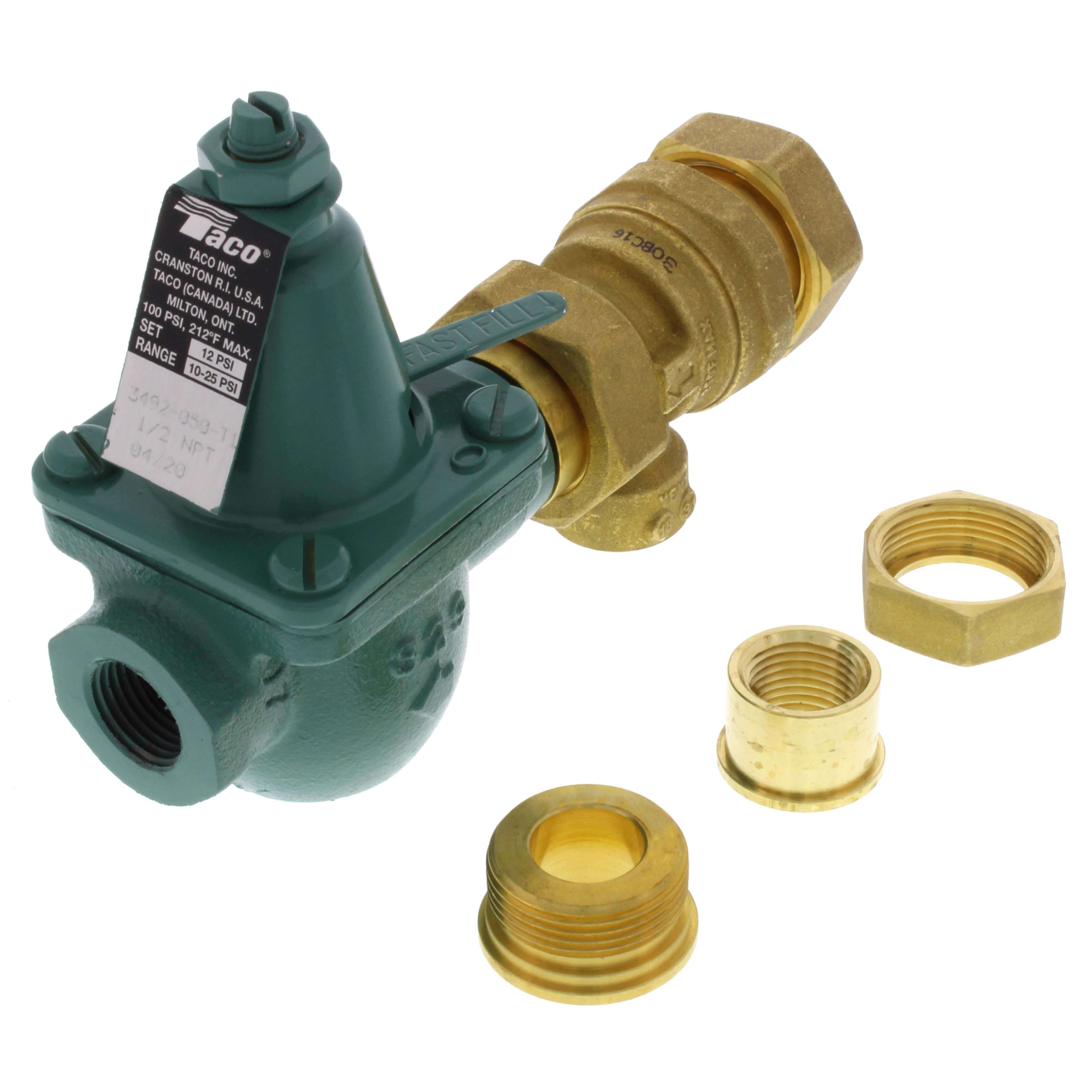

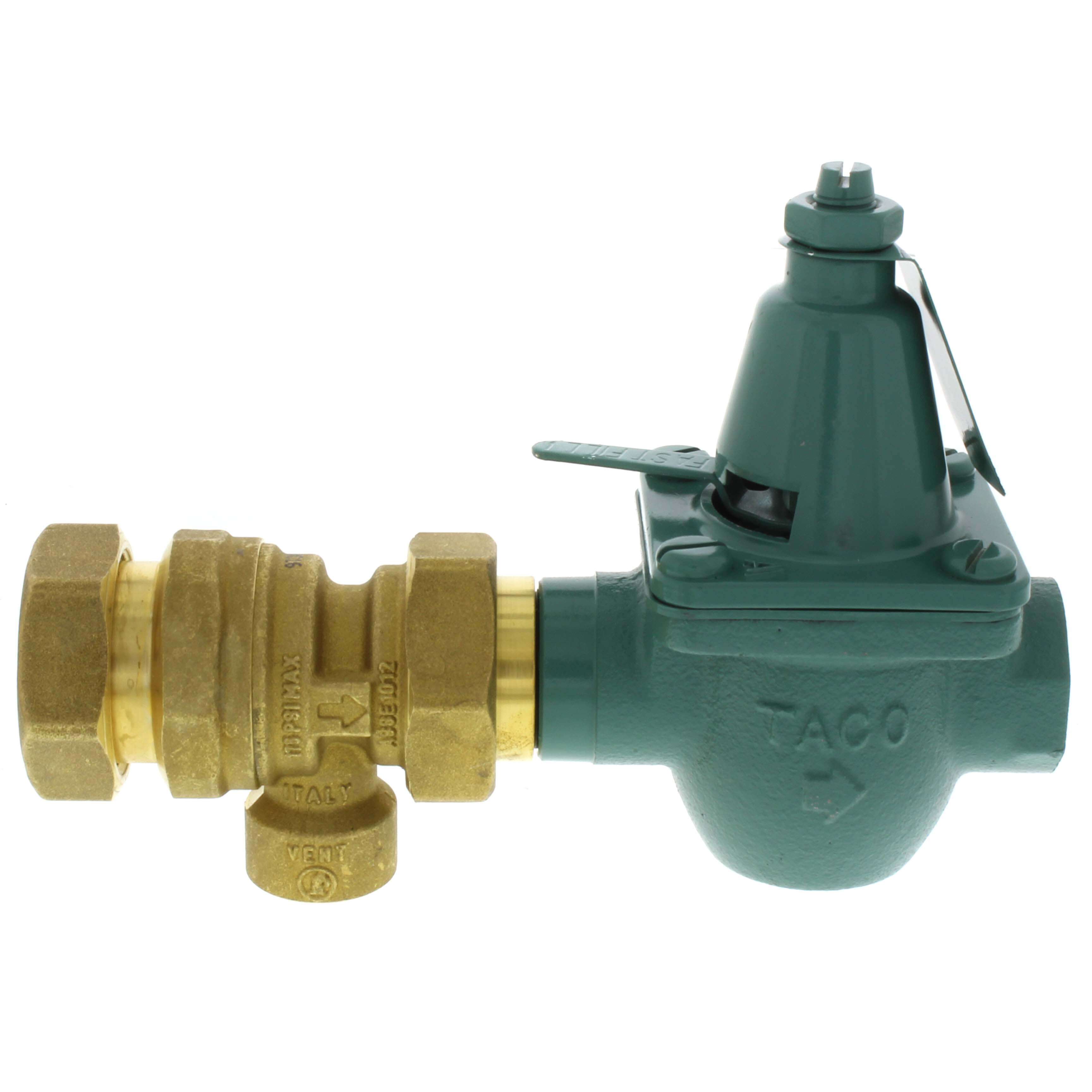

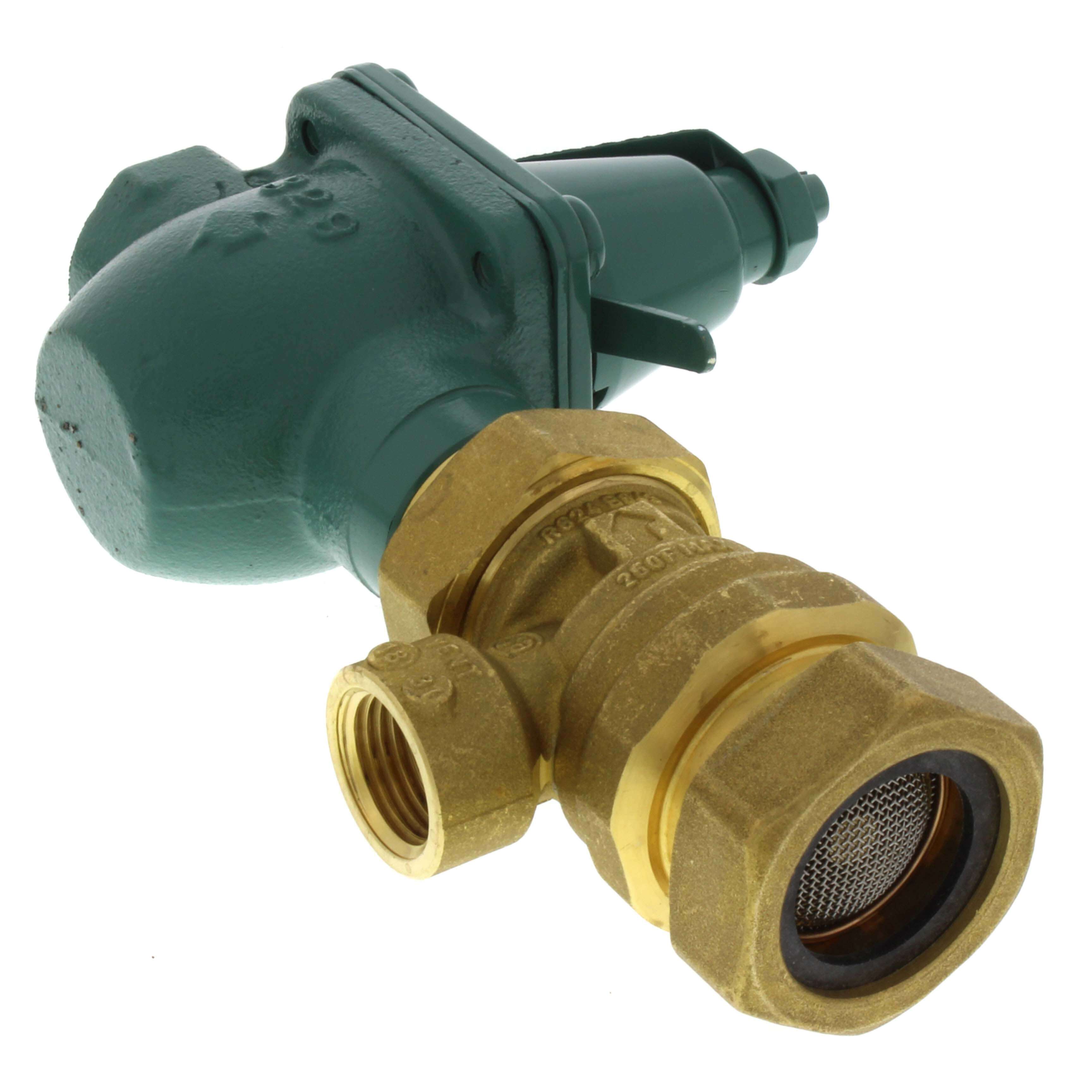

Taco 3492-050-T1 1/2 Cast Iron Combination Boiler Feed Valve & Backflow NPT x NPT

Product Description

The Taco 3492-050-T1 is a cast iron combination boiler feed valve designed for automatic water feeding in boiler systems. This valve activates when the system pressure falls below the set level. It is an essential component in maintaining the water level in heating systems.

• Compatible with NPT connections
• Adjustable set pressure from 10 to 25 psi
• Includes a built-in check to prevent system drainage during low incoming pressure

Product Highlights

This valve features a fast fill rate and a lever lock for quick operation when adjustments are necessary. It's designed to meet ASSE standards for safety.

Product Information

Standard Information

• Brand: Taco
• Material: Cast Iron

Technical Specifications

• Size: 1/2 inch
• Connection Type: NPT x NPT
• Max Temperature: 210 degrees Fahrenheit
• Max Supply Pressure: 25 psi
• Max Working Pressure: 100 psi
• Weight: 3.7 pounds
• Shipping Dimensions: 7.8 inches (Depth) x 5.9 inches (Width) x 2.7 inches (Height)
