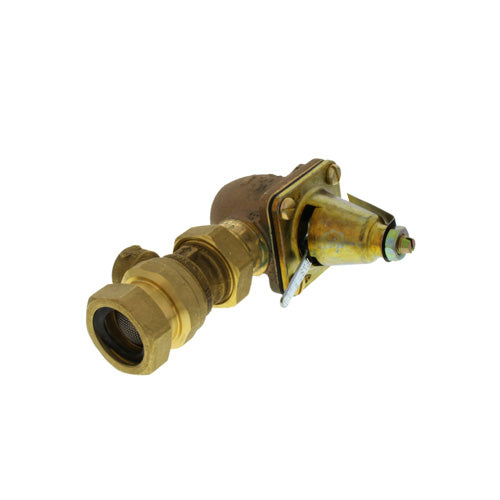

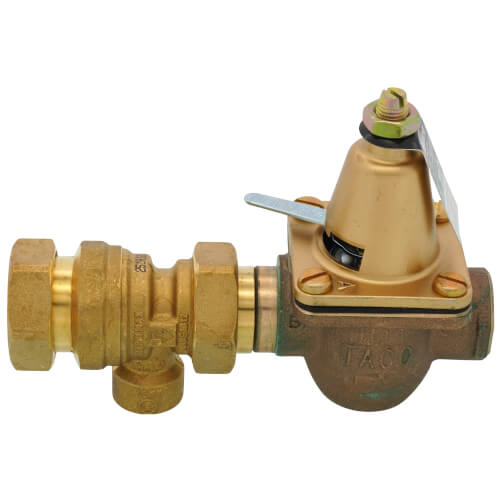

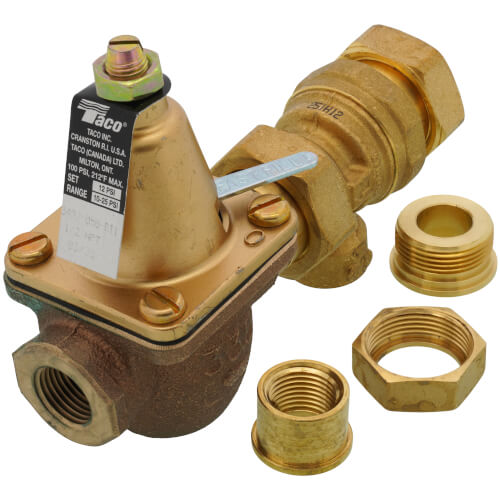

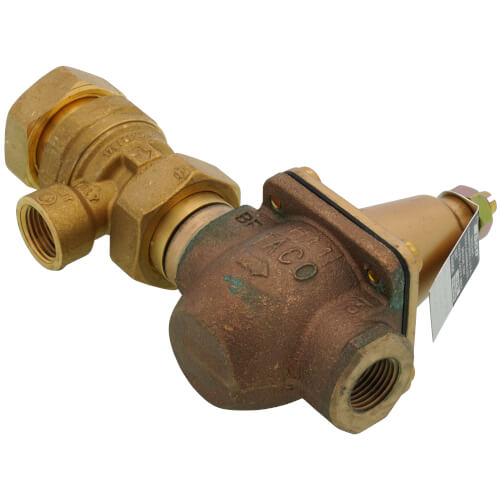

Taco 3492-050-BT1 1/2 Brass Combination Boiler Feed Valve & Backflow NPT x NPT

Product Description

The Taco 3492-050-BT1 is a brass combination boiler feed valve and backflow device that automatically feeds water to a system when the pressure drops below a specified setting. This unit is essential for maintaining system pressure and preventing air from entering the lines.

• Fast fill rate for efficient water supply
• Built-in check valve to prevent system emptying
• Adjustable pressure settings between ten and twenty-five psi

Product Highlights

This product includes a fast fill lever lock and a pressure setting adjustment control that is separate from the fast fill lever for ease of use. Its design includes ASSE listings for safety and performance compliance.

Product Information

Standard Information

• Brand: Taco
• Material: Brass

Technical Specifications

• Connection Size: 1/2 inch
• Connection Type: NPT x NPT
• Max Supply Pressure: 25 psi
• Max Working Pressure: 100 psi
• Temperature Range: Up to 210°F
• Weight: 4.005 lbs
• Shipping Dimensions: 7.9 x 6.1 x 2.75 inches
