TACO Taco 1935EAE10000000 1900 Series 2-Inch In-Line Pump, Less Motor
TACO Taco 1935EAE10000000 1900 Series 2-Inch In-Line Pump, Less Motor

Taco 1935EAE10000000 1900 Series 2-Inch In-Line Pump, Less Motor

TACO
Brand: TACO
SKU: 1935EAE10000000
Availability: In Stock

Ships via freight in 1-3 business days

$1,695.45
$1,695.45
LTL Delivery

This product weighs 110 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

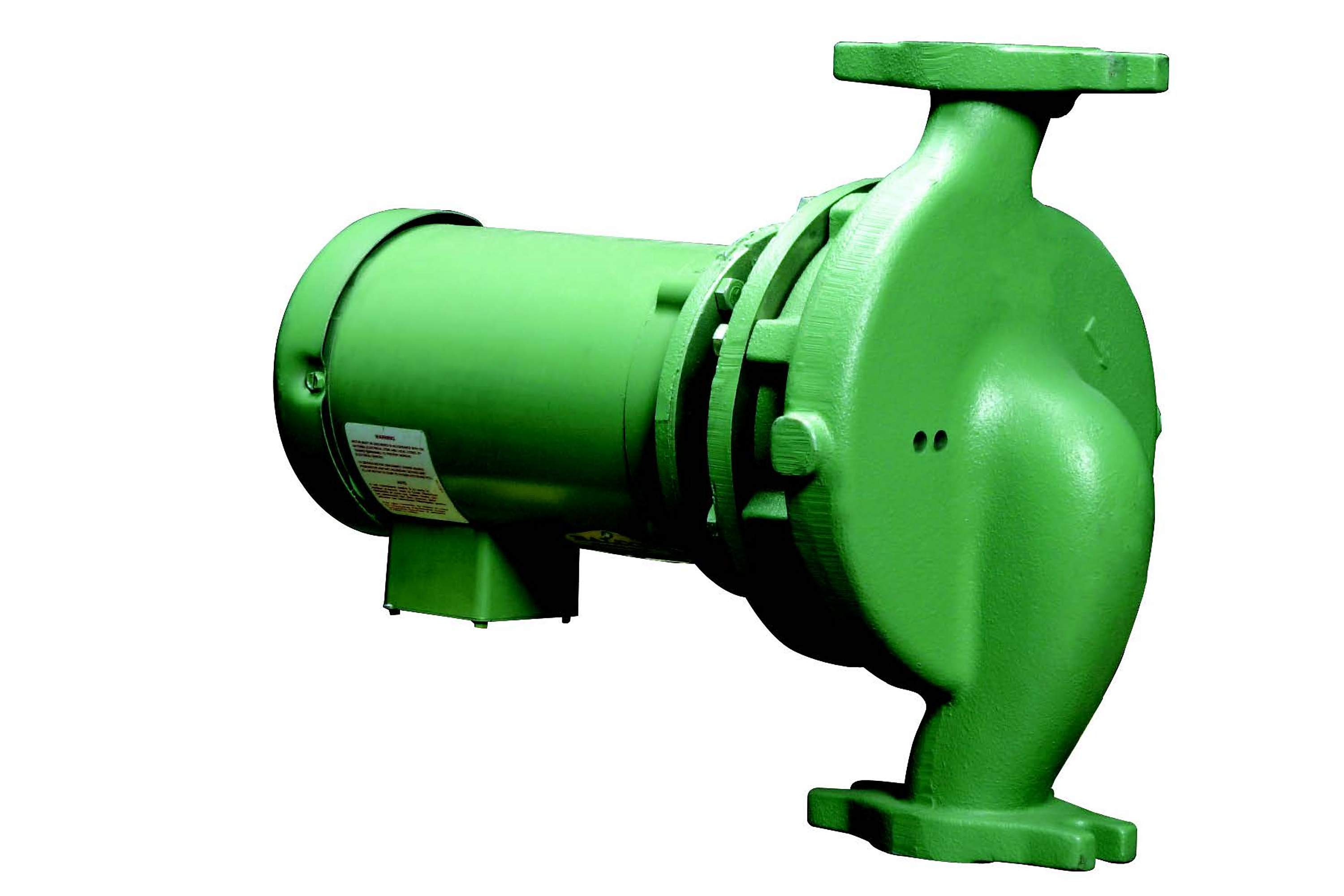

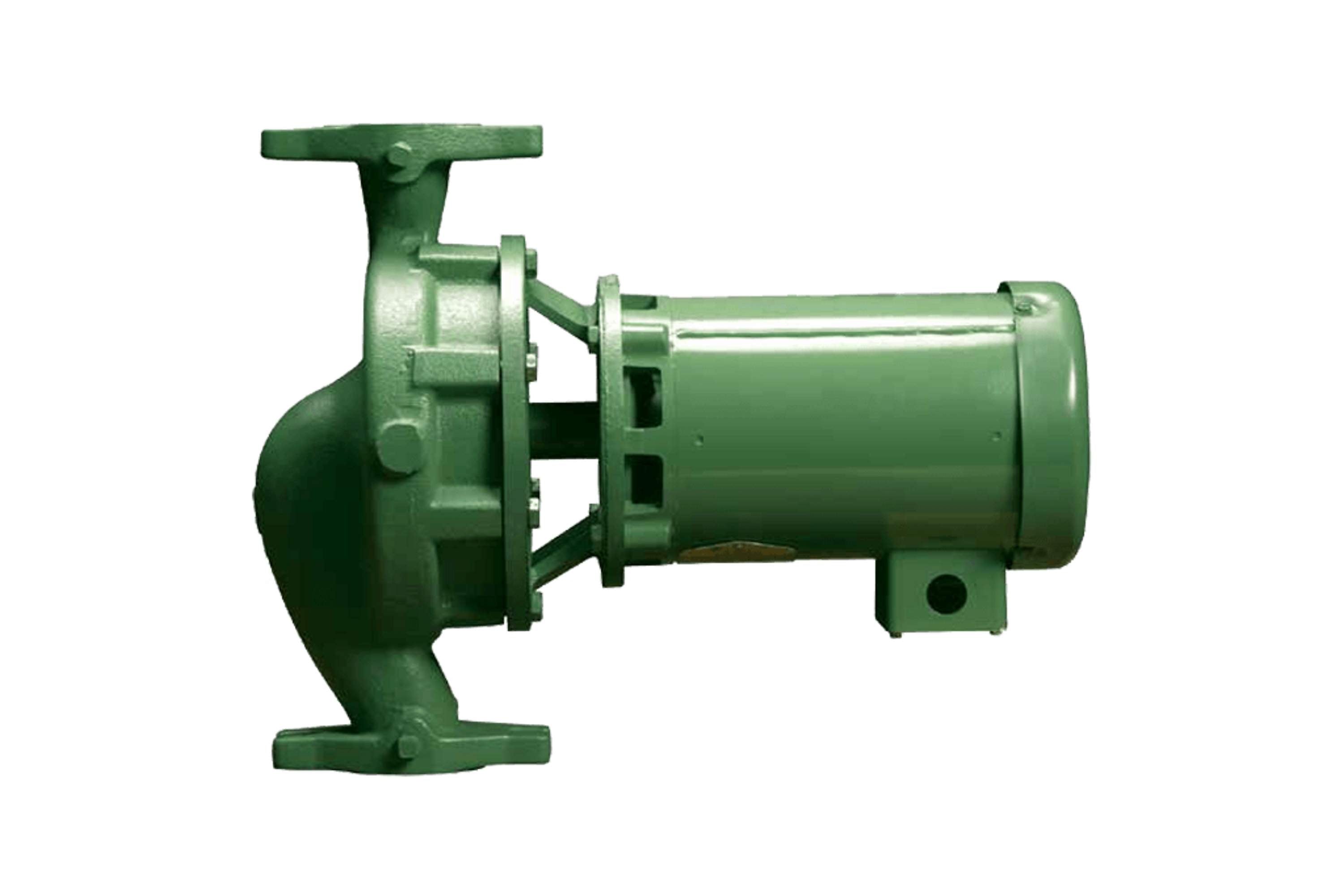

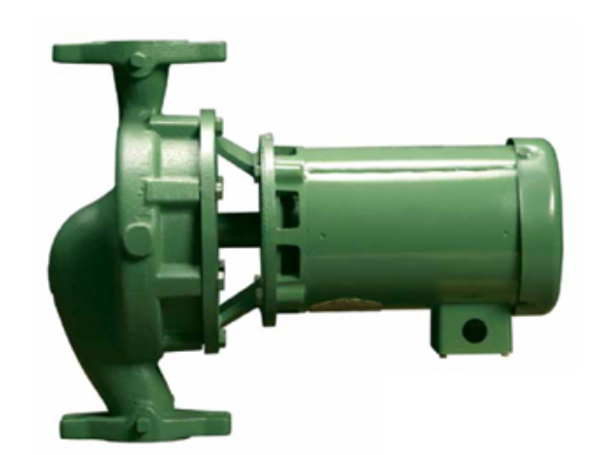

The Taco 1935EAE10000000 is a Model 1935 close-coupled in-line pump from the Taco 1900 Series. Designed for hydronic and fluid-circulation applications, this pump features 2-inch suction and discharge connections, a cast-iron casing and bracket, and a stainless-steel impeller. This configuration is supplied without a motor.

  • 1900 Series, Model 1935
  • Close-coupled in-line pump design
  • 2-inch suction and discharge connections
  • Nominal 6-5/32-inch impeller diameter
  • Cast-iron casing and bracket
  • Stainless-steel impeller and shaft
  • Mechanical seal with ceramic seat, carbon rotor, and EPT rubber elastomer

Product Highlights

The Taco 1935 provides an in-line pump configuration intended for integration into a compatible piping system. Its rear-pullout design supports servicing of the motor and rotating components without disturbing connected piping when used with the appropriate motor configuration. Motor is not included with this MPN.

Product Information

Standard Information

  • Brand: Taco
  • Manufacturer Part Number: 1935EAE10000000
  • Series: 1900 Series
  • Model: 1935
  • Configuration: Pump only, less motor

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications
Pump Type
Close-coupled in-line pump
Suction Connection
2 in
Discharge Connection
2 in
Nominal Impeller Diameter
6-5/32 in
Casing Material
Cast iron
Bracket Material
Cast iron
Impeller Material
Stainless steel
Shaft Material
Stainless steel
Mechanical Seal Seat
Ceramic
Mechanical Seal Rotor
Carbon
Seal Elastomer
EPT rubber
Maximum Operating Temperature
250°F, as listed for this product
Maximum Working Pressure
175 PSI
Motor
Not included
