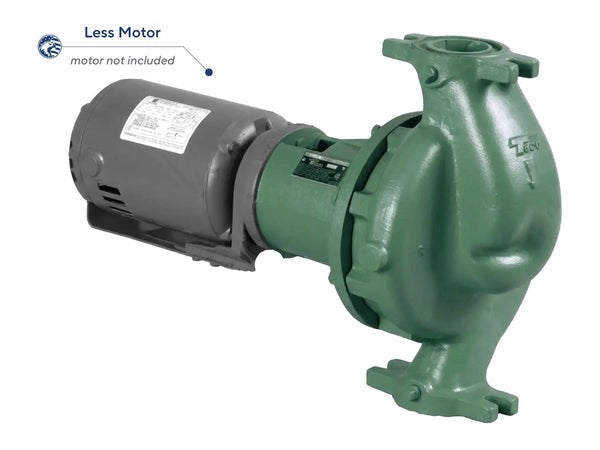

Taco 1619dae30000000 Inline Cartridge Pump Less Motor

Product Description

The TACO 1619dae30000000 is an inline cartridge pump supplied in a less-motor configuration, meaning the motor is not included and must be sourced and mounted separately. Part of the TACO 1600 Series, this pump features a 2-inch suction port and a 2-inch discharge port, paired with a 7.9-inch nominal diameter impeller. Wetted components — including the casing, impeller, face plate, and shaft — are constructed from stainless steel. A cast iron bracket supports the assembly and accommodates external prime movers. This pump is designed for installation by licensed plumbers and mechanical contractors in commercial and industrial hydronic piping systems.

The 1619dae30000000 is suited for inline hydronic applications where high flow and moderate head are required. Its rear pull-out design allows complete removal of the motor and all rotating components for servicing without disturbing the connected piping — a significant advantage in tight mechanical rooms or systems where downtime must be minimized. The permanently sealed, grease-lubricated bearing cartridge isolates the bearing assembly from system fluid, extending service intervals. This pump handles fluid temperatures up to 250 degrees F, making it appropriate for higher-temperature hot water heating systems in commercial settings.

Key Features

• Less-motor configuration with mounting bracket included for use with external prime movers
• 2-inch suction and 2-inch discharge ports for inline piping installation
• 7.9-inch nominal diameter impeller
• Stainless steel casing, impeller, face plate, and shaft for corrosion resistance
• Replaceable bearing cartridge with permanently sealed, grease-lubricated ball bearings
• Standard Type 21 mechanical seal with ceramic seat, carbon mating ring, and EPT elastomers
• Rear pull-out design for in-place serviceability without disconnecting piping

Compatibility

Designed as an OEM-style inline cartridge pump for commercial hydronic heating and cooling systems requiring a 2-inch inline pump with a less-motor configuration in the TACO 1600 Series.

Installation Notes

Installation should be performed by a licensed plumber or mechanical contractor familiar with commercial hydronic piping systems. Shut down the system and isolate the pump using service valves before any service or installation work. Ensure the external motor is properly rated and coupled to the pump shaft before energizing. Follow all applicable local mechanical codes and manufacturer coupling specifications when mating the motor to the bracket assembly.
