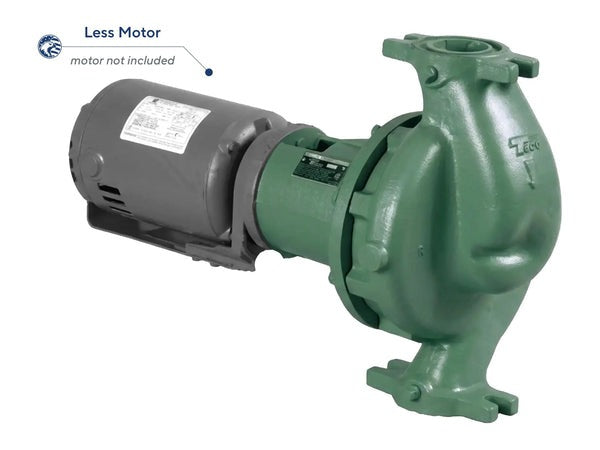

Taco 1615eae1l000000 In-line Cartridge Pump Less Motor

Product Description

The TACO 1615eae1l000000 is an in-line cartridge pump designed for hydronic heating and cooling systems. It ships without a motor, allowing field selection of the required horsepower, RPM, enclosure type, voltage, and phase configuration to match site conditions. The cast iron casing and bracket provide durability, while the 6.35-inch nominal diameter stainless steel impeller and stainless steel shaft handle demanding circulation duties. A replaceable bearing cartridge assembly and mechanical seal — consisting of a ceramic seat, carbon mating ring, and EPT elastomers — are included. Rated for system temperatures up to 250 degrees F, this pump suits high-temperature hydronic applications. Installation is handled by licensed plumbers or mechanical contractors.

The 1615eae1l000000 is suited for commercial and residential hydronic systems where in-line installation is required. Its 1.5-inch suction and 1.5-inch discharge connections integrate directly into the piping circuit. The rear pull-out design allows full removal of the motor and all rotating components for servicing without breaking into the connected piping, making it a practical choice for mechanical rooms where piping disturbance is costly or impractical. The long motor bracket is included for field motor assembly.

Key Features

• Ships less motor — field-select HP, RPM, enclosure type, voltage, and phase to match system requirements
• Cast iron casing and bracket for durability in hydronic service
• 6.35-inch nominal diameter stainless steel impeller with stainless steel shaft
• Mechanical seal with ceramic seat, carbon mating ring, and EPT elastomers
• Replaceable bearing cartridge assembly for simplified maintenance
• Rear pull-out design permits motor and rotating assembly removal without disturbing piping
• Rated for system temperatures up to 250 degrees F

Compatibility

Designed as an OEM-style in-line cartridge pump for hydronic heating and cooling piping systems requiring a 1.5-inch suction and 1.5-inch discharge connection in the TACO 1600 Series configuration.

Installation Notes

This pump is typically installed by a licensed plumber or mechanical contractor. Isolate and depressurize the system before beginning installation or service. The rear pull-out design allows motor and rotating component removal without disconnecting the piping, but the system must still be drained or valved off at the pump. Motor selection, wiring, and electrical connections must conform to applicable local codes and NEC requirements.
