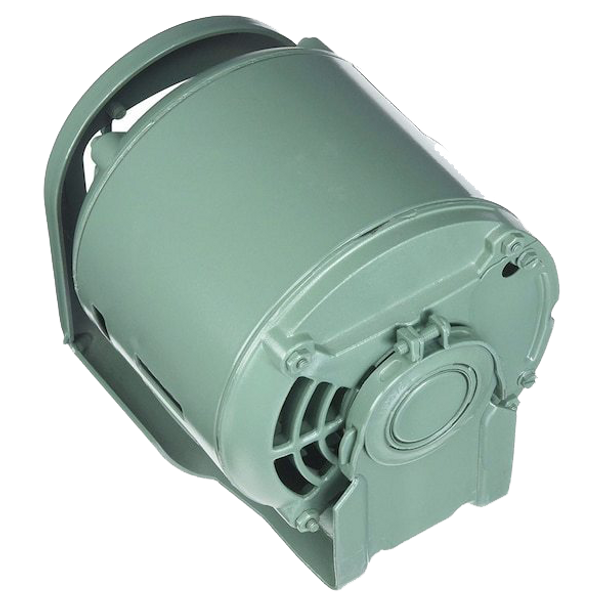

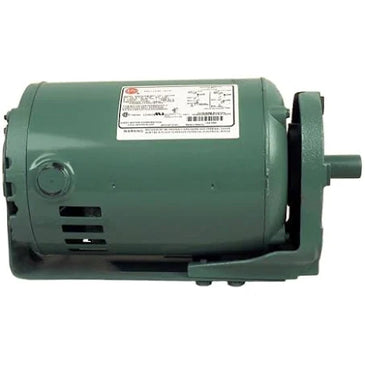

TACO 138-274 Motor Assembly 2 HP

Product Description

The TACO 138-274 is a motor assembly intended for replacement. It delivers a power of two horsepower and runs at one thousand seven hundred fifty RPM. This motor operates on a three-phase system and is compatible with voltages of two hundred eight, two hundred thirty, and four hundred sixty at a frequency of sixty Hertz.

• Rated for two horsepower
• Operates at one thousand seven hundred fifty RPM
• Compatible with TACO 1900 series pumps

Product Highlights

This motor features an open drip proof enclosure and a 56 C-face frame, designed for counter-clockwise rotation from the shaft end.

Product Information

Standard Information

• Brand: Taco
• Type: Replacement Part (Motor)

Technical Specifications

• MPN: 138-274
• Horsepower: 2 HP
• Voltage: 208/230/460V
• Frequency: 60 Hz
• Phase: 3
• RPM: 1750
• Enclosure: ODP
• Frame: 56 C-face (less Feet)
• Rotation: CCW (as seen from shaft end)
• Service Factor: 1.15
• Ambient Temperature: 40C
• Series: Series 121-138
