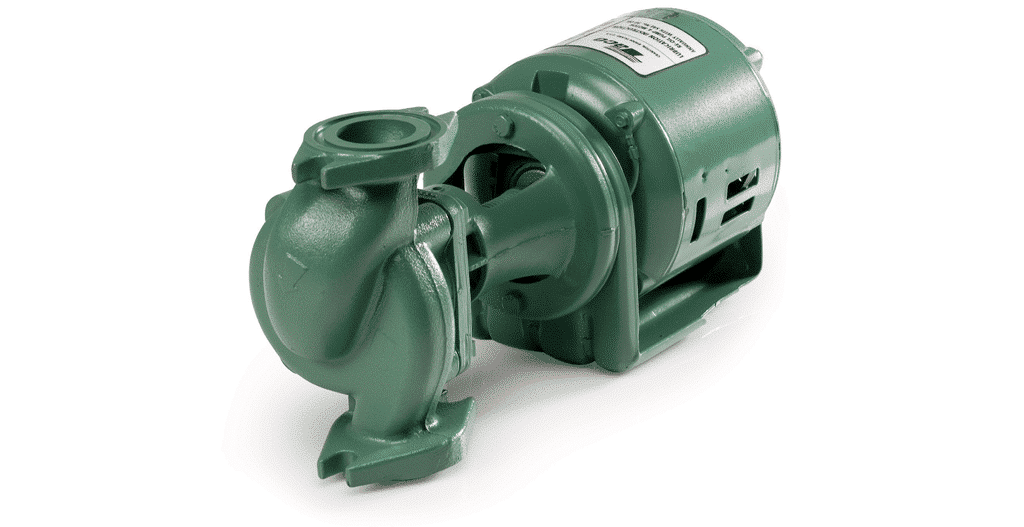

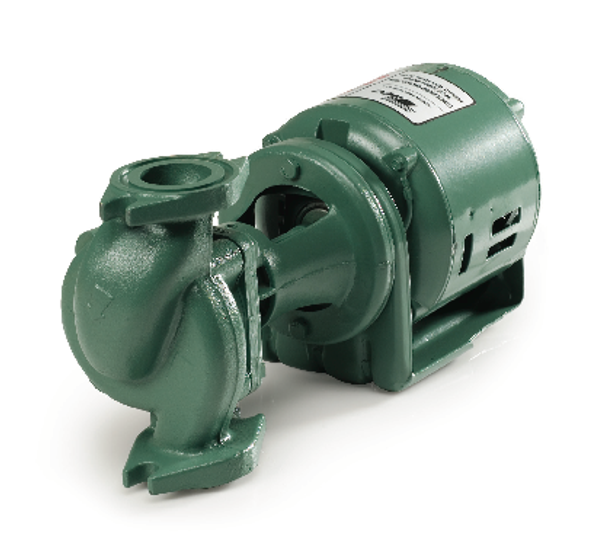

TACO 110-24S Circulation Pump - Stainless Steel

Product Description

The TACO 110-24S Circulation Pump is essential for circulating heated or chilled water in systems such as hydronic and solar. Built with stainless steel, this pump features a one-twelfth horsepower motor and runs at 1725 RPM. It is ideal for applications including domestic hot water heating and recirculation, along with hydronic heating, cooling, and solar/geothermal systems.

• Maximum fluid temperature of 240 degrees Fahrenheit.
• Supports connections ranging from three-quarter to one and one-half inches with flanged connection.
• Includes a one-year manufacturer warranty.

Product Highlights

The TACO 110-24S is designed for quiet operation, featuring a rugged bronze sleeve bearing. It is a reliable choice for various applications.

Product Information

Standard Information

• Brand: TACO
• Model: 110-24S

Technical Specifications

• Material: Stainless Steel
• Max Pressure: 125 PSI
• Horse Power: 1/12 HP
• Connection Size: 3/4, 1, 1-1/4, 1-1/2 inches
• Flow Range: 0-33 GPM
• Max Flow: 33 GPM
• Head Range: 0-7.5 FT
• Max Head: 7.5 FT
• Phase: Single
• RPM: 1725
• Connection: Flanged
• Hertz: 60
• Max Temp: 240 degrees Fahrenheit
• Warranty: 1-Year Manufacturer Warranty
