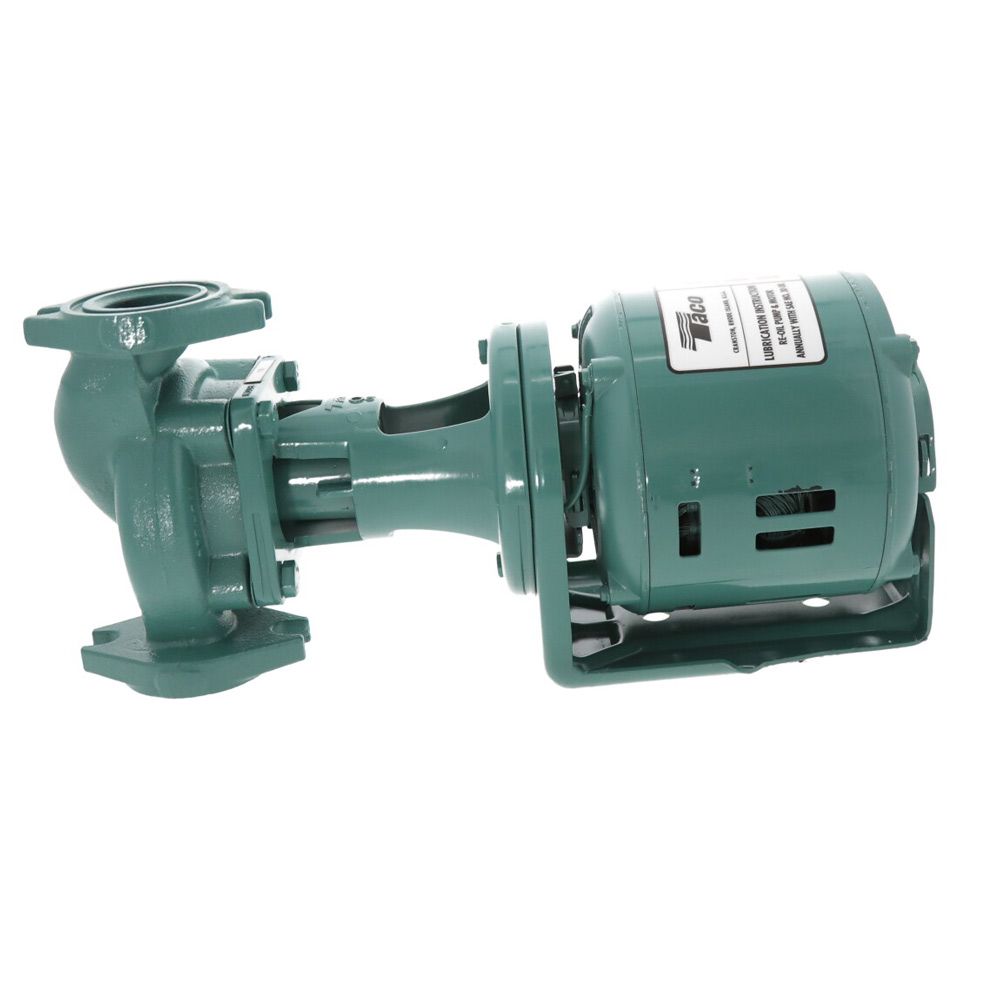

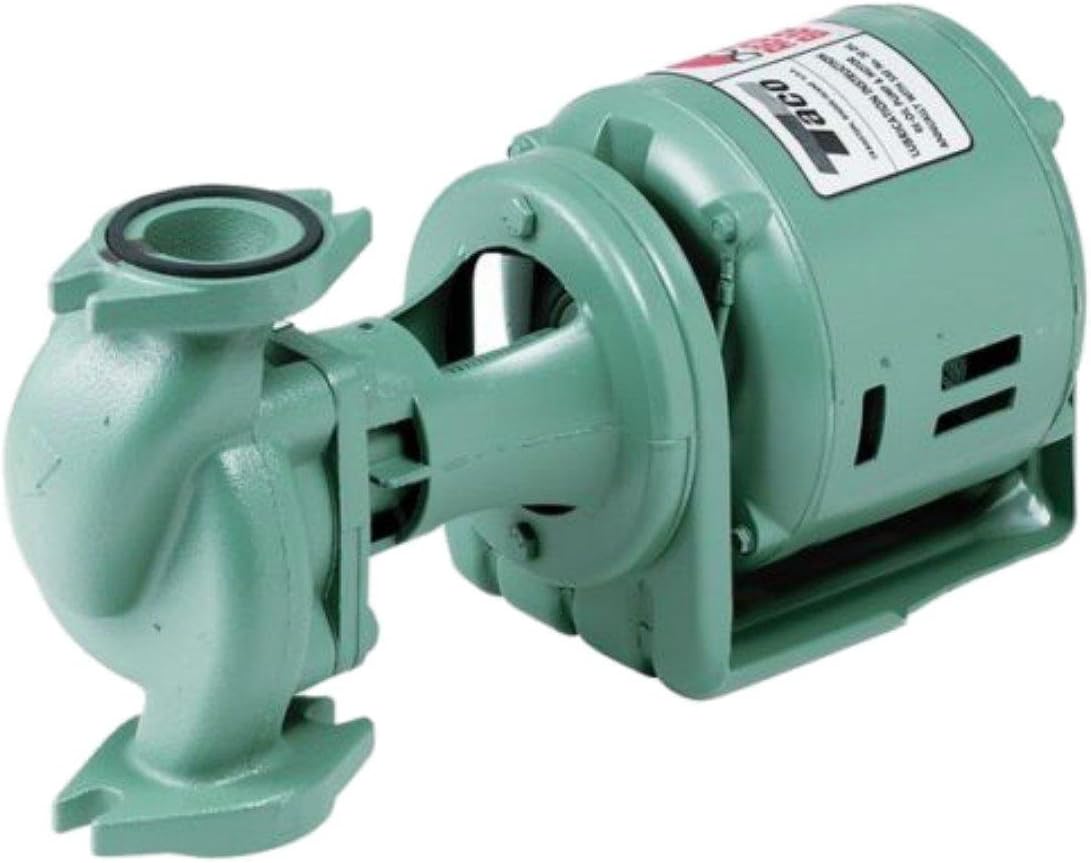

Taco 110-24 Cast Iron In-Line Circulator Pump 1/12 HP 115V

Product Description

The Taco 110-24 is a robust cast iron in-line circulator pump designed for efficient functioning in hydronic heating and cooling systems. Manufactured by Taco, this pump is built to ensure continuous circulation in closed loop systems.

• Optimal for both residential and commercial applications.
• Suited for primary-secondary systems, and parallel pumping designs.
• Includes features such as a one-piece non-ferrous impeller and a stainless steel shaft.

Product Highlights

The Taco 110-24 offers silent functioning with its resilient mounted, split phase motor, and built-in overload protector. Its durable design includes a one-piece spring coupling and a bronze sleeve bearing enhancing its longevity.

Product Information

Standard Information

• Item Weight: 10.84 pounds
• Dimensions: 14.6 x 5.5 x 8 inches

Technical Specifications

• Horsepower: 1/12 HP
• Power: 115V, 1725 RPM
• Maximum Pressure: 175 psi
• Maximum Temperature: 240 degrees Fahrenheit
• Flow Rate: 33 GPM at 1 foot of head
• Construction: Cast Iron
