TACO 11 Circulator Pump 1/8 HP REPLACEMENT MPN

Product Description

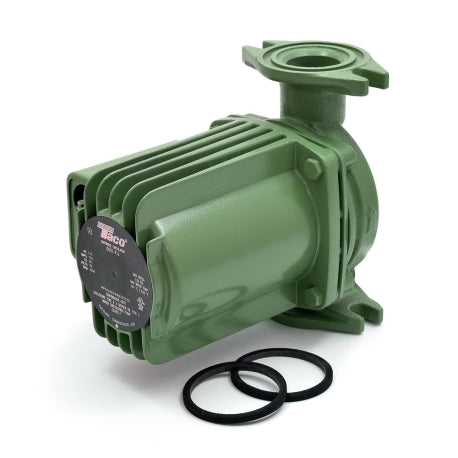

The TACO 11 Circulator Pump is built for high head and medium flow tasks. It is suitable for large residential and light commercial applications, including hydronic heating systems. This pump is effective for boilers with high-pressure drops and works well with fan coil units, heat exchangers, and geothermal systems.

• Designed for both high head and medium flow tasks.
• Universal flange dimensions allow for flexible installation.
• Compact design with energy-efficient operation.

Product Highlights

This circulator pump is designed for efficiency. It can handle a maximum working pressure of 125 psi and operates at 115 volts.

Product Information

Standard Information

• Brand: TACO
• MPN: 11

Technical Specifications

• Flow Range: 0 – 31 GPM
• Head Range: 0 – 31 Feet
• Minimum Fluid Temperature: 40 degrees Fahrenheit
• Maximum Fluid Temperature: 230 degrees Fahrenheit
• Maximum Working Pressure: 125 psi
• Connection Sizes: 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch Flanged
• Voltage: 115V
• Hertz: 60Hz
• Phase: 1
• Amps: 1.76A
• Horsepower: 1/8HP
