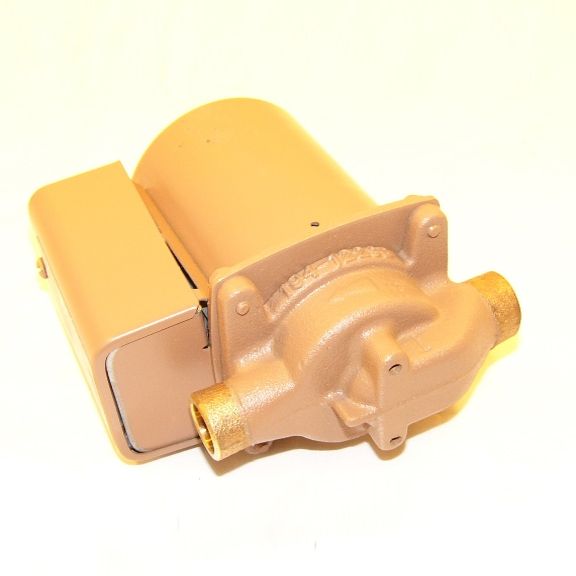

TACO TACO 006-BC4 Bronze Circulator Pump 1/40 HP 115V

TACO 006-BC4 Bronze Circulator Pump 1/40 HP 115V

TACO
Brand: TACO
SKU: 006-BC4
Availability: In Stock

Ships same day if ordered by 12 pm

Same-day delivery
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)
$396.51
$396.51
$464.58
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

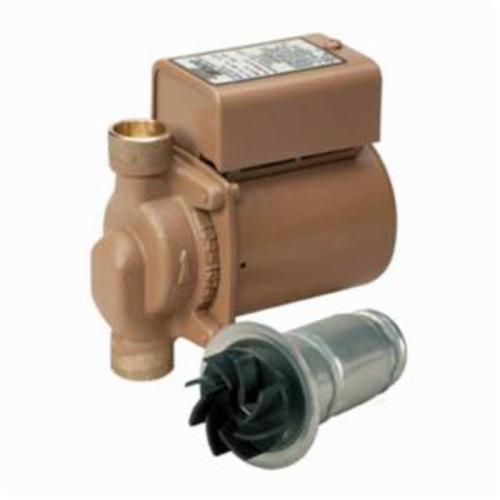

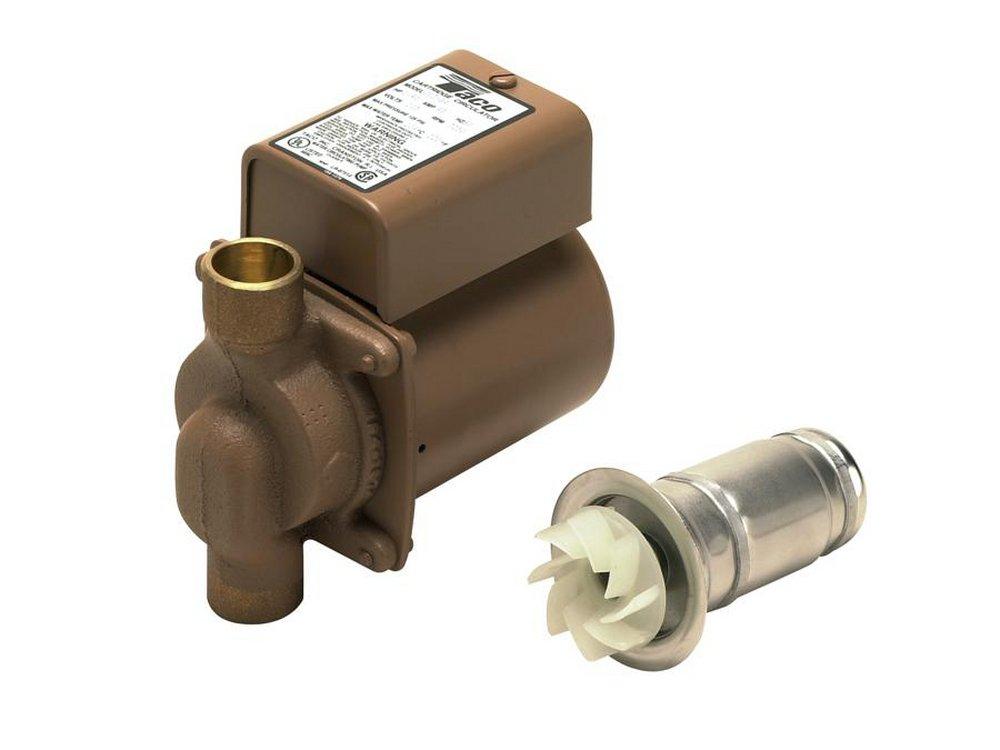

The TACO 006-BC4 is a bronze cartridge circulating pump rated 115 Volts and 1/40 HP for hydronic recirculation. It employs a direct-drive motor and a replaceable, self-lubricating cartridge that contains all moving parts and omits a mechanical seal to enable maintenance-free operation. The unit supports up to 10 GPM flow and 9 ft head, operates at 60 Hz/3250 RPM, and measures approximately 3.5 x 5.25 x 6 inches with a weight of 4.5 pounds.

Key Features

  • Bronze cartridge construction with replaceable, self-lubricating cartridge; no mechanical seal.
  • Direct-drive motor: 1/40 HP, 115 V, 0.52 A, 60 Hz, single phase, 3250 RPM.
  • 1/2 in sweat connection, flow range 0-10 GPM, max head 9 ft, max pressure 125 PSI, temperature range 40 F-220 F.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications
Brand
TACO
MPN
006-BC4
Product Name
Bronze cartridge circulating pump
Material
Bronze
Horsepower
1/40 HP
Input Voltage
115 V
Connection Size
1/2 in
Connection Type
Sweat
Flow Range
0-10 GPM
Max Flow
10 GPM
Head Range
0-9 ft
Max Head
9 ft
Maximum Working Pressure
125 PSI
Amperage
0.52 A
RPM
3250
Phase
Single
Frequency
60 Hz
Temperature Range
40 F - 220 F
Dimensions
3.5 x 5.25 x 6 inches
Weight
4.5 pounds
Seal Type
No mechanical seal (replaceable cartridge; self-lubricating)
Drive Type
Direct drive
Design
Replaceable cartridge; self-lubricating
Included Components
TACO 006-BC4 Bronze Cartridge Circulating Pump
Brand
TACO
Manufacturer Part Number
006-BC4
