Product Description

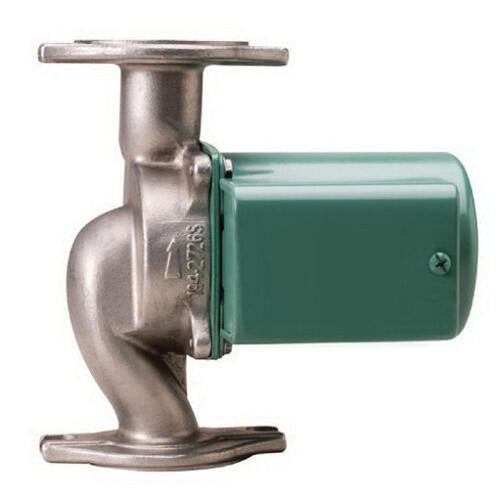

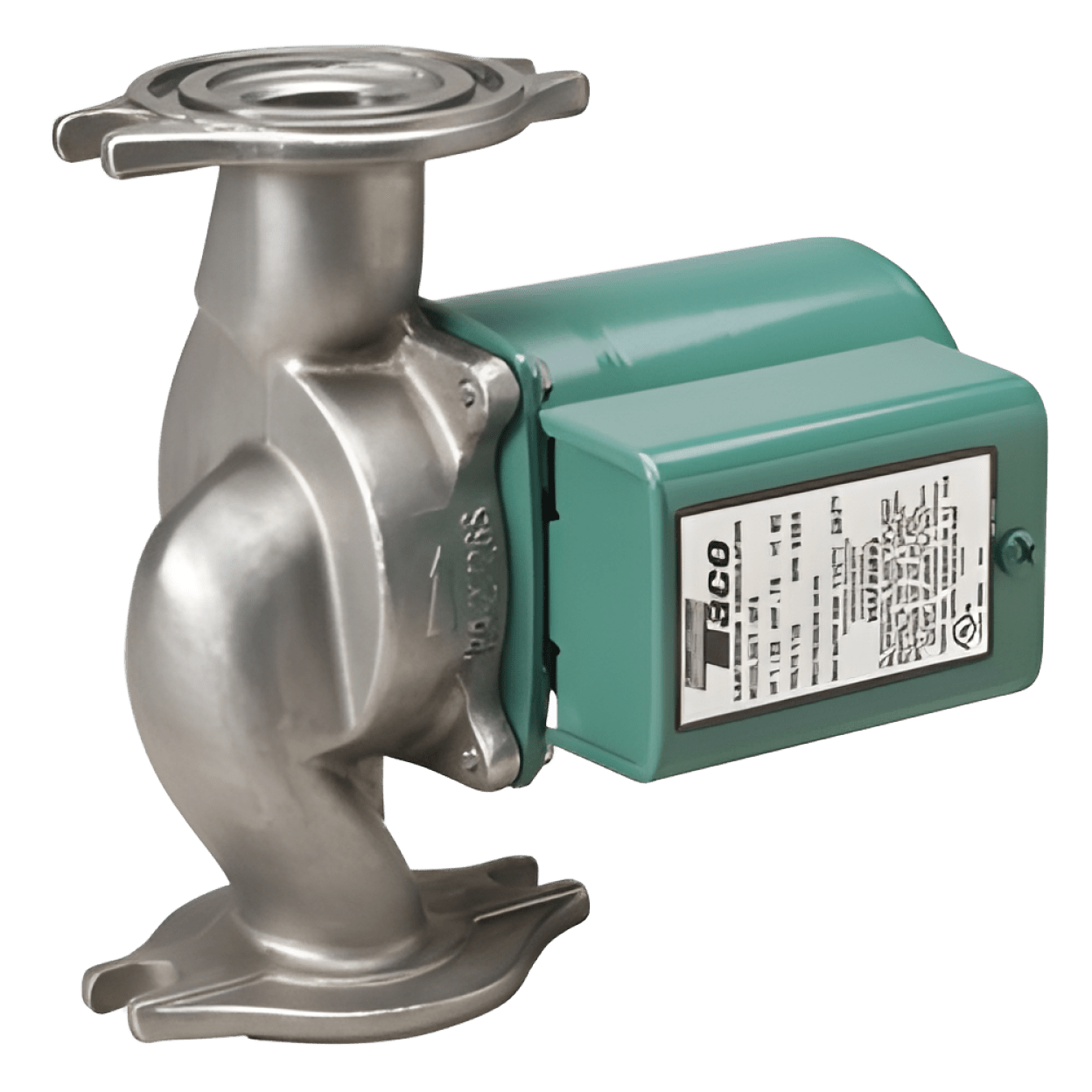

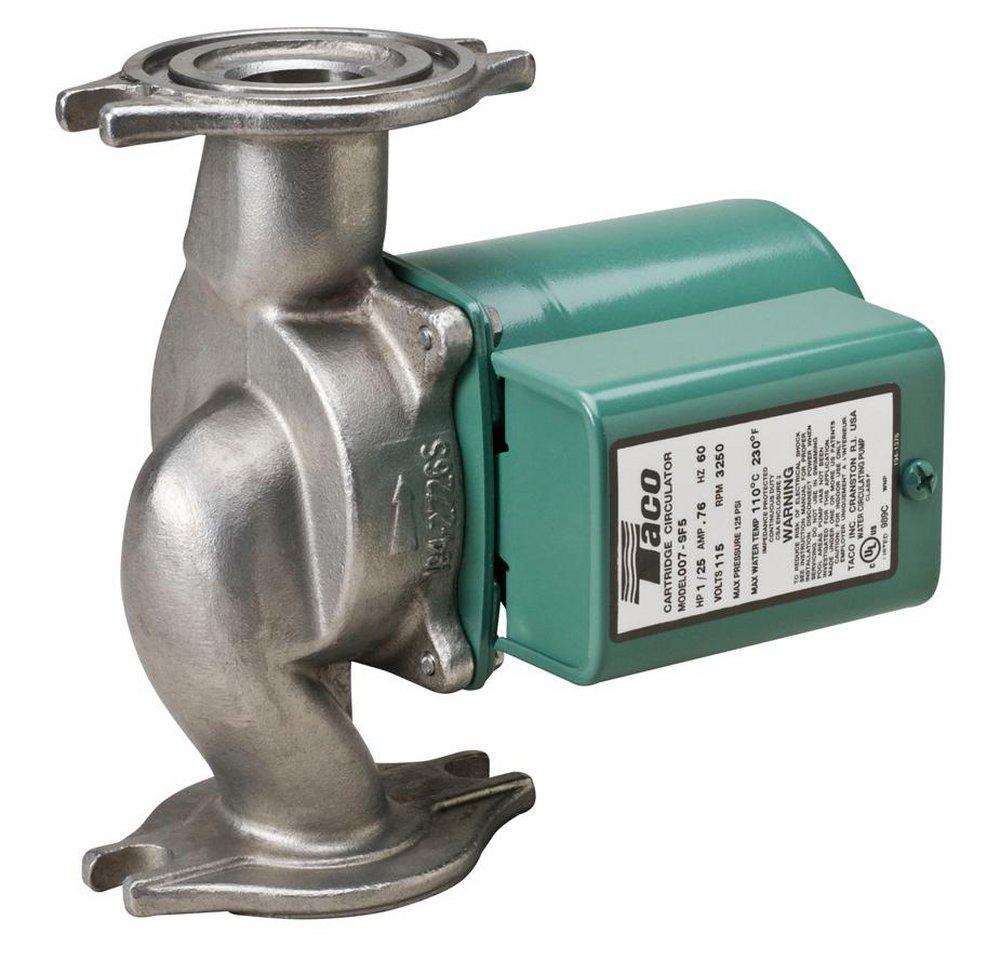

The Taco 007-SF5 Stainless Steel Flanged Cartridge Circulator Pump, with a maximum pressure of 125 PSI and operating at 115V, is designed for optimal performance in hydronic heating, radiant heating, hydro-air fan coils, and domestic water recirculation systems.
- Field serviceable cartridge design
- Maintenance-free operation
- Self-lubricating
Product Highlights
This circulator pump delivers quiet and efficient operation, featuring a high capacity output in a compact design. The direct drive, low power consumption, and universal flange-to-flange dimensions ensure unmatched reliability and ease of installation. Its replaceable cartridge structure allows for easy servicing of the moving parts without needing to replace the entire unit.
Product Information
Standard Information
-
Brand: Taco
-
Model: 007-SF5
-
Use Case: Hydronic heating, radiant heating, hydro-air fan coils, indirect water heaters, domestic water recirculation systems
Technical Specifications
-
Horsepower: 1/25 HP
-
Voltage: 115V
-
RPM: 3250
-
Flow Rate: 23 GPM
-
Head: 10 ft
-
Material: Stainless Steel
-
Max Fluid Temperature: 230°F
-
Pressure Rating: 125 PSI
