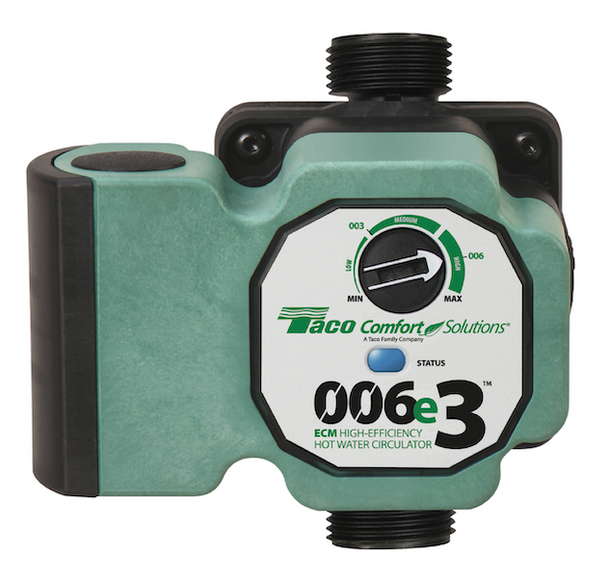

Taco 006E3LC ecm high efficiency circulator 44 W

Product Description

The TACO 006E3LC is a composite ECM high-efficiency circulator with a 6FT cord and an ECM permanent magnet motor. It is designed for hot water recirculation and hydronic heating applications. With 3 settings, the 006e3 delivers performance, reliability and ease of installation.

• Easy installation
• Compact design for tight spaces
• High-efficiency ECM motor uses up to 85% less electricity

Product Highlights

The TACO 006E3LC is a high-efficiency circulator with an ECM permanent magnet motor, perfect for hot water recirculation and hydronic heating applications.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-006E3LC

Technical Specifications

• Brand: Taco
• Model: 006e3LC
• Power Cord Included: 6'
• Material: Composite
• Max Pressure (PSI): 150 psi
• Watts: 44
• Connection Size: 1/2"
• Flow Range (GPM): 0-11
• Max Flow: 11
• Head Range (FT): 0-13
• Max Head (FT): 13
• Phase: Single
• RPM: 1440 - 3750
• Connection: 1/2" Sweat
• Hertz: 60
• Type: 1-Phase High Efficiency
• Series: 006e3
• Flow Rate: 11 gpm
• Maximum Head: 13 ft Shut-Off
• Power Rating: 44 W
• Voltage Rating: 120 VAC
• Amperage Rating: 0.54 A
• Frequency Rating: 60 Hz
• Maximum Pressure: 150 psi
• Speed: 3720 rpm
• Number of Speeds: 3
• Cord Type: 6 ft Power
• Motor Type: ECM, Permanent Magnet, Thermally Protected
• Temperature Rating: 36 to 203 deg F Water
