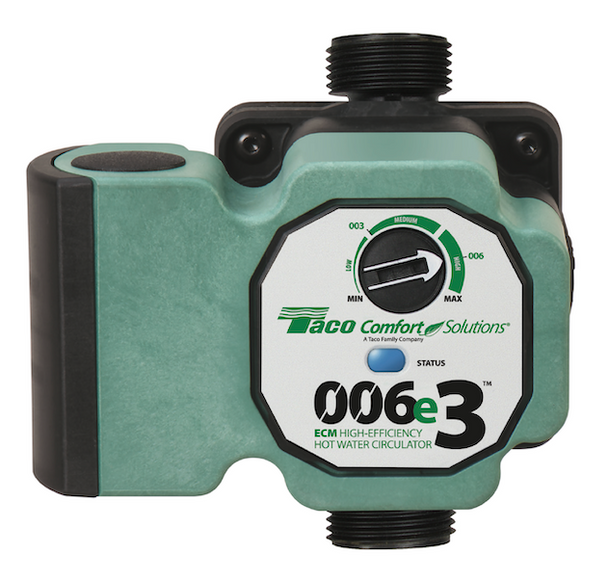

TACO 006E3-075 ECM High-Efficiency Hot Water Circulation Pump

Product Description

The TACO 006E3-075 is a wet rotor circulator designed for hot water recirculation and hydronic heating systems. This pump features a variable speed ECM permanent magnet motor, allowing efficient operation. It includes three different speed settings to match various system demands. Constructed from composite materials, it provides double insulation and does not require a ground wire. The pump utilizes a SureStart system that automatically purges air and clears blockages. Its compact design allows for easy installation in confined spaces.

• Designed for hydronic systems and hot water recirculation.
• Incorporates a high-efficiency ECM motor with variable speed.
• Comes with a six-foot power cord for flexible installation.

Product Highlights

This pump optimizes heating systems through efficient water circulation. It is suitable for residential and commercial applications.

Product Information

Standard Information

• Product Line: 00 Series
• Type: Circulator

Technical Specifications

• Motor Type: Variable Speed
• Maximum Flow Rate: 11 GPM
• Maximum Head: 13 Feet
• Fluid Temperature: 203 F
• Operating Pressure: 150 PSI
• Speed: 3720 rpm
• Voltage: 120 Volts
• Power Consumption: 44 Watts
• Current Draw: 0.54 Amps
• Frequency: 60 Hz
• Phase: 1
• Height: 5 1/8 Inches
• Width: 5 1/8 Inches
• Depth: 5 1/2 Inches
• Weight: 3.5 Pounds
• Power Cord Length: 6 Feet
• UL Listed: Yes
• Warranty: 3 Years
• Number of Speeds: 3
