Product Description

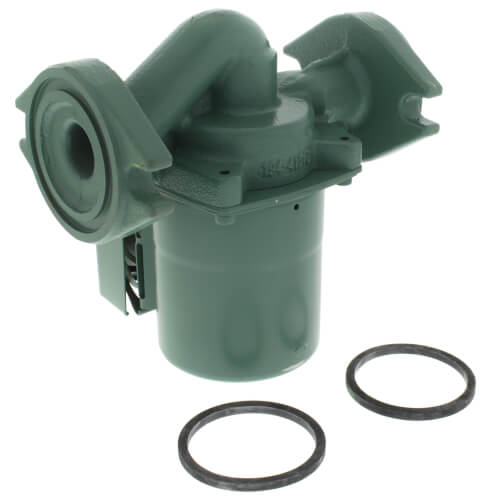

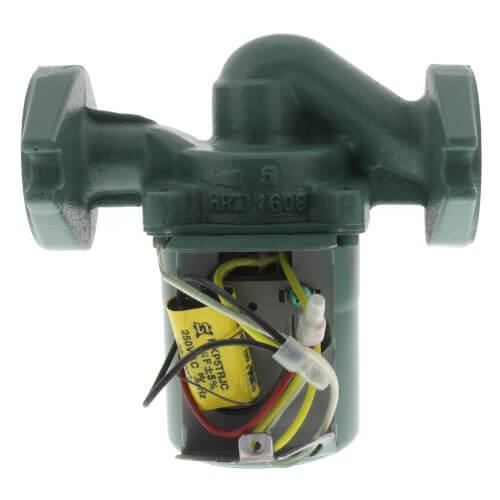

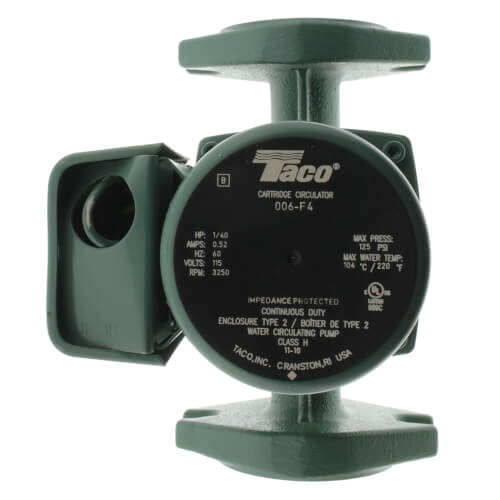

The Taco 006-F4 circulator pump is designed for a variety of closed loop applications to circulate hot or cold water efficiently. Its flanged, cast iron construction ensures durability and reliability in HVAC systems. This pump features a unique replaceable cartridge containing all moving parts, making it simple to service without replacing the entire unit. The efficient design minimizes power consumption, suitable for high efficiency tasks.
- Standard high capacity output
- Quiet and efficient operation
- Easy to service with replaceable parts
Product Highlights
The Taco 006-F4 is a versatile circulator pump designed for various applications in heating and cooling systems. Its maintenance-free design and low power consumption make it ideal for high-efficiency jobs.
Product Information
Standard Information
-
Flow Range: 0-10 GPM
-
Head Range: 0-9 feet
-
Minimum Fluid Temperature: 40°F
-
Maximum Fluid Temperature: 220°F
-
Maximum Working Pressure: 125 PSI
-
Connection Sizes: 3/4, 1, 1-1/4, 1-1/2 inches
Technical Specifications
-
Brand: Taco
-
MPN: 006-F4
-
Material: Cast iron
-
Horsepower: 1/40 HP
-
Voltage: 115V
-
Amperage: 0.52
-
Max Flow: 10 GPM
-
Max Head: 9 feet
-
Maximum RPM: 3250
-
Connection Type: Flanged x Flanged
-
Weight: 6.97 pounds
-
Dimensions: 6.88 inches (Length), 6.75 inches (Width), 5.63 inches (Height)
