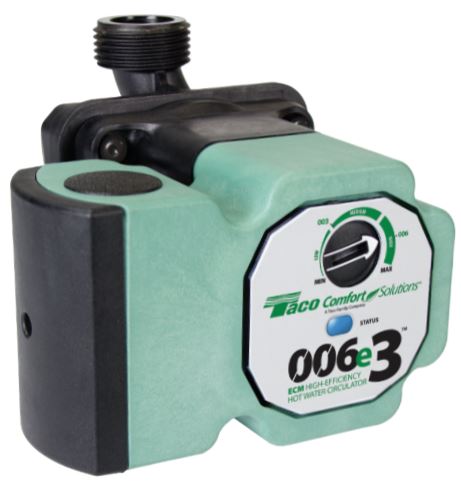

Taco 006-E3 ECM High Efficiency Hot Water Circulator

Product Description

The Taco 006-E3 is an ECM high-efficiency circulator pump suitable for residential and light commercial applications. This pump features a PSC motor, offering up to seventy percent energy savings compared to traditional circulator pumps. The maximum flow rate is eighteen gallons per minute, with a maximum head of twenty feet. It is also self-priming and includes a built-in check valve.

• ECM motor provides energy savings
• Maximum flow of eighteen gallons per minute
• Self-priming with built-in check valve

Product Highlights

Applications include hydronic heating, solar heating, geothermal systems, snow melting, and pool circulation. The pump is compatible with Taco's iSeries controls for remote monitoring.

Product Information

Standard Information

• Brand: Taco
• MPN: 006-E3

Technical Specifications

• Frequency Rating: 60 Hz
• Voltage Rating: 120 V
• Maximum Flow Rate: 18 gpm
• Maximum Shut-Off Head: 20 feet
• Maximum Operating Pressure: 150 psi
• Maximum Water Temperature: 203 degrees F
• Minimum Water Temperature: 36 degrees F
• Wattage: 44 W
• Amperage: 0.54 A
• Material: Composite casing, ceramic shaft, EPDM O-rings and gaskets
