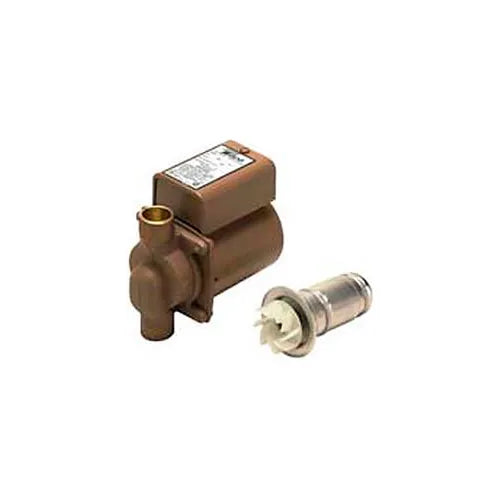

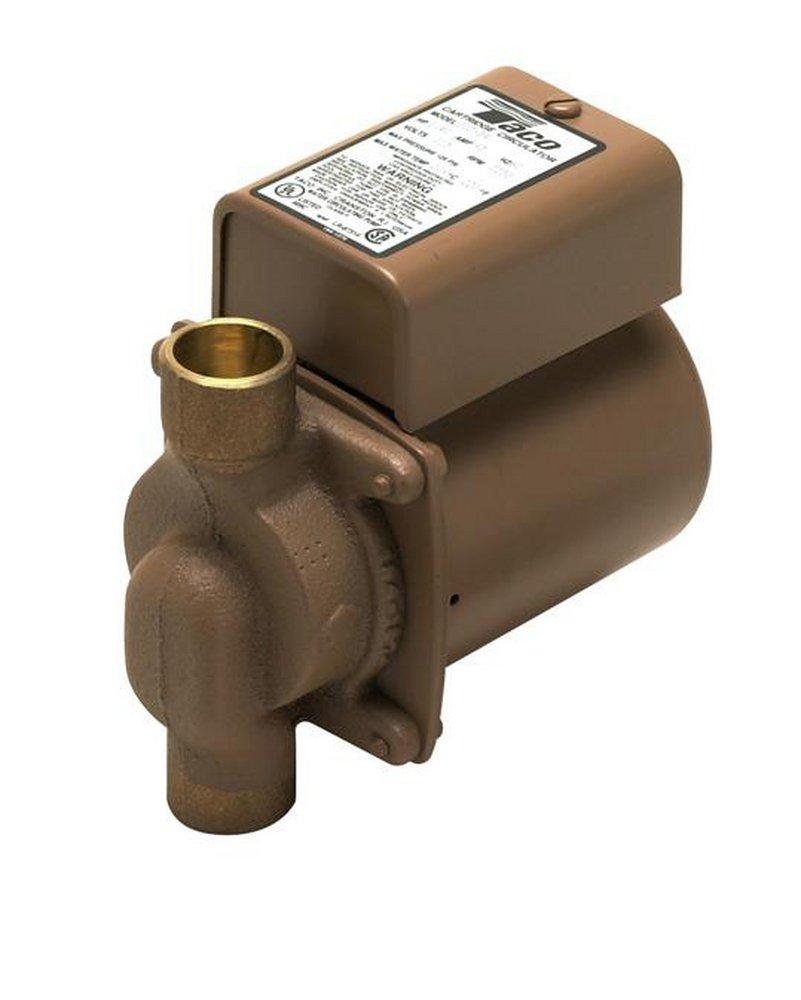

The TACO 006-B4 circulator pump is a single-speed circulator for hydronic systems and domestic hot water recirculation that operates at 115 volts. It features a 3/4-inch sweat connection, a compact footprint (approximately 5 x 4 x 7 inches) and a low-power 1/40 HP motor providing flow up to 10 GPM and a flow range of 0-10 GPM. The unit uses a replaceable cartridge design for serviceability.
Key Features
Operates at 115 V AC, single-phase, 60 Hz with 1/40 HP motor and approximately 0.52 A current
3/4-inch sweat connection, flow range 0-10 GPM and maximum head up to 9 ft (maximum flow 10 GPM)

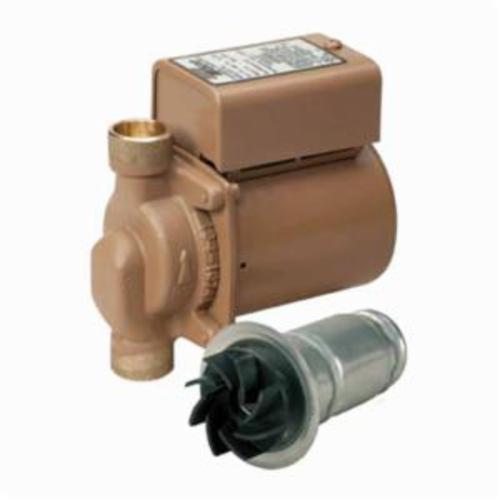

Replaceable cartridge design; compact dimensions approximately 5 x 4 x 7 inches and unit weight about 4.55 pounds
WARNING:
This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Technical Specifications
Input Voltage
115 V AC
Horsepower
1/40 HP
Current
0.52 A
Frequency
60 Hz
Phase
Single phase
RPM
3250 rpm
Maximum Flow Rate
10 GPM
Flow Range
0-10 GPM
Maximum Head
9 ft
Head Range
0-9 ft
Connection Type
Sweat
Connection Size
3/4 inch
Material
Cast iron
Dimensions
5 x 4 x 7 inches
Weight
4.55 pounds
Minimum Fluid Temperature
40 F
Maximum Fluid Temperature
220 F
Maximum Working Pressure
125 psi
Design
Replaceable cartridge; self-lubricating; no mechanical seal
Typical Application
Hydronic heating; domestic hot water recirculation; hydro-air systems; heat recovery; water source heat pumps; solar drain-down systems; potable water
