Product Description

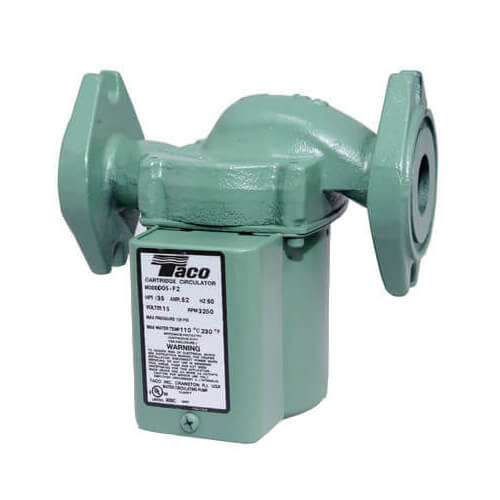

The Taco 005-F2-2IFC features an integral flow check designed to simplify installation and reduce costs for systems like hydronic heating and radiant panels. By incorporating the flow check within the pump casing, this model eliminates the need for separate in-line checks, thereby reducing both installation time and expenses. This pump is ideal for applications such as hydro-air fan coils and indirect water heaters.
- Integral Flow Check (IFC) technology prevents gravity flow and enhances system efficiency.
- Easy serviceability with a replaceable cartridge design, ensuring long-term use and reliability.
- Energy efficient operation with a low-power consumption motor, making it suitable for continuous use.
Product Highlights
This circulator pump integrates multiple components into one compact unit, making it an optimal choice for zoning. It features a built-in transformer, relay, and priority switch, streamlining installation and use.
Product Information
Standard Information
-
Brand: Taco
-
Model: 005-F2-2IFC
-
Type: Cast Iron Circulator Pump
Technical Specifications
-
Power: 0.028 horsepower (1/35 HP)
-
Flow Range: 0-13.5 GPM
-
Max Head: 7.5 feet
-
Max Pressure: 125 PSI
-
Connection Sizes: 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch, 2 inch Flanged
-
Max Operating Temperature: 230 degrees Fahrenheit
-
Electrical Specs: 115V, 60 Hz, 0.52 Amp
