Product Description

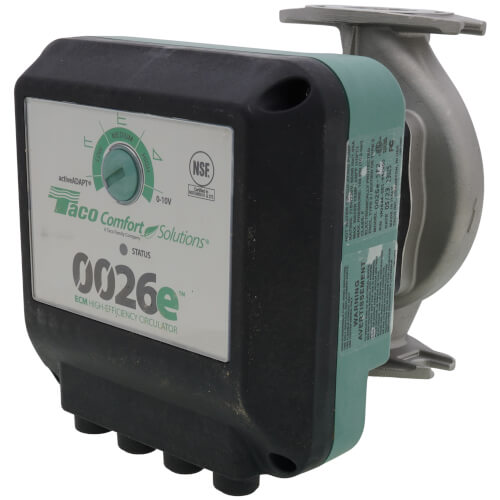

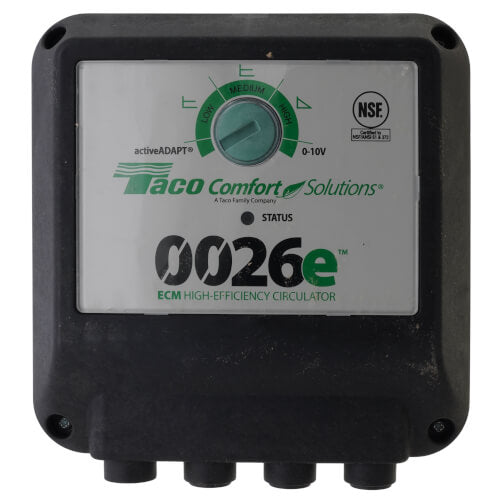

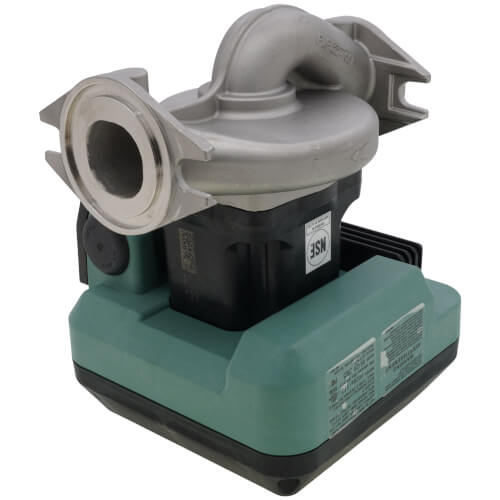

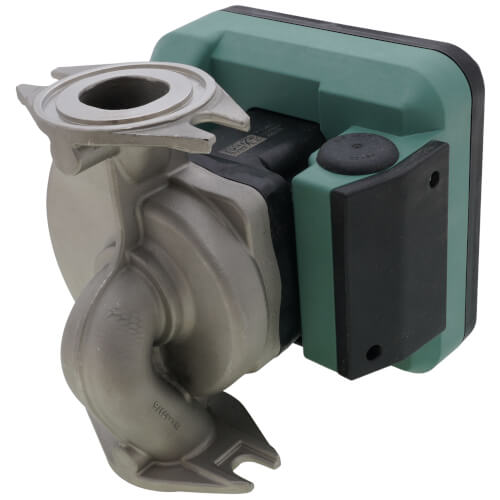

The Taco 0026E-SF2 is an ECM high-efficiency circulator designed for effective fluid movement in heating and cooling systems. This wet-rotor circulator employs advanced permanent magnet technology to maximize efficiency. It is ideal for use in large residential and light commercial hydronic heating, chilled water cooling, and domestic hot water systems.
- Operates with five variable speed settings for optimized performance.
- Reduces energy consumption by up to 85% compared to traditional circulators.
- Can achieve a maximum head of twenty-six feet and a flow rate of forty-four gallons per minute.
Product Highlights
This circulator is suitable for closed loop hydronic heating and various recirculation applications while providing whisper-quiet operation.
Product Information
Standard Information
-
Brand: Taco
-
MPN: 0026E-SF2
Technical Specifications
-
Max Shut-off Head: 26 ft
-
Max Flow: 44 gpm
-
Max Pressure: 150 psi
-
Max Temperature: 230°F
-
Min Temperature: 14°F
-
Voltage: 115/208/230V, 50/60Hz, Single Phase
-
Operating Power Range: 10 - 125W
-
Max Amperage: 1.05A
-
Flange-to-Flange Length: 6-1/2 inches
