Product Description

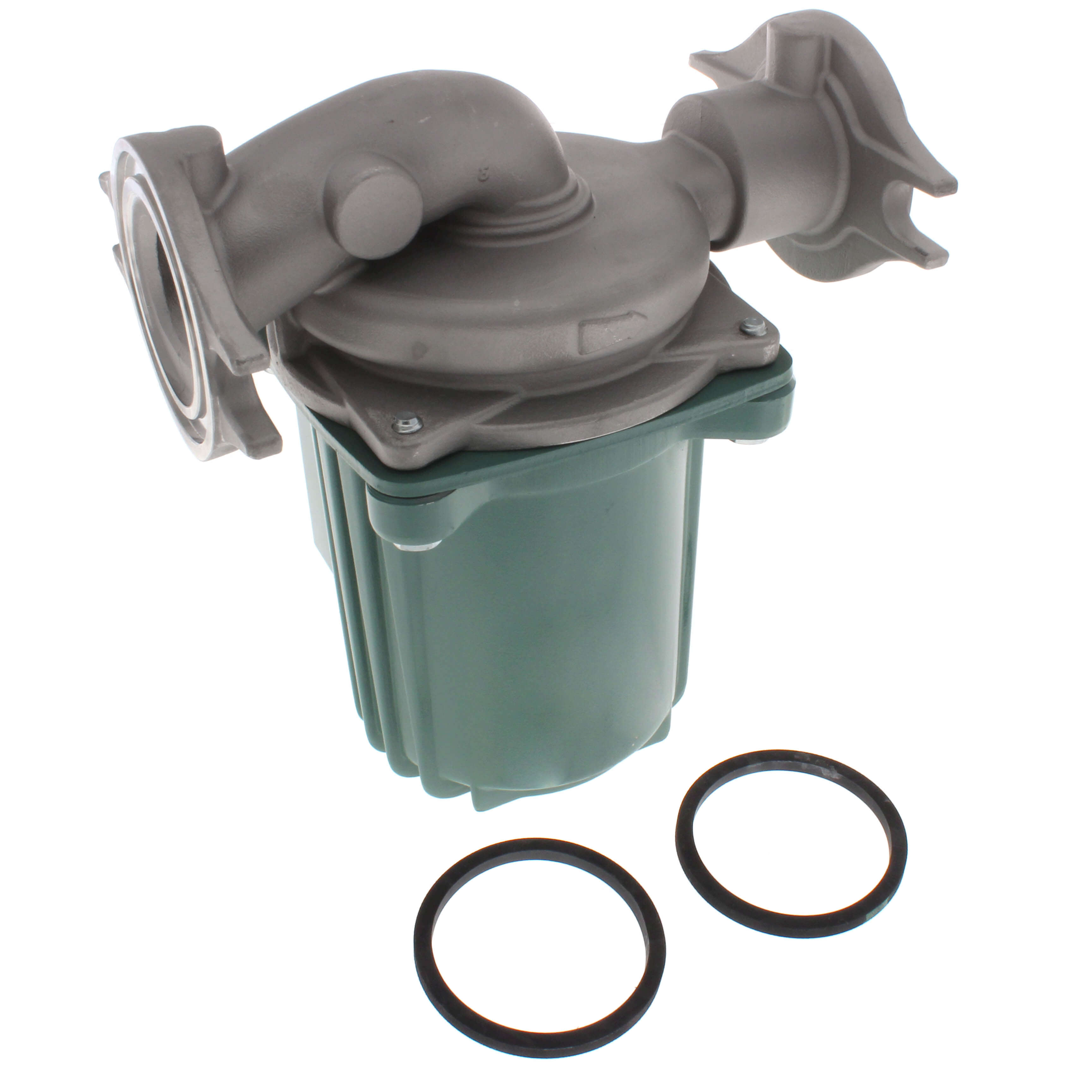

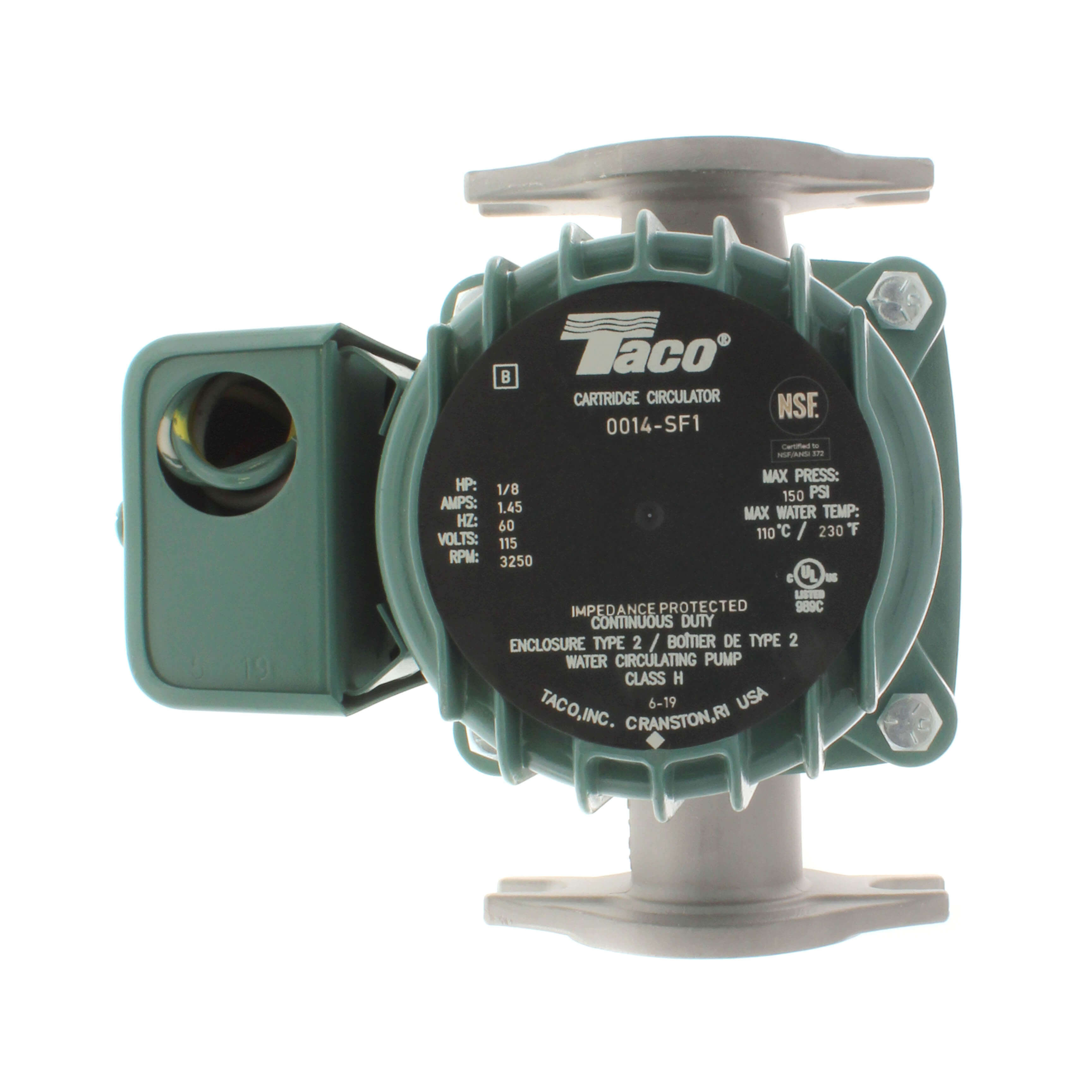

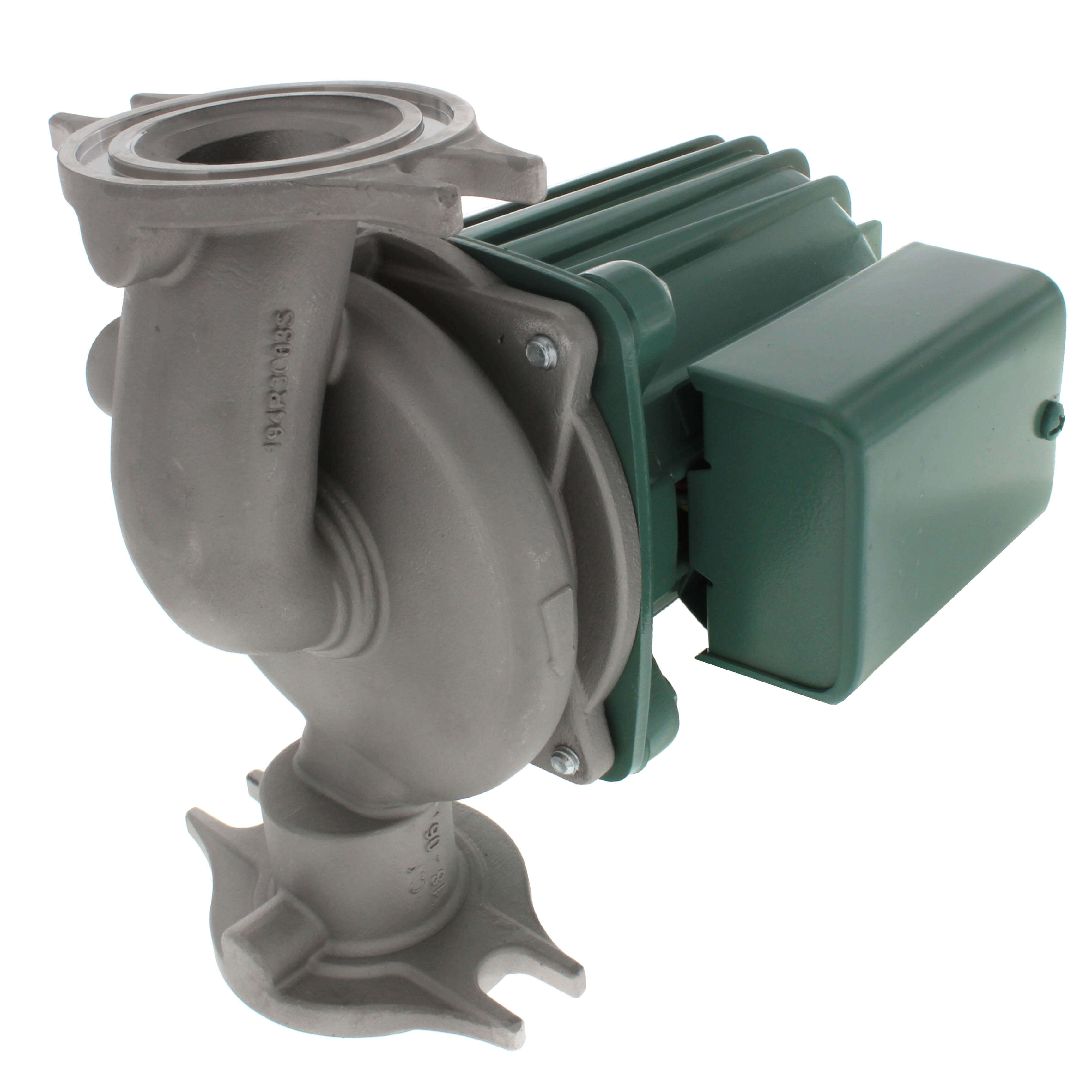

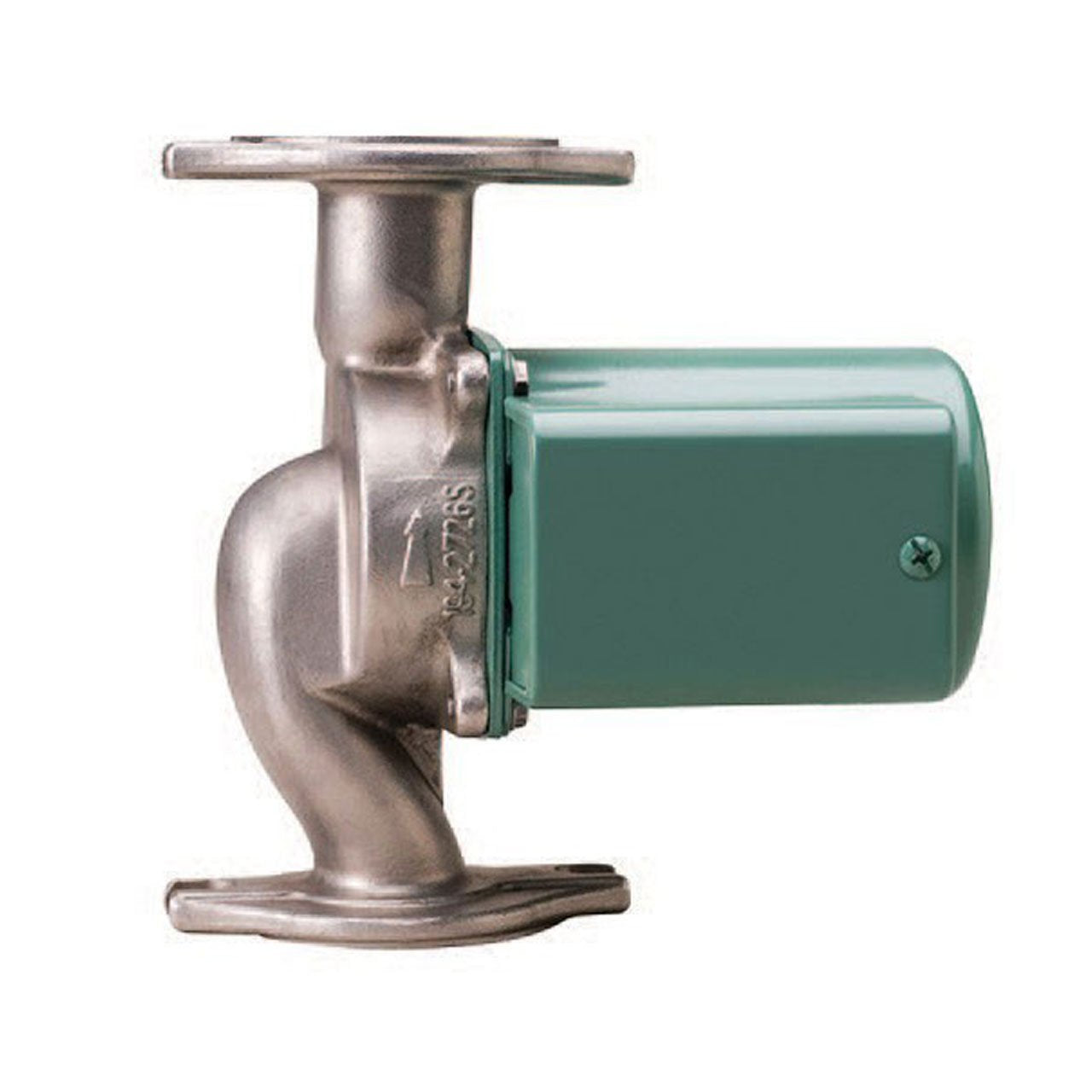

The Taco 0014-SF1 Stainless Steel Circulator is designed for medium head and flow applications in residential and light commercial systems. Ideal for large BTUH boilers and commercial water heaters. The replaceable stainless steel cartridge contains all moving parts for easy service. It is suitable for hydronic heating, radiant heating, and chilled water cooling.
- Features a replaceable stainless steel cartridge for easy maintenance.
- Designed for medium head/medium flow applications.
- Suitable for open loop systems.
Product Highlights
This Taco circulator is designed for efficient operation in a variety of heating and cooling applications, offering durability and easy maintenance.
Product Information
Standard Information
-
Brand: TACO
-
Manufacturer Part Number: 0014-SF1
-
Country of Origin: United States
Technical Specifications
-
Brand: Taco
-
MPN: 0014-SF1
-
Voltage: 115V AC
-
Horse Power: 1/8 hp
-
Phase: 1
-
Connection Style: Flange
-
Inlet/Outlet Size: 3/4 in to 1-1/2 in
-
Shut-Off: 22 ft
-
Housing Material: Stainless Steel
-
Max. GPM @ Head: 31 gpm @ 1 ft
-
Series: 0014-sf1
-
Face to Face Dimension: 6 1/2 in
-
Best Efficiency GPM @ Head: 16 gpm @ 12 ft
-
Min. GPM @ Head: 4 gpm @ 20 ft
-
Drive Type: Direct
-
Length: 7 1/4 in
-
Width: 5 3/8 in
-
Loop Configuration: Open
-
Flange/Union Included: No
-
RPM: 3250 RPM
-
Frequency: 60 Hz
-
Amperage: 1.55
-
Material: Stainless Steel
-
Warranty: 3 Year
-
Application: Heating
-
Max Head (Ft): 22
-
Max Flow (GPM): 32
-
Connection Size: 3/4", 1", 1-1/4", 1-1/2"
-
Connection Type: Flanged x Flanged
-
Flow Range (GPM): 0-32
-
Head Range (ft.): 0-22
-
Max Pressure (PSI): 125 psi
-
Temperature Range (F): 40°F to 230°F
-
Motor Phase: 1 Ph
-
Motor Hertz: 60 Hz
-
Pump Construction: Stainless Steel-SS
-
Pump Class: Booster
-
Pump Mounting: In-Line
-
Pump Connection Size: 3/4", 1", 1-1/4", 1-1/2"
-
Pump Connection: Flanged
-
Flanges Included: No
-
Motor HP: 1/8 HP
-
Motor RPM: 3250 RPM
-
Motor Voltage: 115V
-
Motor Enclosure: ODP
-
Working Pressure: 150 psi
-
Max Temp: 230°F
-
Potable Water: No
-
Stages: 1 STG
-
End Connection: Flange
-

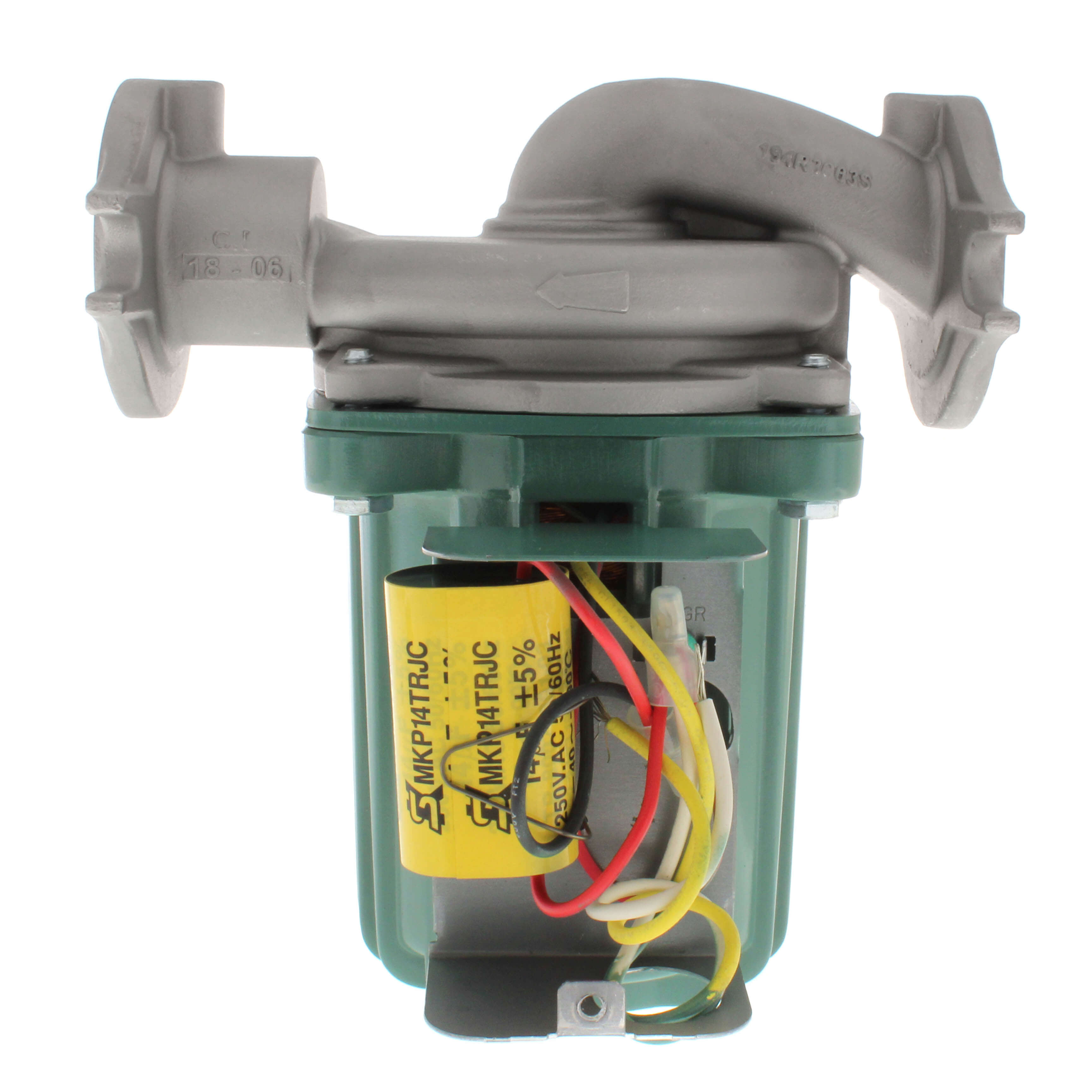

Motor Type: Permanent Split Capacitor Impedance Protected 115/60/1
-
Casing Material: Stainless Steel
-
Cartridge Type: Stainless Steel
-
Seal Material: EPDM
-
Head Range: 0 to 22FT
-
Compatible Intake Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
-
For Use With Potable Systems: Yes
-
Overall Width: 5.38 in
-
Overall Height: 6.5 in
-
Overall Length: 7.25 in
-
Shaft Material: Ceramic
-
Mechanical Seal: No
-
Impeller Material: Noryl(R)
-
Thermal Protection: Impedance
-
Body Gasket Material: EPDM
-
Compatible Media Type: Water
-
Pump Housing Material: Stainless Steel
-
Max. Operating Pressure: 125 psi
-
Maximum Media Temperature: 230 Degrees F
-
Minimum Media Temperature: 40 Degrees F
-
HVAC Circulating Pump Type: Potable Water Circulating Pump
-
Compatible Discharge Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
-
Country of Origin (subject to change): United States
