T&S Brass B-2360 Bubbler

Product Description

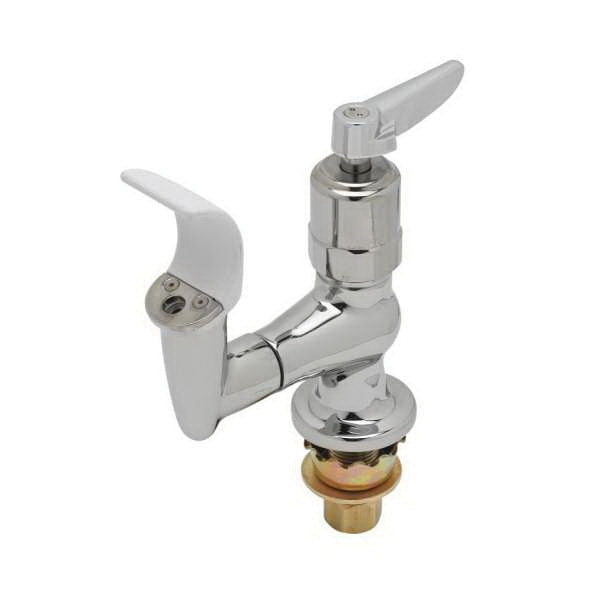

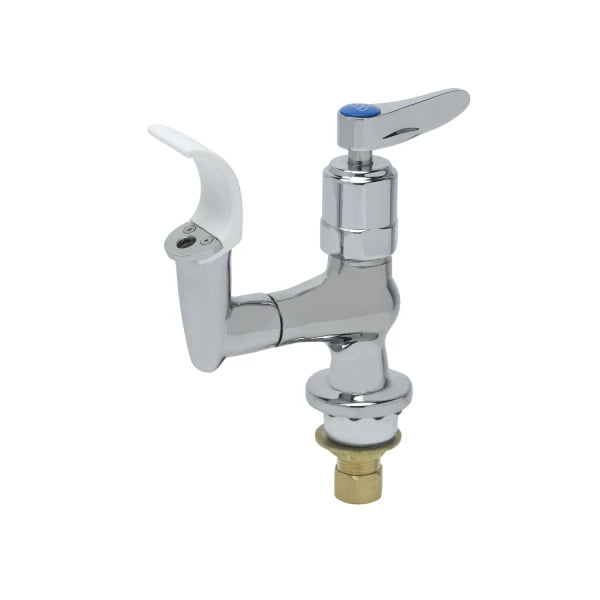

The T&S Brass B-2360 is a brass deck mount bubbler featuring a polished chrome-plated brass body and a flexible mouth guard. A hidden flow control screw allows for adjustable outlet-flow. It has a fast self-closing cartridge and a lever handle with a vandal-resistant screw. The bubbler includes a 1/2 in NPSM male inlet with coupling nuts.

• Deck mount bubbler with polished chrome-plated brass body and flexible mouth guard
• Hidden flow control screw provides adjustable outlet-flow
• Fast self-closing cartridge

Product Highlights

This bubbler features a polished chrome-plated brass body, flexible mouth guard, and vandal-resistant screw, certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-2360
• Country of Origin: United States

Technical Specifications

• Finish: Chrome-Plated
• Item Name: Bubbler
• Material: Brass
• Mounting: Deck
• Standards/Certifications: ASME A112.18.1, BAA/ARRA, CSA B125.1, ANSI/NSF 61 and 372 certified
• Country of Origin (subject to change): United States
• Body: Single Temp
• Body Mount: Deck
• Cartridge-Spindle: Fast Close
• Feature: Vandal Resistant Handle Screws
• Handle: Lever
• Inlet: 1/2 in NPSM Male
• Nozzle Flow: 0.32 GPM (1.21 L/min)
• Nozzle Outlet Type: Flow Regulator
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Brand: T&S
• MPN: B2360
• Model: B-2360
• Item Height: 4 in
