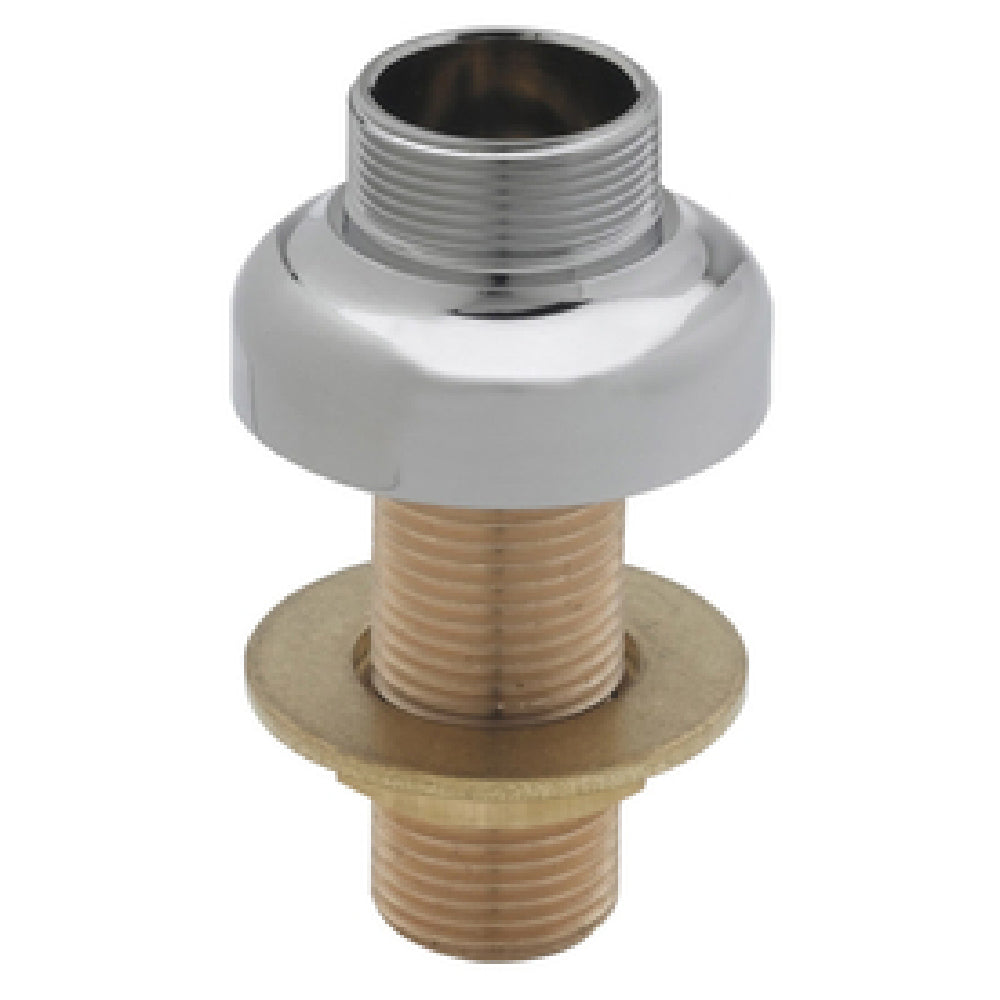

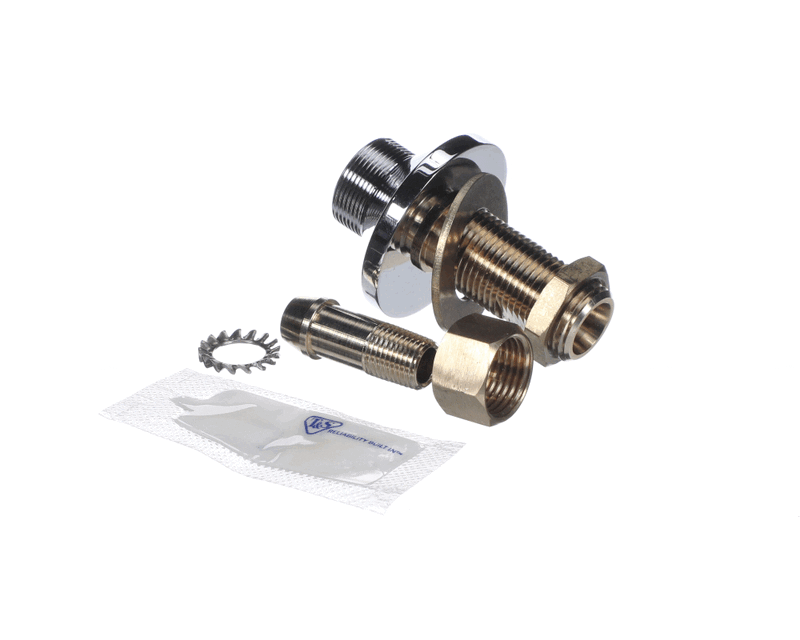

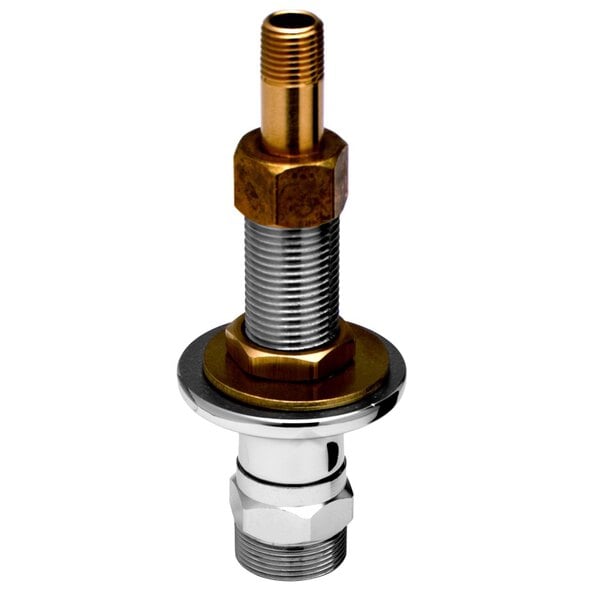

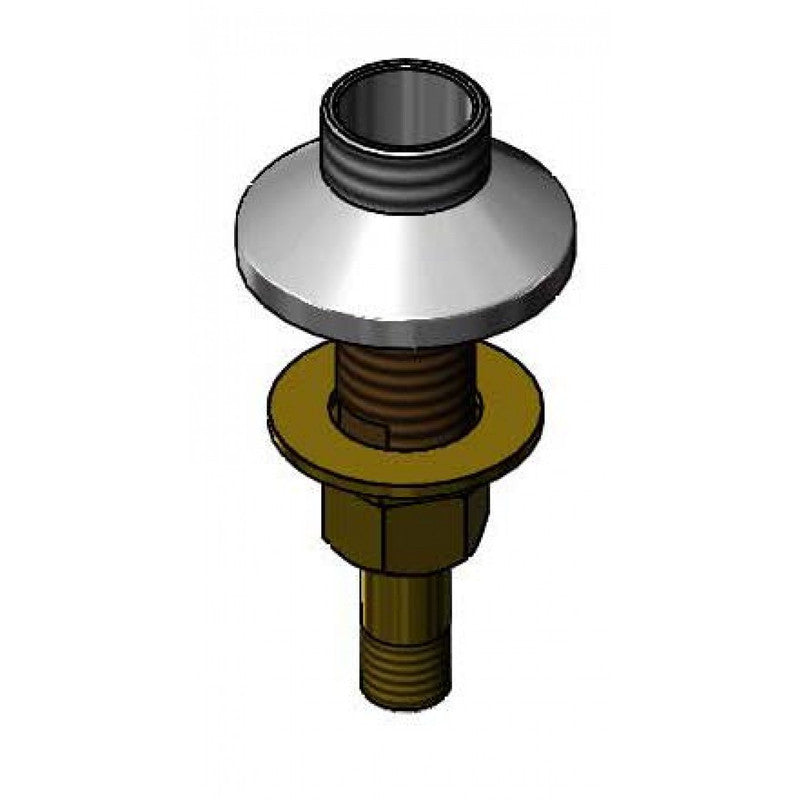

T&S Brass B-0431 Swivel Base Flange

Product Description

The T&S Brass B-0431 2" swivel base flange features a 1-20 UN threaded outlet, and a 1/2" NPT lock nut and washer. This deck mount assembly accepts standard T&S swing nozzles and goosenecks. It is certified to ASME A112.18.1/CSA B125.1, NSF 61- Section 9 and NSF 372.

• Swivel/Rigid Base Assembly
• Deck Mount
• Accepts Standard Swing Nozzles & Goosenecks

Product Highlights

Durable brass construction ensures longevity. Ideal for faucet assemblies requiring reliable plumbing connections.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0431
• Country of Origin: America

Technical Specifications

• Outlet: 1-20 UN threaded outlet accepts standard T&S swing nozzles
• Lock Nut and Washer: 1/2" NPT lock nut and washer
• Base Flange: 2" swivel base flange
• Rigid Application: Lock washer provided for rigid application
• Material: Brass
• Certifications: ASME A112.18.1 / CSA B125.1, NSF/ANSI 372 (Lead Content), NSF/ANSI/CAN 61 Q≤1
• Ideal for: Faucet assemblies
• Parts: Adaptors & Nuts
• Manufacturer: T&S Brass
• Type: Swivel to Rigid Adapters
• Model Number: B-0431
• Manufacturer Part #: B-0431
• Length: 4.95 in / 12.57 cm
• Width: 4.35 in / 11.05 cm
• Height: 3.4 in / 8.64 cm
