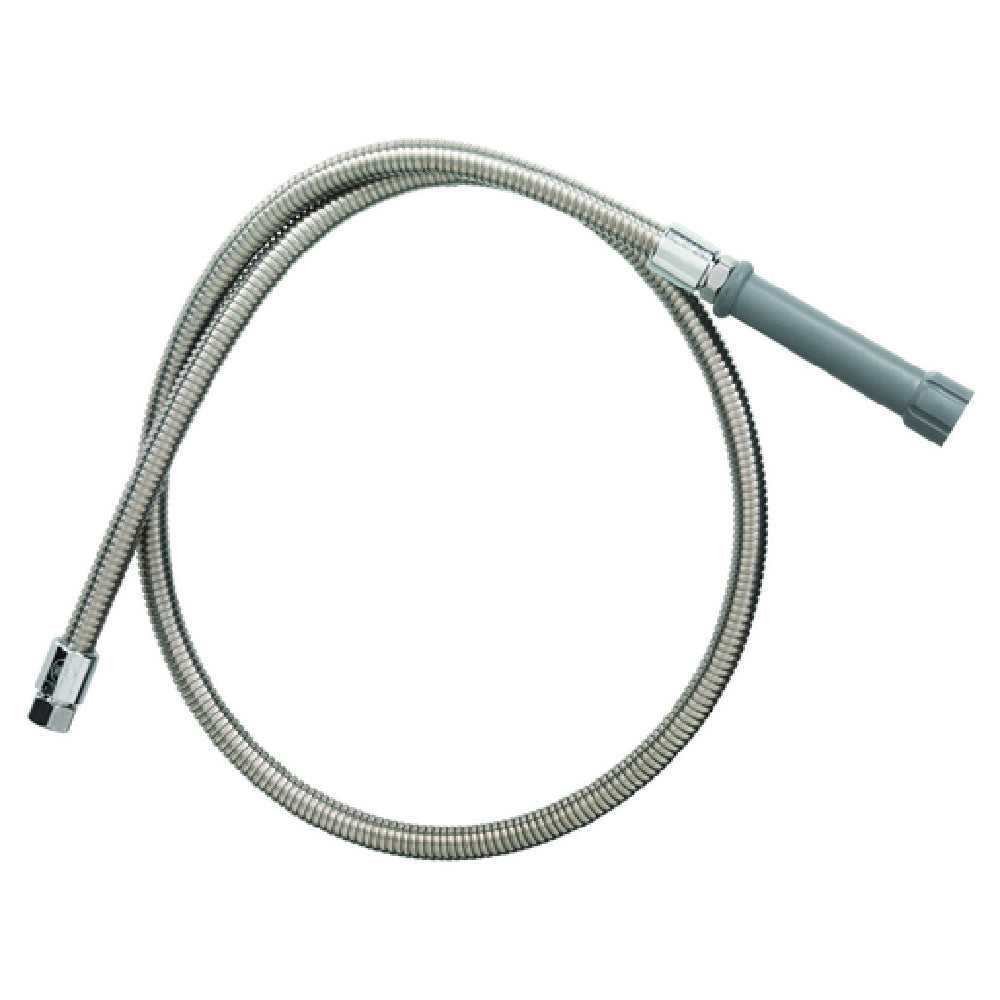

T&S Brass B-0080-H Hose 80 inches Flexible Stainless Steel

Product Description

The T&S Brass B-0080-H Hose is an 80" flexible stainless steel hose with heat resistant handle, 3/4-14 UN female outlet and 3/4-14 UN female inlet. It is certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. The hose features a polyurethane liner.

• 80" flexible stainless steel hose with heat resistant gray handle
• Hose washers included
• Material: Polished chrome plated brass end fittings, thermoplastic handle and stainless steel hose

Product Highlights

This T&S Brass hose is designed for pre-rinse applications and offers flexibility and durability for demanding environments.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0080-H
• Country of Origin: America

Technical Specifications

• Nozzle Flow: 6.09 GPM (23.05 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Inlet: 3/4-14 UN female inlet
• Outlet: 3/4-14 UN female outlet
• Material: Polished chrome plated brass end fittings, thermoplastic handle and stainless steel hose
• Maximum Pressure: 125 Pound per Square Inch
• Nominal Wall Thickness: 0.035 inches
• Outside Diameter: 40 Millimeters
• Type: Hoses
• Brand: T&S
• MPN: B0080H
• Model: B-0080-H
• Length: 80 inches
• Manufacturer: T&S Brass
• Model Number: B-0080-H
• Manufacturer Part #: B-0080-H
• UPC: 671262000499
