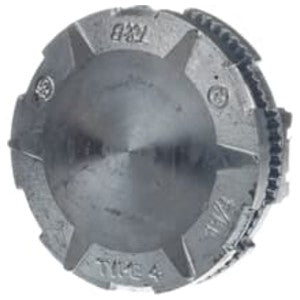

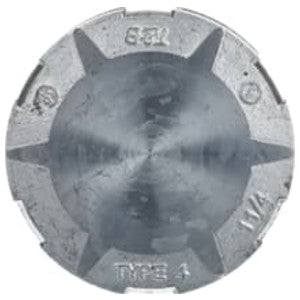

T&B H125CAP 1-1/4 Capoff

Product Description

The T&B H125CAP is an IMC/Rigid Conduit Cap Off. It features a round type design with a trade size of 1-1/4 inch and a diameter of 2-3/8 inch. Constructed from zinc, it meets NEMA 3R/4/13 standards and is UL and CSA approved. Includes a thermoplastic insulating throat and sealing ring.

• IMC/Rigid Conduit Cap Off
• 2-3/8 Inch Diameter
• UL, CSA Approval

Product Highlights

The T&B H125CAP is ideal for use with IMC/Rigid Conduit, providing a secure and environmentally protected termination.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: H125CAP
• Country of Origin: Canada

Technical Specifications

• Type: Round Type
• Trade Size: 1-1/4 Inch
• Diameter: 2-3/8 Inch
• Constructional Feature: NEMA 3R/4/13
• Material: Die-Cast Zinc (Body), Thermoplastic (Insulating), Nitrile (Sealing Ring)
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Includes: Thermoplastic Insulating Throat, Sealing Ring
• Special Features: Insulating Throat with a Thermoplastic Temperature Rating of 105 Degrees Celsius
• Application: For Use with Rigid/IMC Conduit
• Brand Name: T&B Rigid Fittings
• Standard: UL E23018, CSA
• Outside Diameter: 2-3/8 in
• Length: 1-25/32 Inch
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Nominal size in inch: 1 1/4 inch
• Model: Straight
• Revolving thread: N
• Connection type screw connection to housing: Thread
• Thread type: NPT
• Material housing: Zinc die-cast
• Approved in combination with protective conduit CSA: Y
• Approved in combination with protective conduit UL: Y
• Throat Type: Insulated
