T&B ADFS-3 Device Box Power Type FS Dead End Deep Style Replacement MPN

Product Description

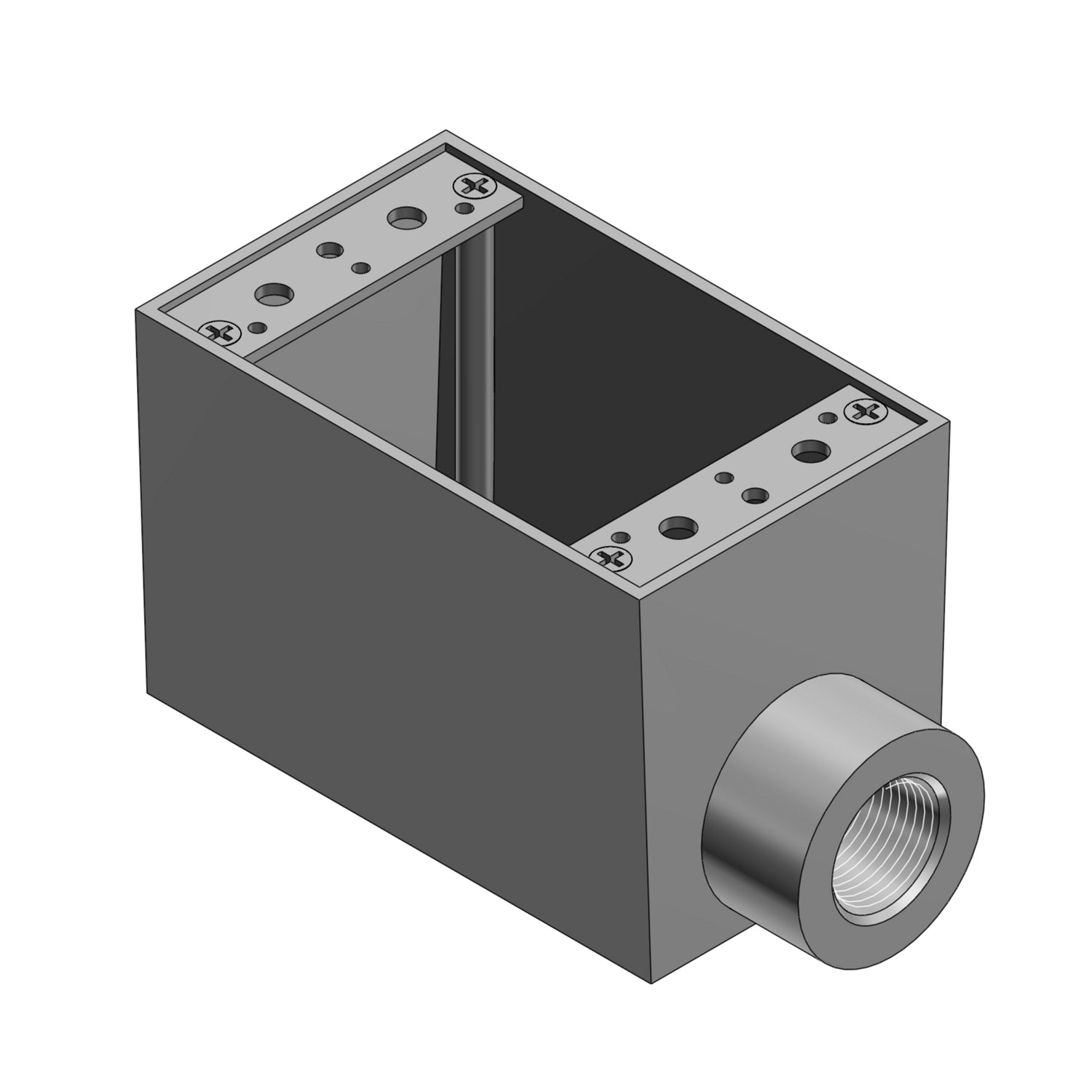

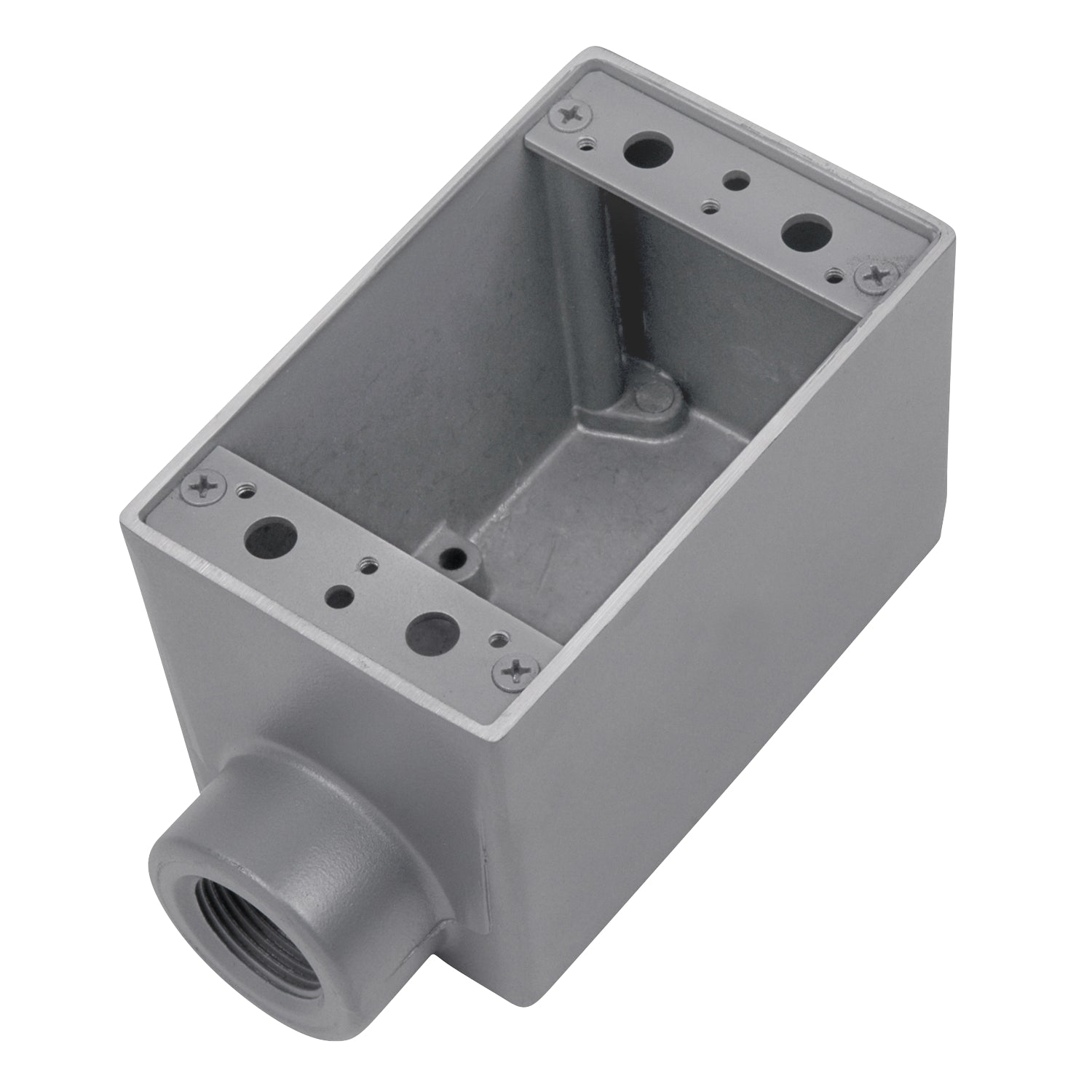

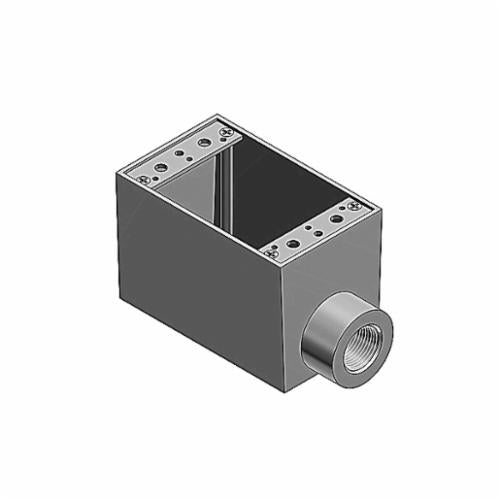

T&B ADFS-3 is a Type FS Dead End Deep Style Device Box. This device box is made from die cast aluminum and offers a capacity of thirty-one point three cubic inches. It features one gang, one outlet, and one knockout. The dimensions are four point nine six inches in height, two point thirteen sixteenths inches in width, and three point one six inches in depth.

• Constructed from die cast aluminum
• Surface mounting with a NPT hub for cable entry
• Designed for use in dry, damp, and wet locations

Product Highlights

This device box is suitable for various applications where durable connections are needed. The rugged design and industrial-grade features ensure reliability in service.

Product Information

Standard Information

• Brand: T&B
• Type: Type FS Dead End Deep Style

Technical Specifications

• Material: Die Cast Aluminum
• Finish: Aluminum Lacquered
• Capacity: 31.3 cu-in
• Hub Size: 1 in
• Hub Style: NPT
• Mounting Type: Surface
• Dimensions: 4-9/16 in H x 2-13/16 in W x 3-1/16 in D
• Number of Gangs: 1
• Number of Outlets: 1
• Number of Knockouts: 1
• Cable Entry Size: Hub
