T&B 5358 2-1/2 90D INS L/T FLX CONN

Product Description

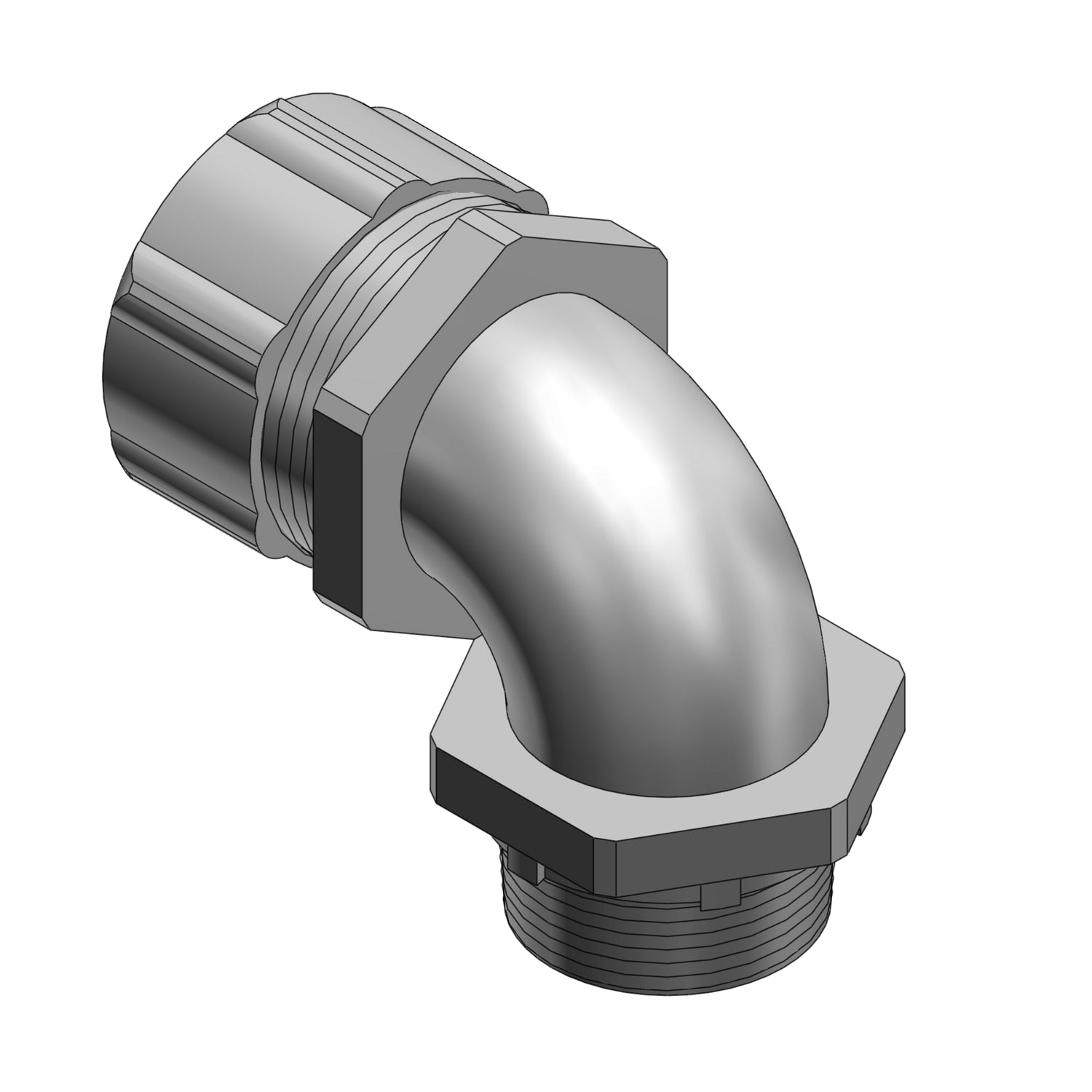

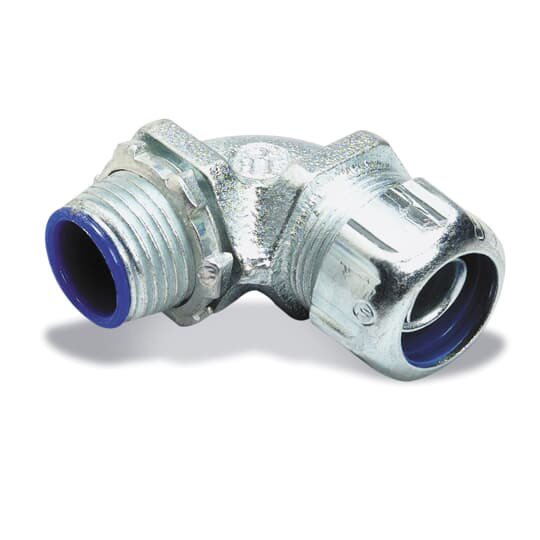

The T&B 5358 is a liquidtight flexible metallic conduit connector with a 90-degree angle and a thermoplastic insulated throat. It has a trade size of 2-1/2 inches and is constructed from zinc electroplated chromate coated malleable iron. It is UL 514-B and CSA C22.2 approved and used on liquidtight flexible metallic conduit.

• Liquidtight
• Flexible
• Metallic Conduit Connector

Product Highlights

This connector is designed for use with flexible metal raceways in environments with continuous or intermittent moisture, both indoors and outdoors.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 5358

Technical Specifications

• Type: 90 Deg
• Throat Type: Thermoplastic Insulated
• Trade Size: 2-1/2 Inch
• Material: Zinc Electroplated Chromate Coated Malleable Iron Body/Gland/Ground Cone/Locknut, Bright Dipped Copper Lug, Santoprene/Stainless Steel Sealing Gasket, Steel Strap, Thermoplastic Sealing Ring
• Approval: UL 514-B, CSA C22.2
• Used On: Liquidtight Flexible Metallic Conduit
• Application: Used where flexible metal raceway is installed in outdoor or indoor locations where exposed to continuous or intermittent moisture.
• Finish: Electro Zinc Plated/Chromate Coating
• Brand Name: T&B Liquidtight Fittings
• Standard: UL E23018, CSA
• Size: 2-1/2 Inch
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001180 Screw connection for protective metallic hose
• Nominal size in inch: 2 1/2 inch
• Model: 90°-elbow
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Thread
• Thread type: NPT
• Thread connection size: Other
• One-piece: N
• Material housing: Other
• Approved in combination with protective conduit CSA: Y
• Approved in combination with protective conduit UL: Y
• Angle: 90 deg
• Series: 53 Series
• Suitable For Use With: Liquid Tight Flexible Metal Conduits
• TC Connection: Plug-In
• Brand: Thomas & Betts (T&B)
• Product UPC: 78621005358
• Used With: EMT-Rigid Conduit
• Diameter: 63 mm
