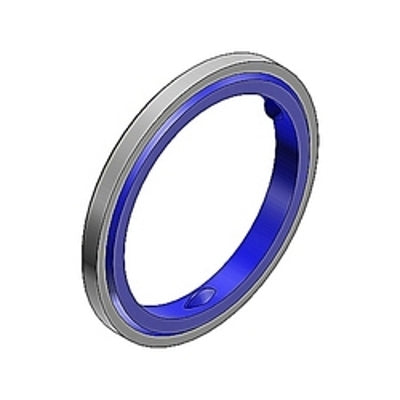

T&B 5268 2-1/2 L/T Sealing Ring

Product Description

The T&B 5268 2-1/2 L/T Sealing Ring is a liquidtight flexible conduit sealing gasket. Constructed with a 316 stainless steel retainer and Santoprene thermoplastic rubber sealing, it provides a tight seal against oil, fumes, or moisture at the knockout opening when used with an externally threaded connector. It is suitable for use with liquid tight flexible metal conduits.

• Liquidtight Flexible Conduit Sealing Gasket
• 316 Stainless Steel Retainer
• Santoprene Thermoplastic Rubber Sealing
• UL Approved
• CSA Approved

Product Highlights

The T&B 5268 sealing ring offers a robust design that locks the sealing material in stainless steel, protecting it from extrusion under torque and ensuring a high-quality seal.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 5268

Technical Specifications

• Trade Size: 2-1/2 Inch
• Material: 316 Stainless Steel (Retainer), Santoprene Thermoplastic Rubber (Sealing)
• Approval: UL, CSA
• Diameter: 3.44 Inch
• Thickness: 0.23 Inch
• Enclosure Type: NEMA 3R/4/6/13
• Seal Material: Thermoplastic Rubber
• Fits Bolt Sizes: 2-1/2 in
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001181 Sealing ring
• Model: Other
• Outer diameter: 87.4 mm
• Material quality: Other
• Fitting for thread size metric: 70
• Suitable for thread size NPT: 2 1/2 inch
• Outside Diameter: 3-7/16 Inch
• Size: 2 1/2 in
• Type: Liquidtight Sealing Gasket
• Brand: ABB
• Product UPC: 78621005268
• Suitable For Use With: Liquidtight Flexible Metal Conduit Connector
• Application: For externally threaded connector provides a tight seal against oil, fumes or moisture at the knockout opening
• Standard & Approvals: UL E13938 Listed, CSA Certified, RoHS Complaint
