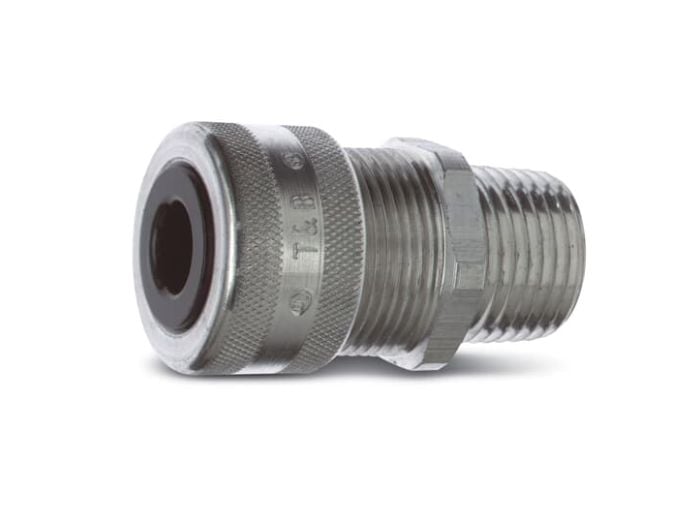

T&B 2922AL 1/2 .5-.75 Cord Conn

Product Description

The T&B 2922AL flexible cord connector is a straight type with a 1/2 inch thread size. Constructed with a copper-free aluminum body, gland nut, and grip, it also features a thermoplastic rubber bushing and nylon grip ring. It accommodates cord sizes from 0.5 to 0.75 inches and is suitable for dry, hazardous, and wet locations.

• Flexible Cord Connector
• Corrosion Resistant Construction
• Suitable for Dry/Hazardous/Wet Locations

Product Highlights

This cord connector features a copper-free aluminum body and is UL and CSA approved.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 2922AL

Technical Specifications

• Type: Straight
• Thread Size: 1/2 Inch
• Material: Copper-Free Aluminum Body/Gland Nut/Grip, Thermoplastic Rubber Bushing, Nylon Grip Ring
• Cord Size: 0.5 to 0.75 Inch
• Size: 1-5/16 Inch Dia
• Approval: UL, CSA
• Application: Dry/Hazardous/Wet Location
• Construction Feature: Corrosion Resistant
• Manufacturer Part Number: 2922AL
• Manufacturer: Thomas & Betts
• Product Series: Ranger
• Description: Liquidtight Strain Relief Connector, 1/2 Inch, Straight, Cord Range 0.500 to 0.750 Inch, Throat Diameter 9/16 Inch, Aluminum Body, Glandnut, and Grip, Rubber Bushing
• Conduit/Cable Type: Flexible Cord, Non-Metallic Sheathed Cable
• Connection Type: Compression
• Angle: Straight
• Trade Size: 1/2 "
• Hub Size: 1/2 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Indoor, Outdoor
• Hazardous Location: No
