T&B 2707 1-1/2 1.390-1.650 Cord Connector

Product Description

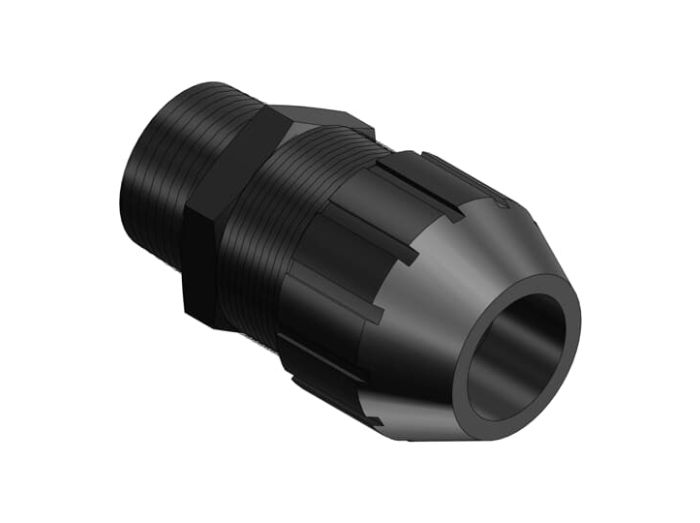

The T&B 2707 is a flexible cord/cable connector with a straight type. Constructed with a molded black nylon body, thermoplastic gland and segmented chuck, and a molded neoprene bushing. It is suitable for hazardous locations and provides liquidtight, strain relief, and corrosion-resistant features. The cord size ranges from 1.39 to 1.65 inches.

• Flexible Cord/Cable Connector
• Liquidtight, Strain Relief, Corrosion Resistant
• Hazardous Location Application

Product Highlights

This cord connector ensures a secure and reliable connection for flexible cords in demanding environments.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 2707
• Country of Origin: US

Technical Specifications

• Type: Straight
• Thread Size: 1-1/4 Inch
• Material: Molded Black Nylon Body, Molded Thermoplastic Gland and Segmented Chuck, Molded Neoprene Bushing
• Cord Size: 1.39 to 1.65 Inch
• Size: 2.95 Inch Dia x 4.3 Inch L
• Approval: UL, CSA
• Application: Hazardous Location
• Construction Feature: Liquidtight, Strain Relief, Corrosion Resistant
• Applicable Standard: Federal Specification A-A-50552, A-A-50553, WC-586
• Operating Temperature: -34 to 105 Deg C
• Trade Size: 1-1/2 Inch
• Temperature Rating: -34 to 105 deg C
• Thread Type: NPT
• Brand: ABB
• Cable Openings: 1.39 to 1.65 in
• Cable Type: SV/SO
• Connection Type: Compression
• Manufacturer Name: ABB
• Product Series: Non-Metallic Liquidtight Cord Connectors
• Family Series: Thomas & Betts Fittings, Non-Metallic Liquidtight Cord Connectors Series
• Conduit/Cable Type: Flexible Cord, Non-Metallic Sheathed Cable
• Angle: Straight
• Hub Size: 1-1/2 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Non-Metallic
• Protection Rating: Indoor, Outdoor
• Hazardous Location: No
