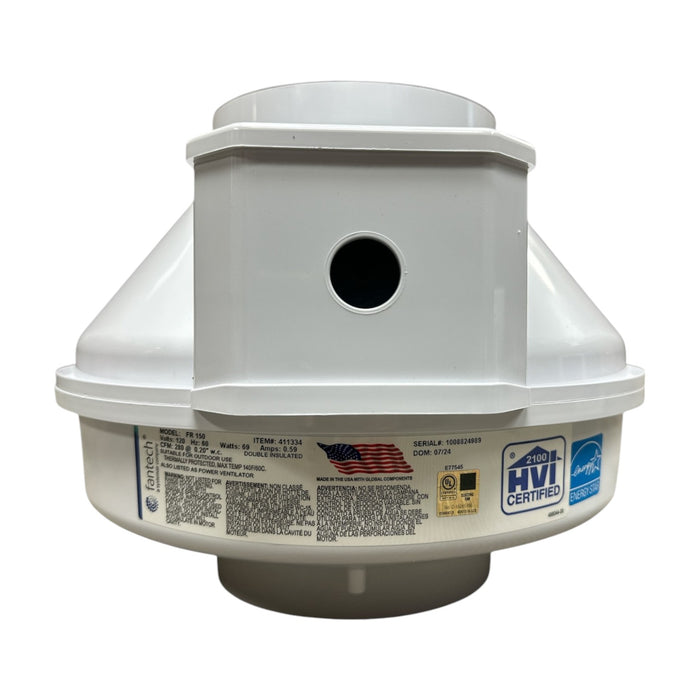

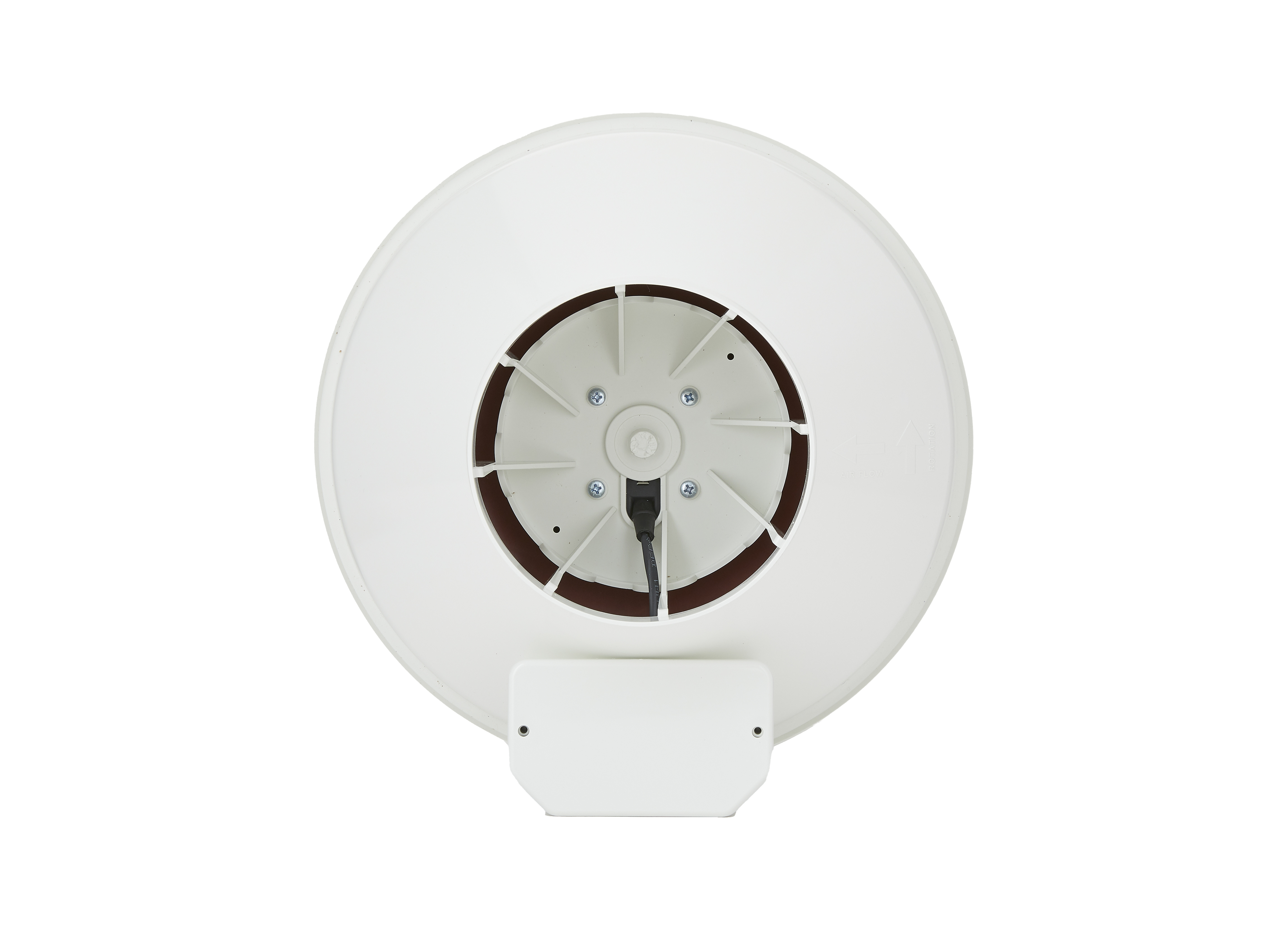

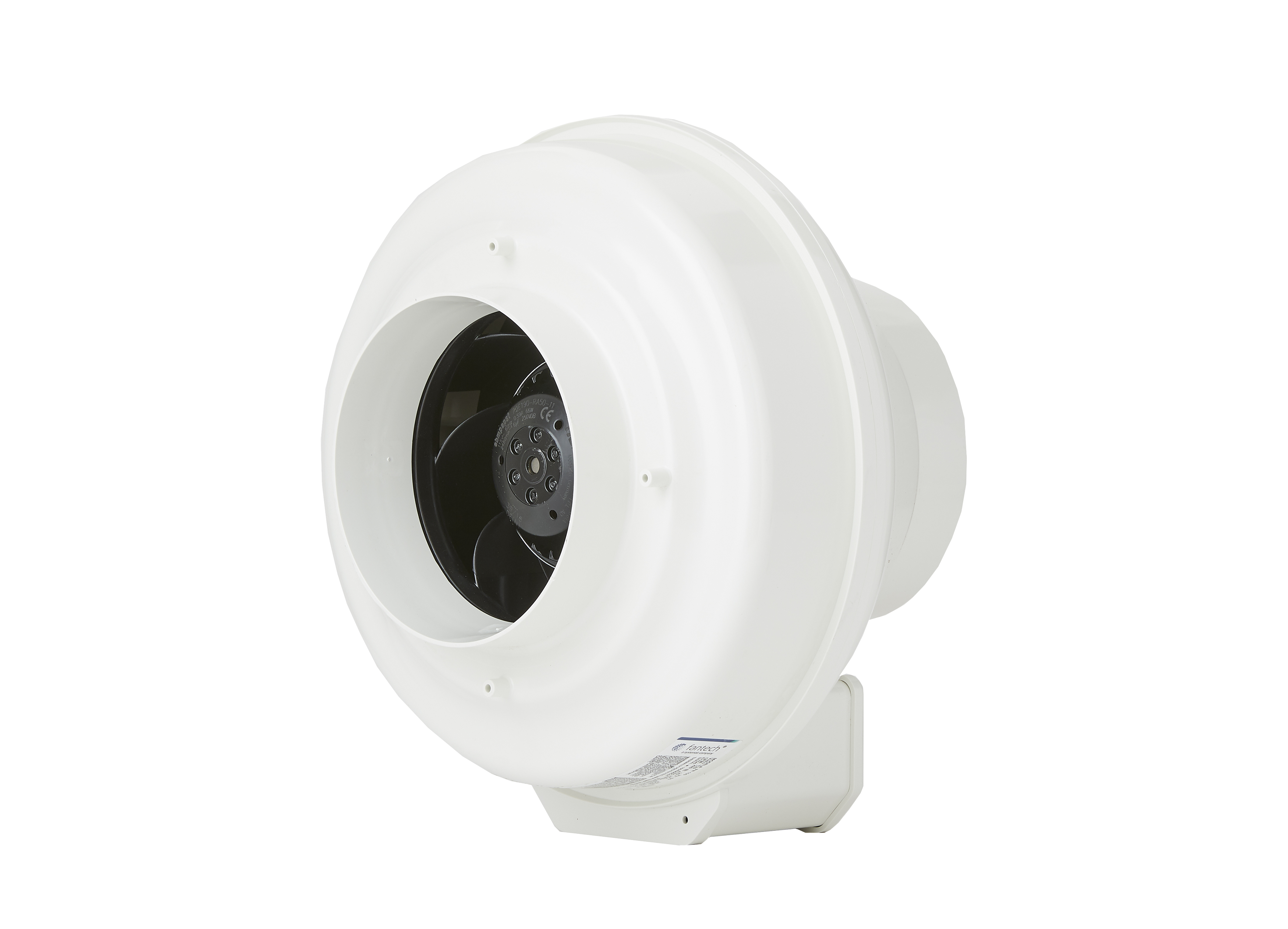

SYSTEMAIR 411334 SYSTEMAIR FR 150 Centrifugal Inline Fan

Product Description

The SYSTEMAIR FR 150 Centrifugal Inline Fan with MPN 411334 is built for efficient air movement in various settings. It is suitable for both supply and exhaust ventilation in residential and commercial buildings. The fan is constructed with corrosion-resistant and heat-resistant materials, making it suitable for indoor and outdoor setups.

• Durable, leak-free design promotes low maintenance.
• Equipped with built-in thermal overload protection.
• Designed to operate in air stream temperatures up to 140 °F.

Product Highlights

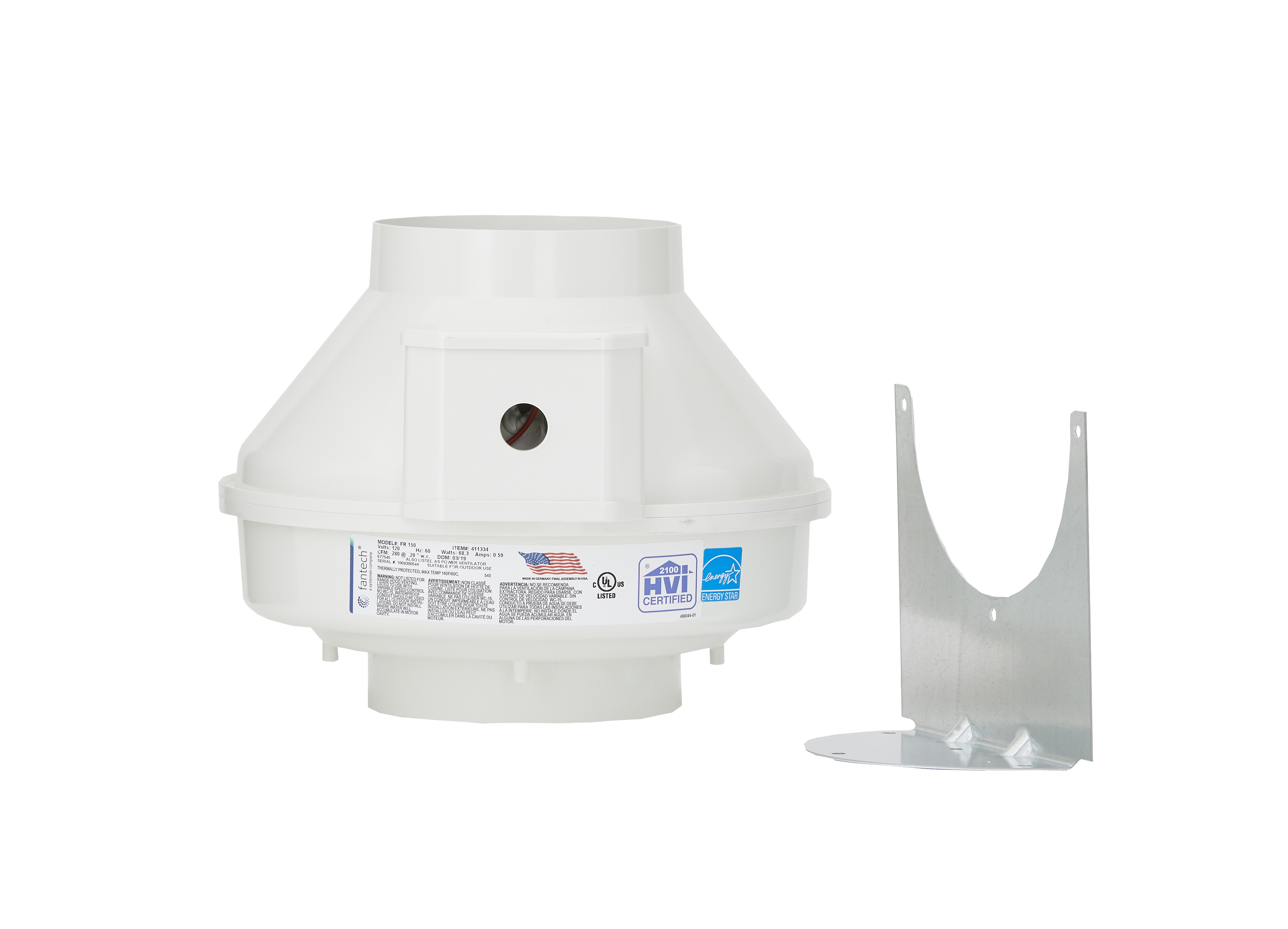

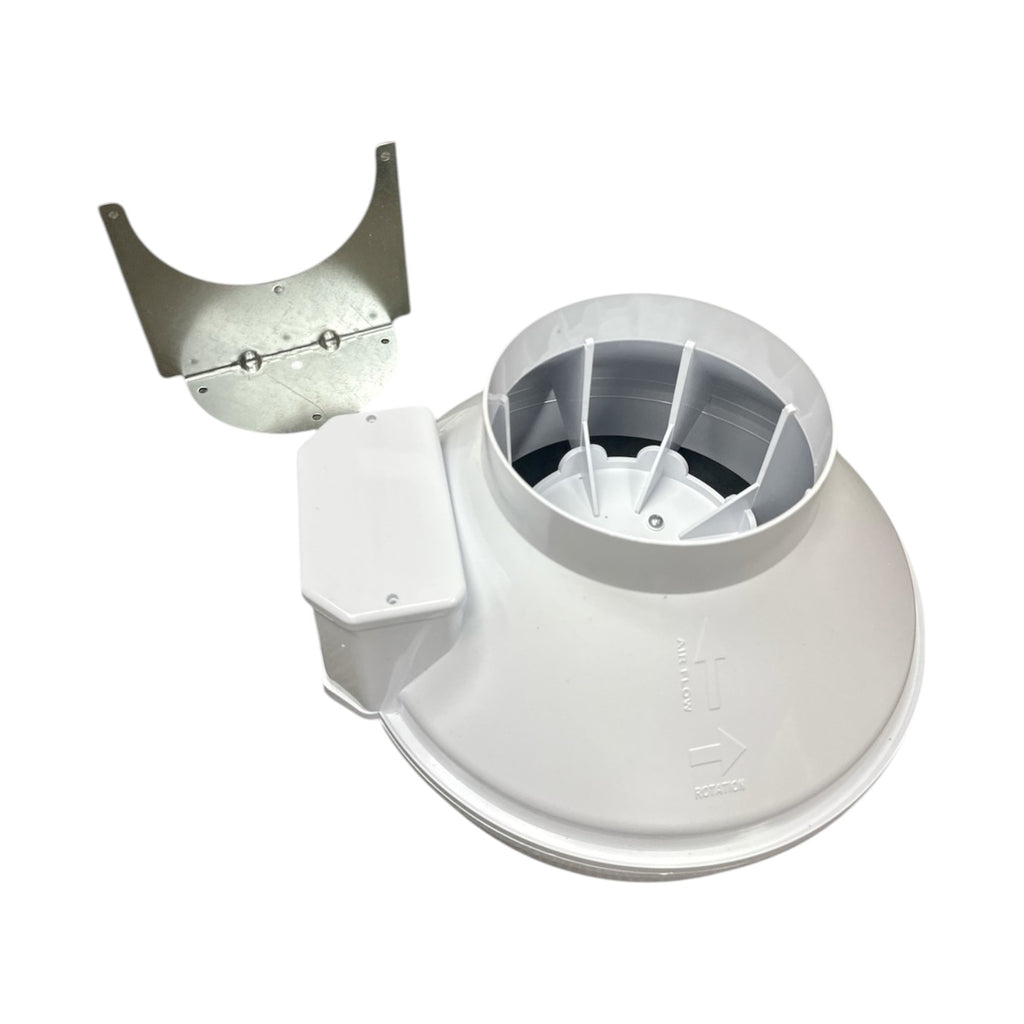

This fan is easy to install with included mounting brackets and hardware. Its motor features permanently sealed and self-lubricating bearings, ensuring reliable operation.

Product Information

Standard Information

• Brand: SYSTEMAIR
• MPN: 411334

Technical Specifications

• Voltage (nominal): 120 V
• Frequency: 60 Hz
• Phases: 1~
• Input Power: 79 W
• Input Current: 0.651 A
• Impeller Speed: 2,900 rpm
• Air Flow: max 316 cfm
• Operating Temperature: max 140 °F
• Enclosure Class, Motor: IP44
• Insulation Class: F
• Duct Dimension; Circular, Inlet: 6 in.
• Duct Dimension; Circular, Outlet: 6 in.
• Weight: 6 lb
• Duct Connection Type: Circular
• Motor Type: AC
• Material: Plastic
• Static Pressure (In. Wg.): 0.20
• Rated Airflow (CFM): 280
• Rated Power (Watts): 67
