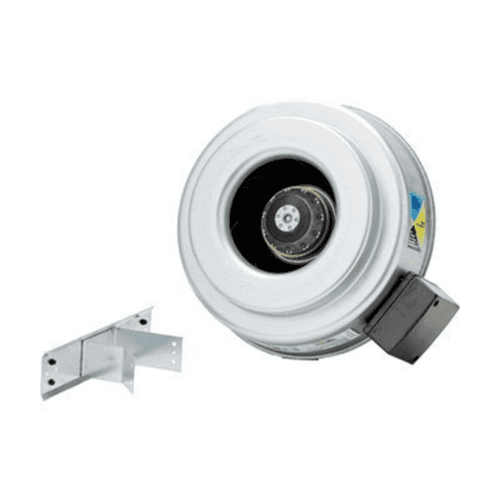

Systemair 40410 Systemair FG-10 Inline Duct Fan

Product Description

The Systemair FG-10 is a ten-inch diameter inline duct fan designed for various ventilation needs in commercial and residential settings. This centrifugal fan is suitable for both exhaust and supply air applications. Its two-piece stamped galvanized metal casing ensures durability and features an airtight seal to prevent air leakage. The motor of the FG-10 is strategically placed within the airflow for efficient heat dissipation. Its permanently sealed and self-lubricating bearings enhance longevity and performance.

• Designed for indoor installations.
• Equipped with thermal overload protection that automatically resets.
• Mountable at any angle to fit various ductwork configurations.

Product Highlights

This inline duct fan operates quietly, providing reliable airflow for ventilation systems.

Product Information

Standard Information

• Brand: Systemair
• MPN: 40410

Technical Specifications

• Voltage (nominal): 120V
• Frequency: 60Hz
• Phases: 1~
• Input Power: 133W
• Input Current: 1.23A
• Impeller Speed: 3,082rpm
• Air Flow Max: 519cfm
• Max Temperature of Transported Air: 140°F
• Enclosure Class, Motor: IP44
• Insulation Class: B
• Weight: 8.9 lb
• Duct Connection Type: Circular
