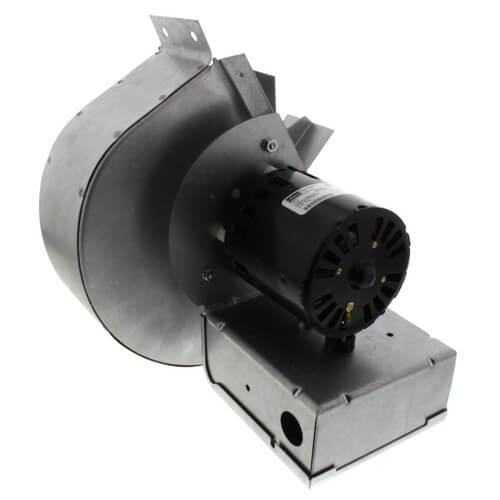

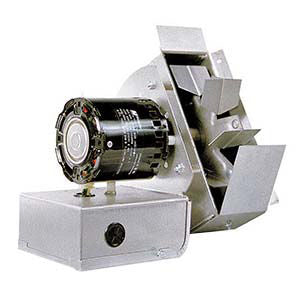

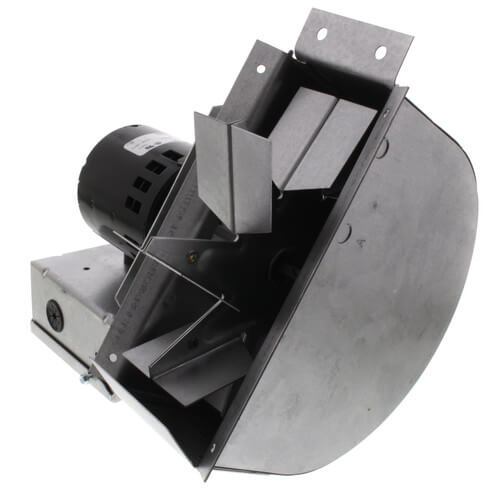

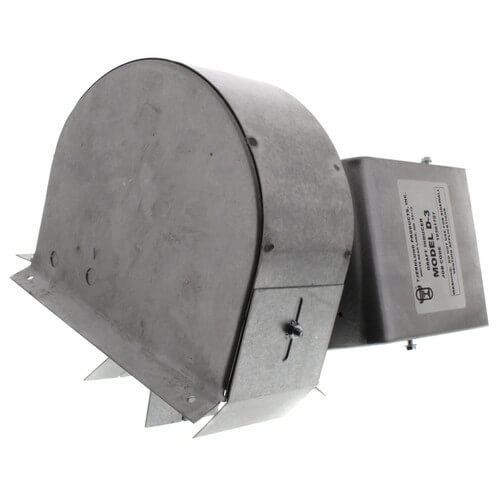

Tjernlund D-3 Inline Draft Inducer 1/20 hp 115 V 169 cfm

Product Description

The Tjernlund D-3 Inline Draft Inducer is a reliable solution for improving ventilation in heating systems. This inducer operates at one hundred fifteen volts and generates a flow rate of one hundred sixty-nine cubic feet per minute. The unit is designed for easy installation in various applications including boilers, furnaces, and water heaters.

• Voltage: 115 V
• Flow Rate: 169 cfm
• Power Rating: 1/20 hp

Product Highlights

This draft inducer features a durable aluminized steel housing and operates at a speed of one thousand five hundred fifty RPM. The vari-draft control allows for adjustments to meet specific needs, ensuring effective venting regardless of chimney size or pressure variations.

Product Information

Standard Information

• Brand: Tjernlund Products
• Part Number: D-3

Technical Specifications

• Voltage Rating: 115 V
• Power Rating: 1/20 hp
• Speed: 1550 RPM
• Flow Rate: 169 cfm
• Amperage Rating: 0.96 A
• Frequency Rating: 60 Hz
• Housing Material: Aluminized Steel
• Dimensions: 9-1/2 inches x 9-1/8 inches x 7 inches
