Sylvania M100MULTI4PSKIT Metal Halide Ballast Kit

Product Description

The Sylvania M100MULTI4PSKIT is a metal halide ballast kit for 100-watt M90 bulbs. It works with a quad-tap input voltage range of 120 to 277 volts and operates at a frequency of sixty hertz. The kit includes a ballast, capacitor, and mounting bracket to ensure easy installation.

• Compatible with 100W M90 metal halide bulbs.
• Quad-tap input voltage: 120/208/240/277V.

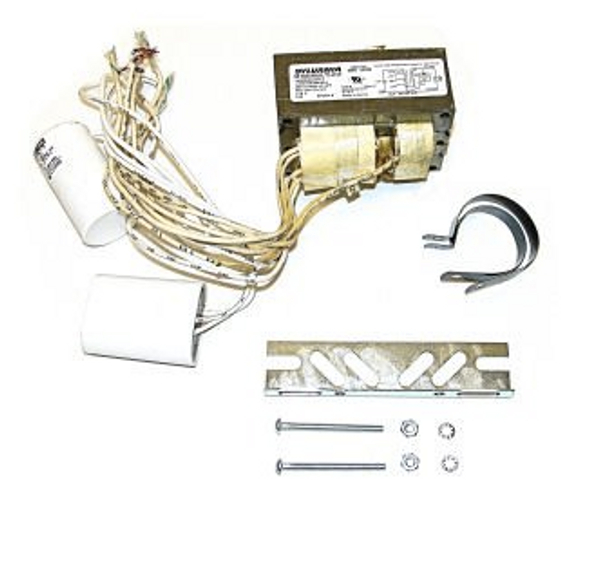

• Includes ballast, capacitor, and mounting bracket.

Product Highlights

This ballast kit supports pulse start lamps and utilizes an HX-HPF circuit type, making it suitable for various lighting needs.

Product Information

Standard Information

• Manufacturer Part Number: M100MULTI4PSKIT
• ANSI Code: M90

Technical Specifications

• Wattage: 100
• Input Voltage: 120/208/240/277
• Frequency: 60 Hz
• Circuit Type: HX-HPF
• Power Factor: 90%
• Insulation Class: 180°
• Minimum Starting Temp: -20°F, -30°C
• Start Method: Pulse Start
• Light Technology: HID
• Fixture Type: HID Metal Halide Pulse Start
• Lamp: 100W M90
• Dimensions: 3.5 L x 2.44 W x 3.10 across coils
