Surge Protection 96419 Non-Fused A/C Disconnect with RSH-50 Surge Protective Device

Product Description

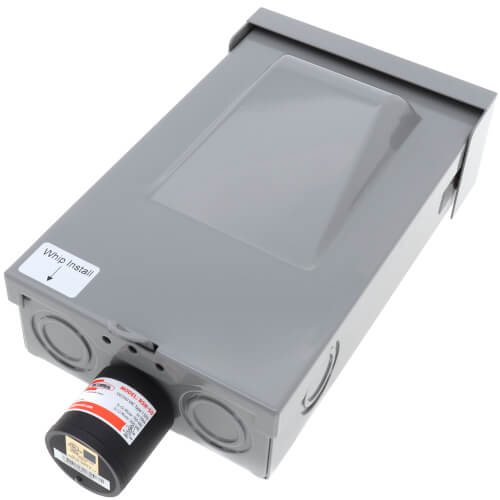

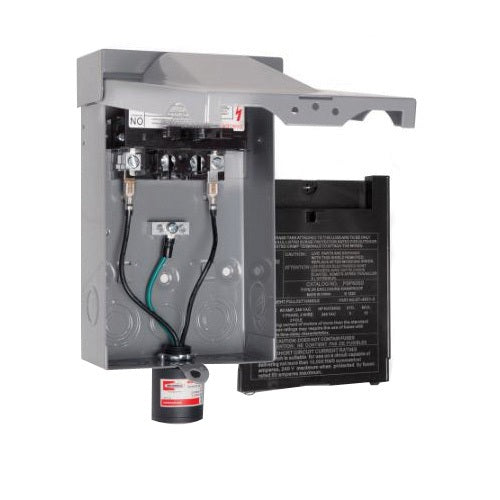

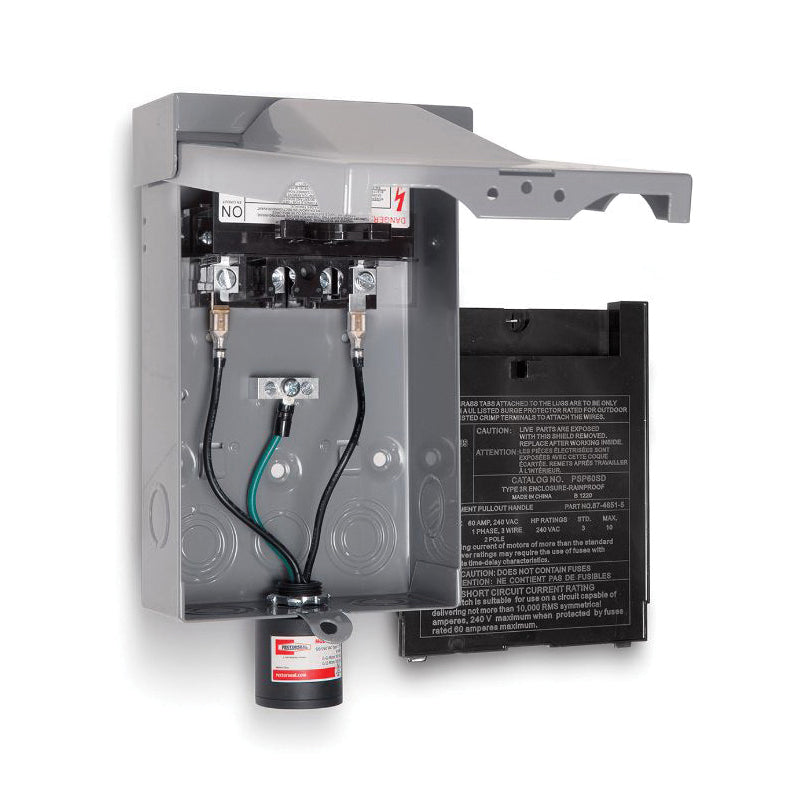

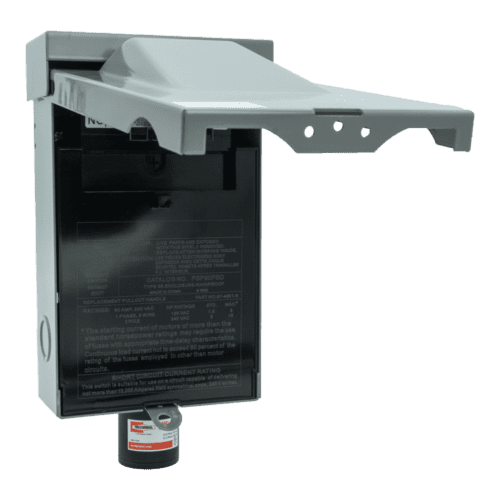

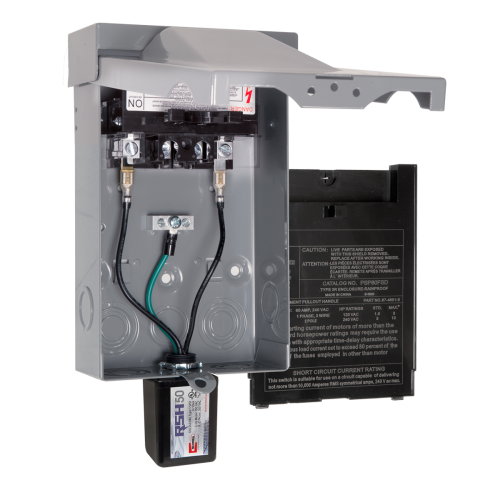

The Surge Protection 96419 is a non-fused disconnect box with an installed RSH-50 surge protective device. This device is suitable for both residential and commercial applications. It safeguards single-phase, 120/240V air conditioning units, heat pumps, and ductless mini-split systems against transient over-voltage and surges from natural events.

• Includes a non-fused disconnect box.
• Features advanced gas discharge tube technology.
• Designed for reliable surge protection in 120/240V systems.

Product Highlights

The RSH-50 surge protector integrates into the disconnect, ensuring compliance with electrical codes. A green LED status indicator shows whether the device is functioning properly.

Product Information

Standard Information

• Brand: RectorSeal
• Product Type: Disconnect Box Surge Protector

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 60 A
• Type: Non-Fused
• Opening: Top
• Phase: 1 ph
• Short Circuit Current Rating: 200 kA
• Discharge Current: 50 kA
• Suitable For Use With: Outside Condensing Units and Indoor Air Handlers
• Enclosure Type: NEMA 4
• Frequency Rating: 60 Hz
• Material: Steel
• Standards: C(UL)US, UL (Canada and US), UL 1449
• Application: Surge Protection
• Color: Gray
