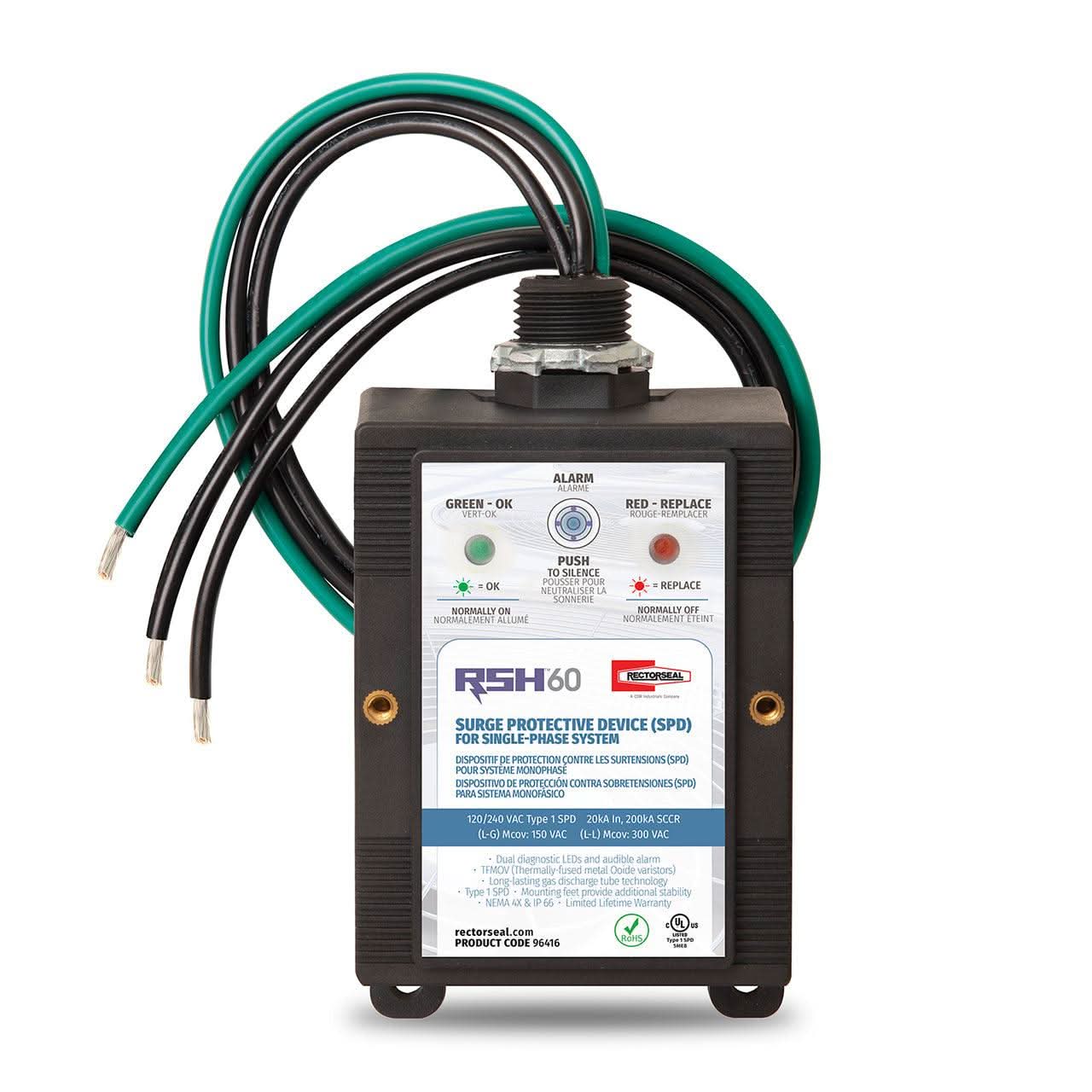

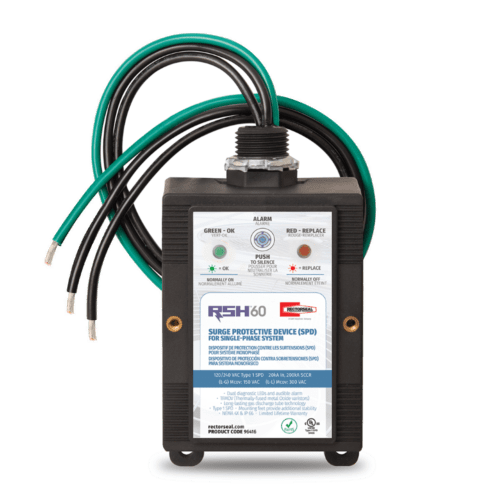

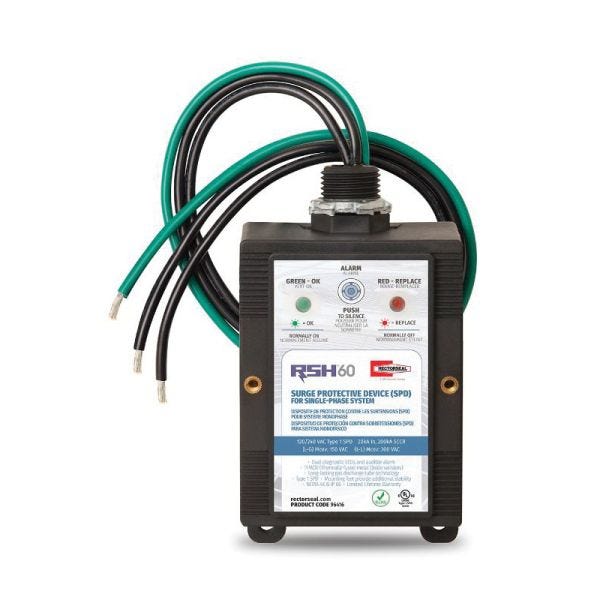

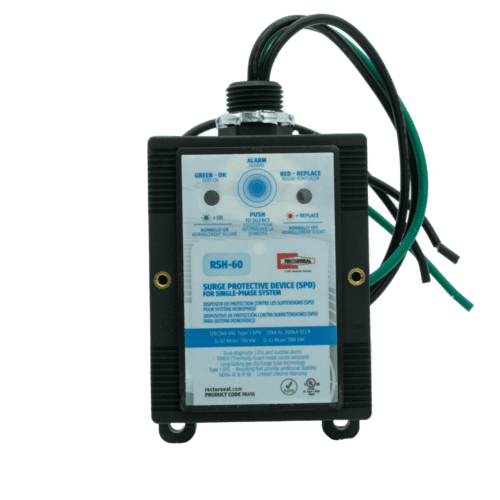

SURGE PROTECTION 96416 (RSH-60) Surge Protective Device

Product Description

The SURGE PROTECTION 96416 (RSH-60) is a surge protective device designed for single-phase electrical systems. It protects air conditioning units, heat pumps, ductless mini-split systems, and other appliances from voltage surges. The device utilizes Gas Discharge Tube (GDT) and Thermally Fused Metal Oxide Varistor (TFMOV) technologies to ensure reliable protection against transient over-voltage and surges caused by lightning or other natural events.

• Utilizes Gas Discharge Tube (GDT) technology.
• Features Thermally Fused Metal Oxide Varistor (TFMOV).
• NEMA 4X rated enclosure for various installation scenarios.

Product Highlights

This device is suitable for both residential and commercial applications. It comes with a weather-rated enclosure to withstand outdoor conditions. The surge protective device is also equipped with indicator lights to show protection status.

Product Information

Standard Information

• Brand: Surge Protection
• MPN: 96416 (RSH-60)

Technical Specifications

• Product Type: Surge Protective Device (SPD)
• System Type: Single-Phase, 120/240V
• Input Voltage: 120/240 VAC
• Short Circuit Current Rating: 200 kA
• Nominal Discharge Current: 60 kA
• Maximum Surge Current: 50 kA
• Protection Technology: Gas Discharge Tube (GDT) & TFMOV
• Enclosure Rating: NEMA 4X and IP 66
• Indicator Lights: Green LED for Protection Status
• Phase: 1
• Certifications: cUL/UL Listed, RoHS Compliant
• Weight: 1.10 lb
• Warranty: Limited Lifetime Warranty
• UPC: 021449964166
