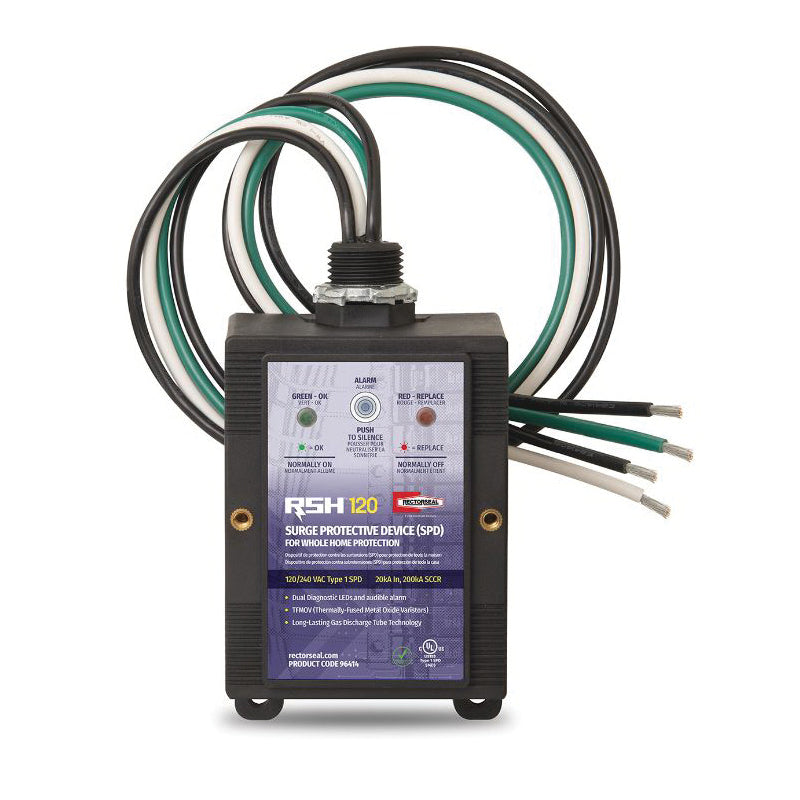

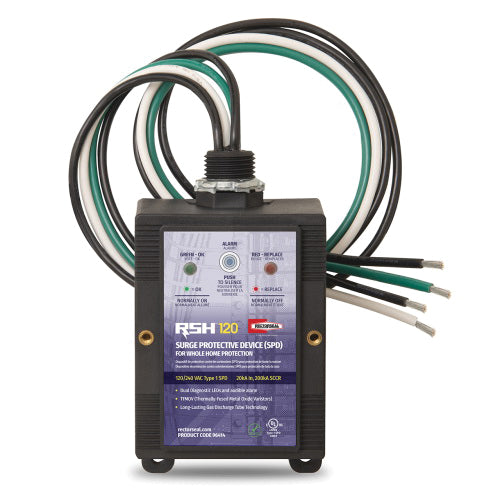

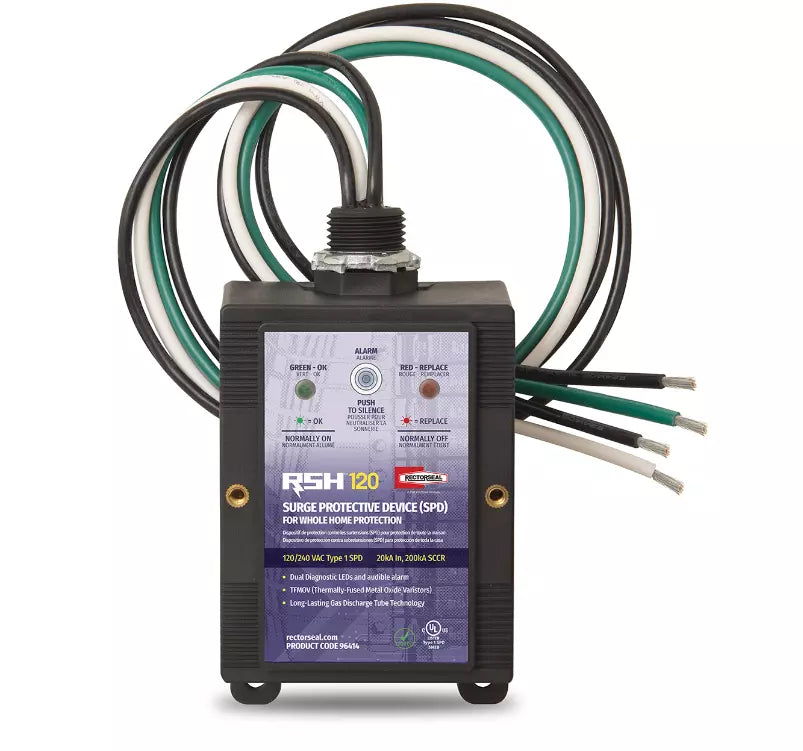

Surge Protection 96414 Whole House Surge Protector

Product Description

The Surge Protection 96414 is a whole-home surge protector designed for installation at the breaker panel. This model utilizes gas discharge tube technology and thermally fused metal oxide varistors (TMOVs) to safeguard your electrical systems.

• Protects electrical appliances from surges and spikes.
• Features gas discharge tube technology and TMOVs for enhanced protection.
• NEMA 4X and IP66 rated for outdoor use.

Product Highlights

This surge protector is ideal for preventing damage from transient over-voltage and natural-cause surges. Its Type 1 designation indicates suitability for whole-house installations.

Product Information

Standard Information

• Brand: Surge Protection
• MPN: 96414

Technical Specifications

• Voltage: 120/240 VAC
• Short Circuit Current Rating: 200 kA
• Discharge Current: 120 kA
• Phase: 1 ph
• Type: Type 1
• Suitable For Use With: Breaker Box
• Dimensions: 10.00 inches x 10.00 inches x 10.00 inches
• Weight: 5.00 lb
• Application: Designed to protect the entire home from transient over-voltage and natural-cause surges.
• Certificate: cUL/UL Listed, RoHS Compliant
