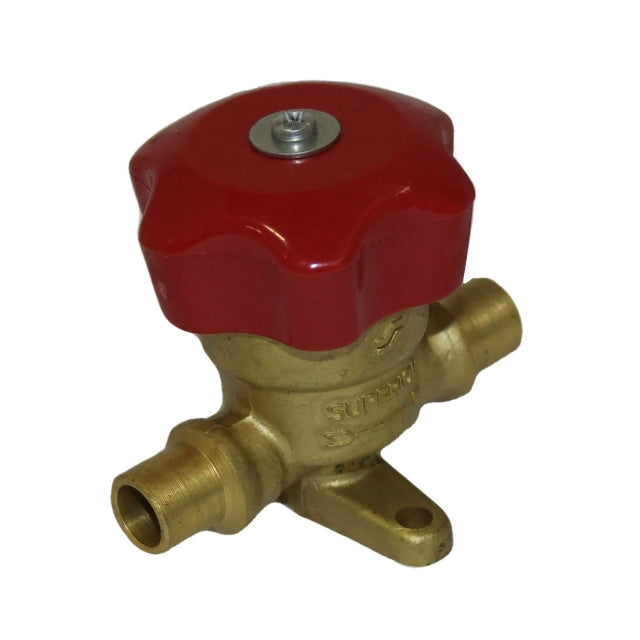

SUPERIOR VALVE 214-6S 3/8 ODF VALVE

Product Description

The Superior Valve 214-6S is designed for HVAC and refrigeration applications. This two-way diaphragm valve features a forged brass body and a straight-through design. It allows for efficient handling of high-pressure and high-temperature liquids and gases.

• Forged brass construction ensures durability.
• Temperature rating of up to 250 degrees Fahrenheit.
• Compatible with various media, including liquid and hot gas.

Product Highlights

This valve is suitable for installation in a variety of systems, offering easy integration without disassembly.

Product Information

Standard Information

• Type: 2-Way Diaphragm
• Mounting Stud: Port Connection - 3/4 Inch x 3/4 Inch

Technical Specifications

• Valve Position: NC
• Temperature Rating: 250 Deg F
• Pressure Rating: 500 PSIG (Maximum Working Pressure)
• Pressure Rating: 300 PSIG (Maximum Operating Pressure Differential)
• Media Handled: Liquid, Suction/Hot Gas
• Applicable Standard: UL, CUL, CRN
• Connection Size: 7/8 Inch ODF Extended End x 7/8 Inch ODF Extended End
• Excludes Coil
