Superior Refrigeration 591WA-11ST 1-1/8 ODS Brass Ball Valve

Product Description

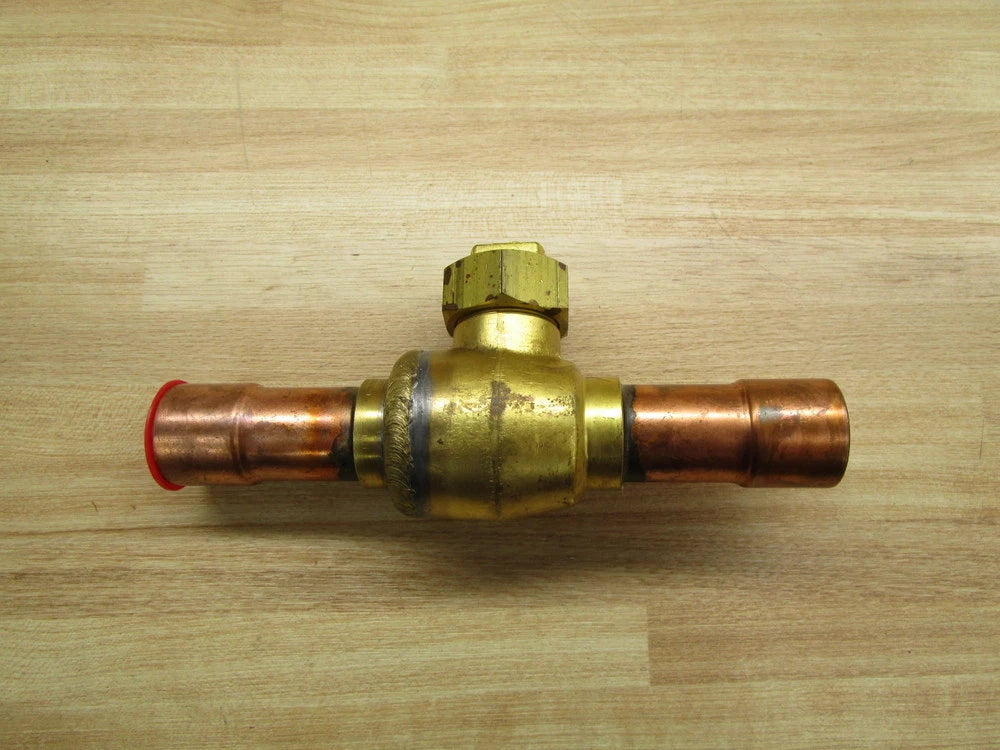

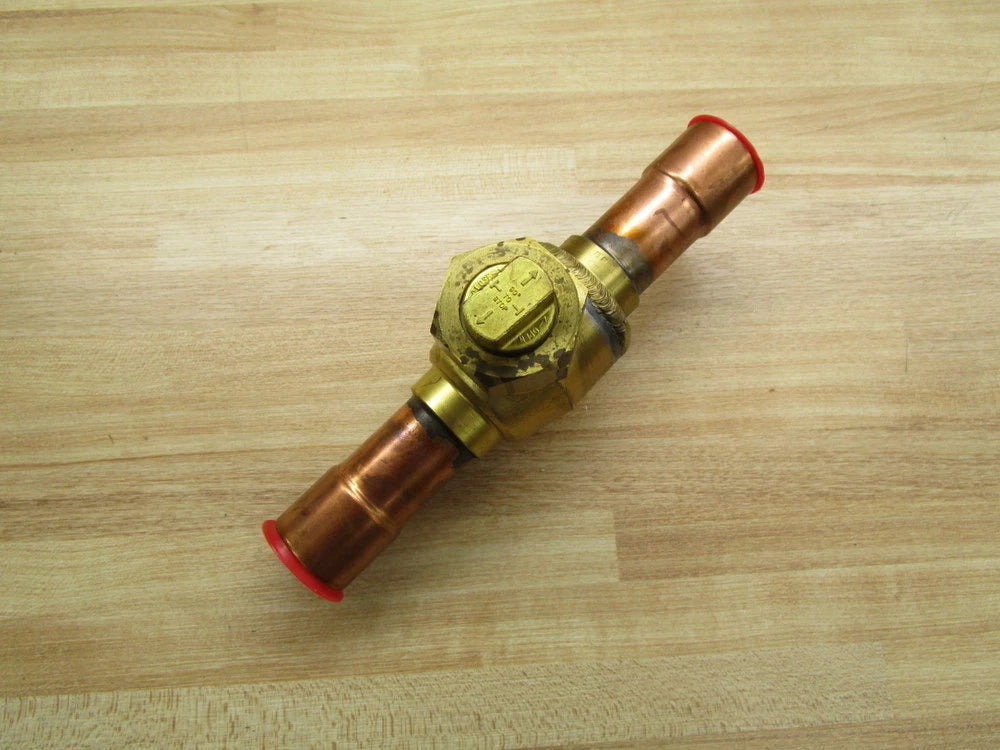

The Superior Refrigeration 591WA-11ST is a robust brass ball valve crafted for refrigeration systems. It features a forged brass body with copper tube extensions for strength and durability. The valve includes full-size ports designed for unrestricted flow and incorporates dual Teflon ball seals to enhance sealing performance. This valve is non-directional, enabling installation in any position, which simplifies the setup process.

• Constructed with a forged brass body and copper tube extensions.
• Operates effectively within a temperature range of negative forty degrees Fahrenheit to three hundred twenty-five degrees Fahrenheit.
• Compatible with CO2, CFC, HFC, and HCFC refrigerants.

Product Highlights

Trust this non-directional flow valve for reliable operation in refrigeration applications.

Product Information

Standard Information

• Brand: Superior Refrigeration
• MPN: 591WA-11ST

Technical Specifications

• Body Material: Brass
• Connection Size: 1 1/8 inches
• Connection Type: ODS
• Valve Type: Ball Valve
• Maximum Operating Pressure: 700 PSI
• Operating Temperature Range: -40 degrees Fahrenheit to 325 degrees Fahrenheit
• Seal Material: Teflon
• Port Type: Full
• Ball Port Diameter: 1 inch
• Length: 7.7 inches
• Width: 3.8 inches
• Height: 2.4 inches
• Overall Length: 7.69 inches
• Flow (Cv): 62.0
• Weight: 2.2 lbs
• Approvals: CUL Listed; UL Listed
